CNC210 Operating Manual
44
CNC210-03A-008
X axis motor cover
1
45
GB70-85
Screw M5╳10
4
46
Feed motor
1
47
GB70-85
Screw M4╳14
4
48
GB/T78-2000
Six pyramid end screw M5╳5
1
49
CNC210-03-004
Scraping the crumbs board A
1
50
Synchronous belt 60XL037
1
51
GB70-85
Screw M5╳16
4
52
CNC210-03-008
The motor mounting plate
1
53
GB70-85
Screw M5╳20
4
54
CNC210-03A-004
X axis motor seat
1
55
GB1096-79
Key 3╳10
1

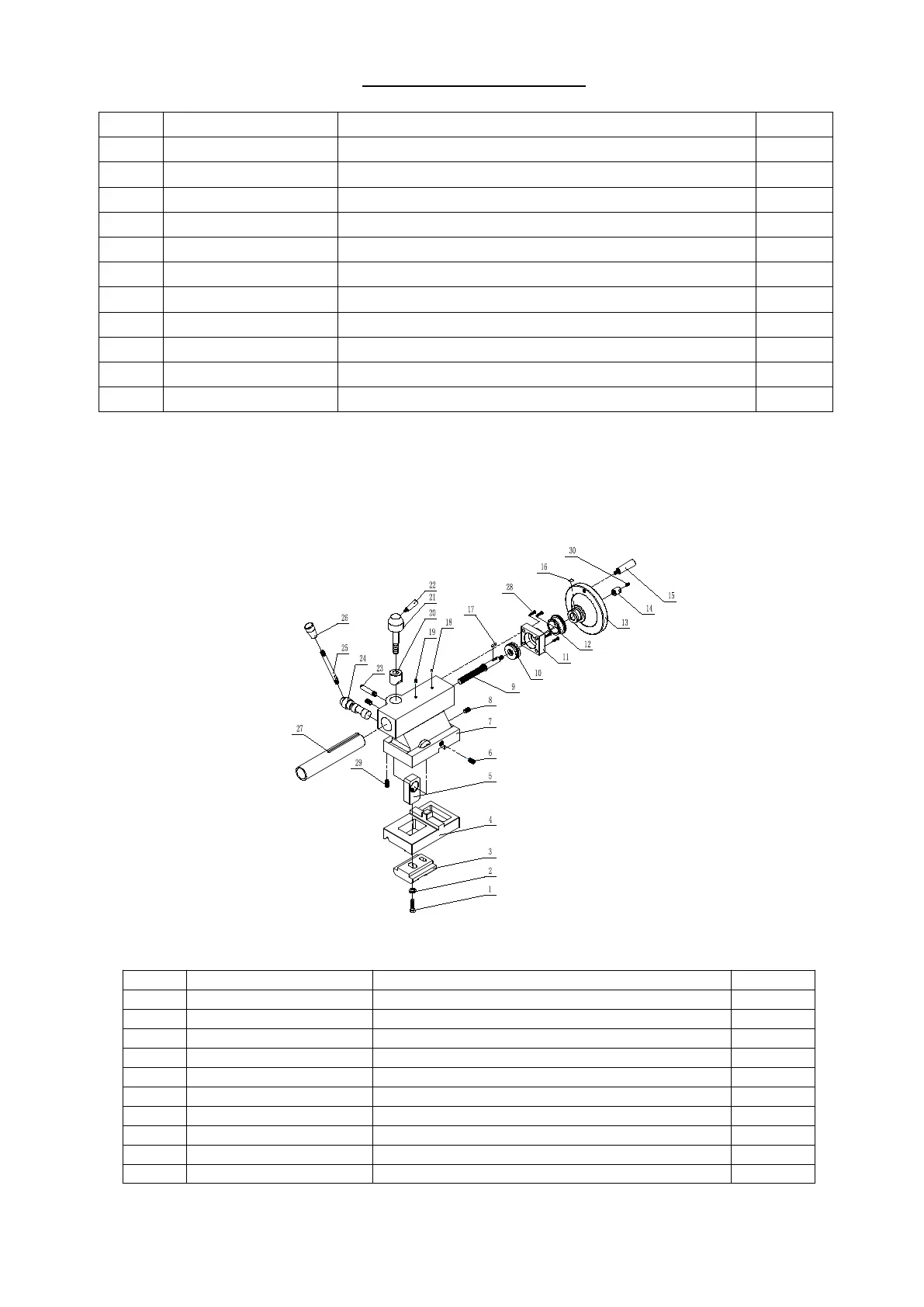

Drawing of tailstock assembly
Parts list
No.
Parts No.
description
Q’ty
1
GB5782-86
Hex bolt M8╳30
1
2
GB97.1-85
Flat washer 8
1
3
WM180V-05A-003
Clamp
1
4
WM180V-05A-002
The tail frame backplane
1
5
WM180V-05A-022
Lock hanging piece
1
6
GB/T77-2000
Allen flat end set screws M8╳20
2
7
WM180V-05A-001
Tailstock body
1
8
GB/T77-2000
Allen flat end set screws M8╳30
1
9
WM180V-05A-008
Lead screw
1
10
GB301-85
thrust ball bearing 51100
1
