Chapter 3 Audio Configuration
Monitoring and Mixing Modes

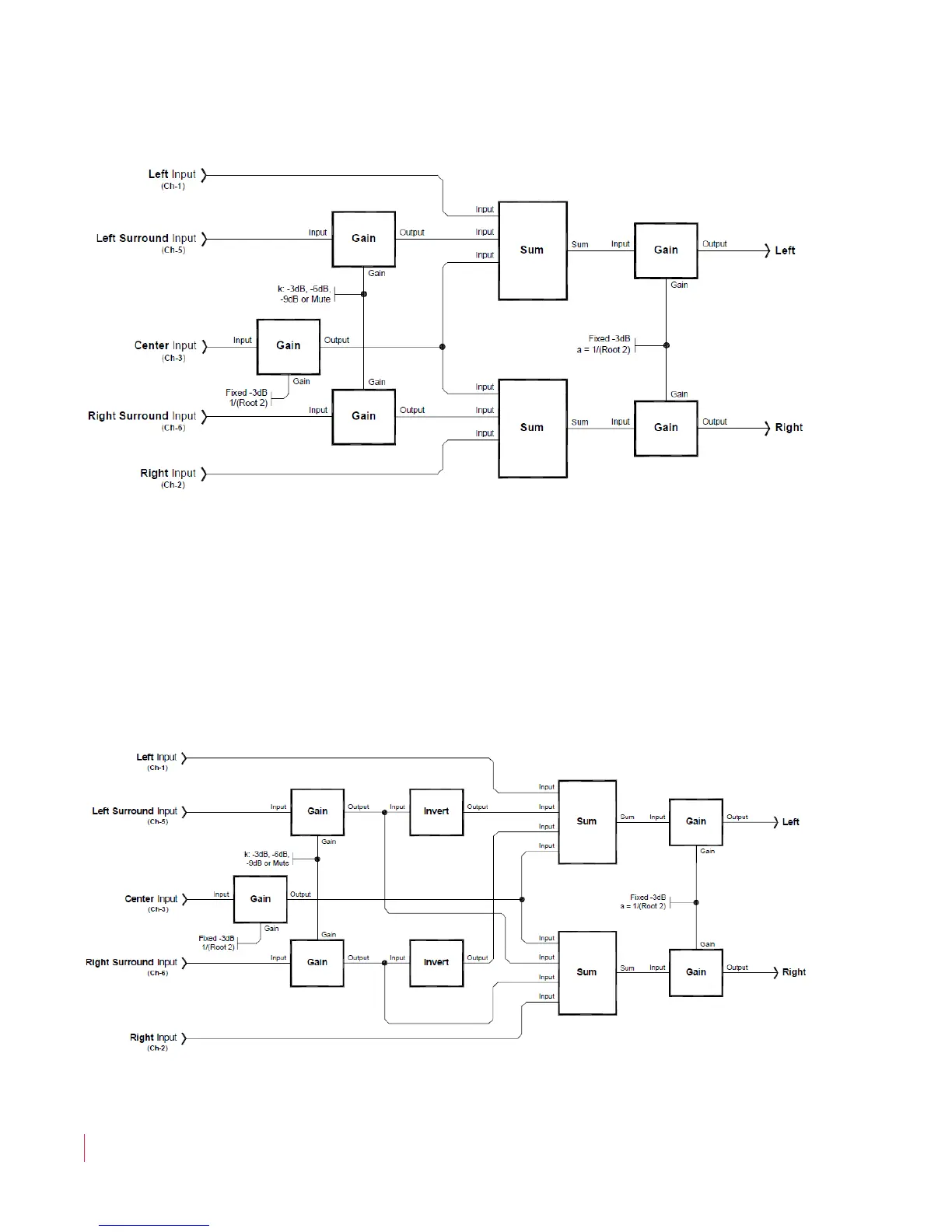

Figure 3–7 DM1 Mix Diagram
• DM2: You can use this downmix to create a two speaker
assign that can be further decoded to multi-channel program
by the use of an external surround decoder. Contribution of
the surround speaker Assign is set by the surround level
entry in the
Setup Menu. DM2 is equivalent to the Japanese
ARIB Set 2 downmix formula. See Figure 3–8 below.
Figure 3–8 DM2 Mix Diagram
