CFL-WRGinstallationlocation The CFL-WRG is designed as an indoor unit and intended solely for ceiling
installation.
The ceiling where the unit will be mounted must be level and sufciently load
bearing (min. 500 kg/m²).
Only install the unit with the standard suspension brackets supplied, as shown
in the illustration.
For the CFL-32, we recommend using the drilled hole in the middle of the
suspension bracket.
The lifting lugs tted to the CFL-32 as standard are intended for lifting and
turning the unit. Never use them for mounting the unit on the ceiling. After use,
the lifting lugs can be removed and the drilled holes sealed with the supplied
blanking plugs.
Never drill holes or insert screws in the ceiling panels, as this may damage the
electric cables under the panels.
The installation location must meet the requirements of VDI 2050.
Provide sufcient space below the unit for maintenance work.
Site the unit in a room that is free from the risk of frost.
Provide a drain connection for discharging any condensate that may be generated.
Please
note

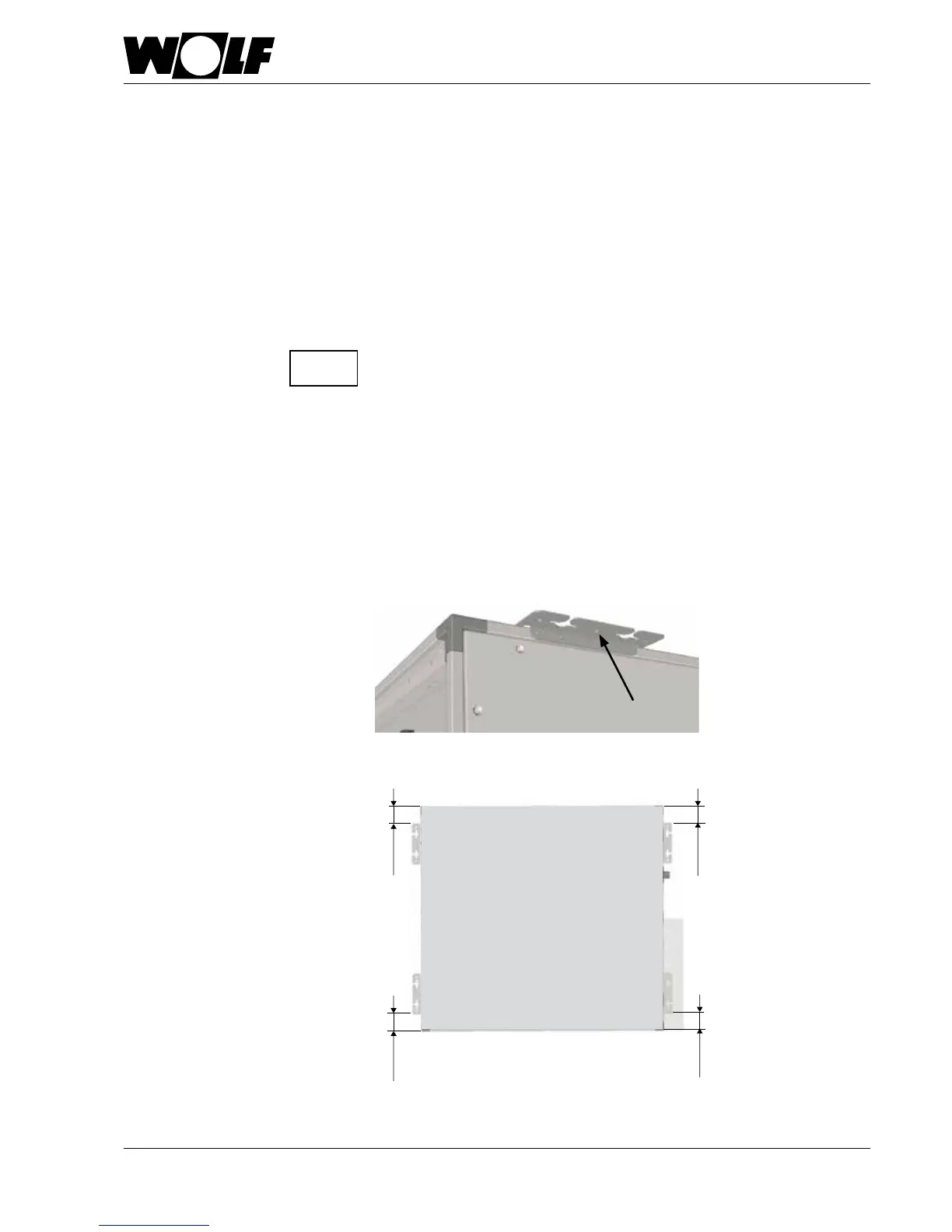

Dimensioning for CFL 10 / 15 / 22 / 32
Suspension bracket for CFL 10 / 15 / 22 / 32
70-15070-150
70-150
70-150
