Wolf CFL-WRG - 4 Unit Layout

73065065_201704
4.Unitlayout

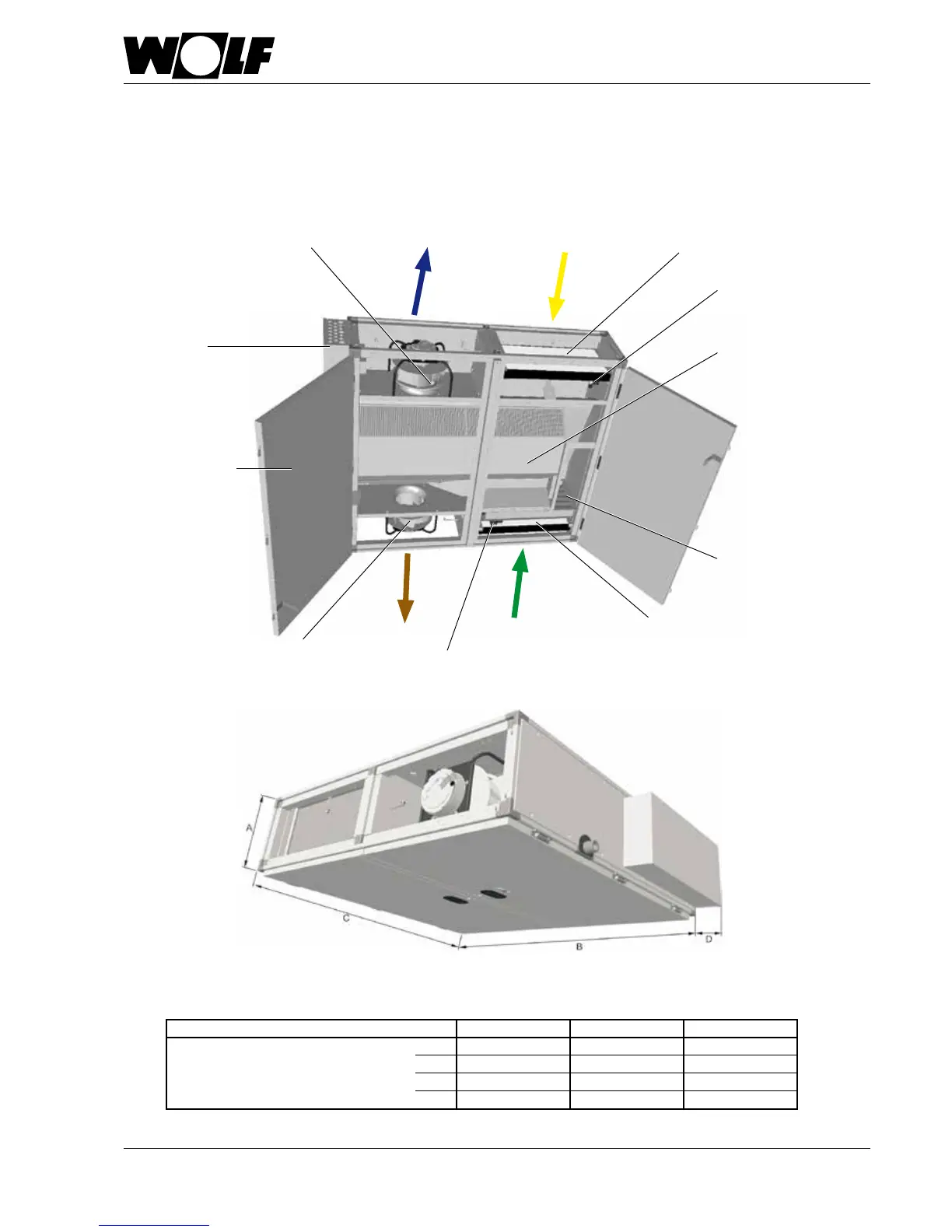

CFL-WRGComfortslimlineventilationunit(CFL10/15/22)
EC fan, supply air
Control unit
Inspection door
EC fan, extract air
Bypass damper
with servomotor
(variable speed)
Countercurrent plate
heat exchanger and
condensate pan
F7 compact lter, outdoor air
M5 compact lter, extract air
Outdoor air
Exhaust air
Extract airSupply air
Operatingside,supplyairright/supplyairleft=mirrorinverted
The illustration shows the unit with the connection side on the right in the supply air direction
(Connection side on the left in the supply air direction is mirror inverted)
Dimensions
Type CFL10-WRG CFL15-WRG CFL22-WRG
Height A mm 367 367 411
Width B mm 1017 1423 1830
Length C mm 1322 1322 1525
Control panel width D mm 115 115 115
Differential pressure
switch, extract air lter
Differential pressure switch, outside air lter
