Wolf CFL-WRG - Unit Layout

8 3065065_201704
Outdoor air
Exhaust air
Extract airSupply air

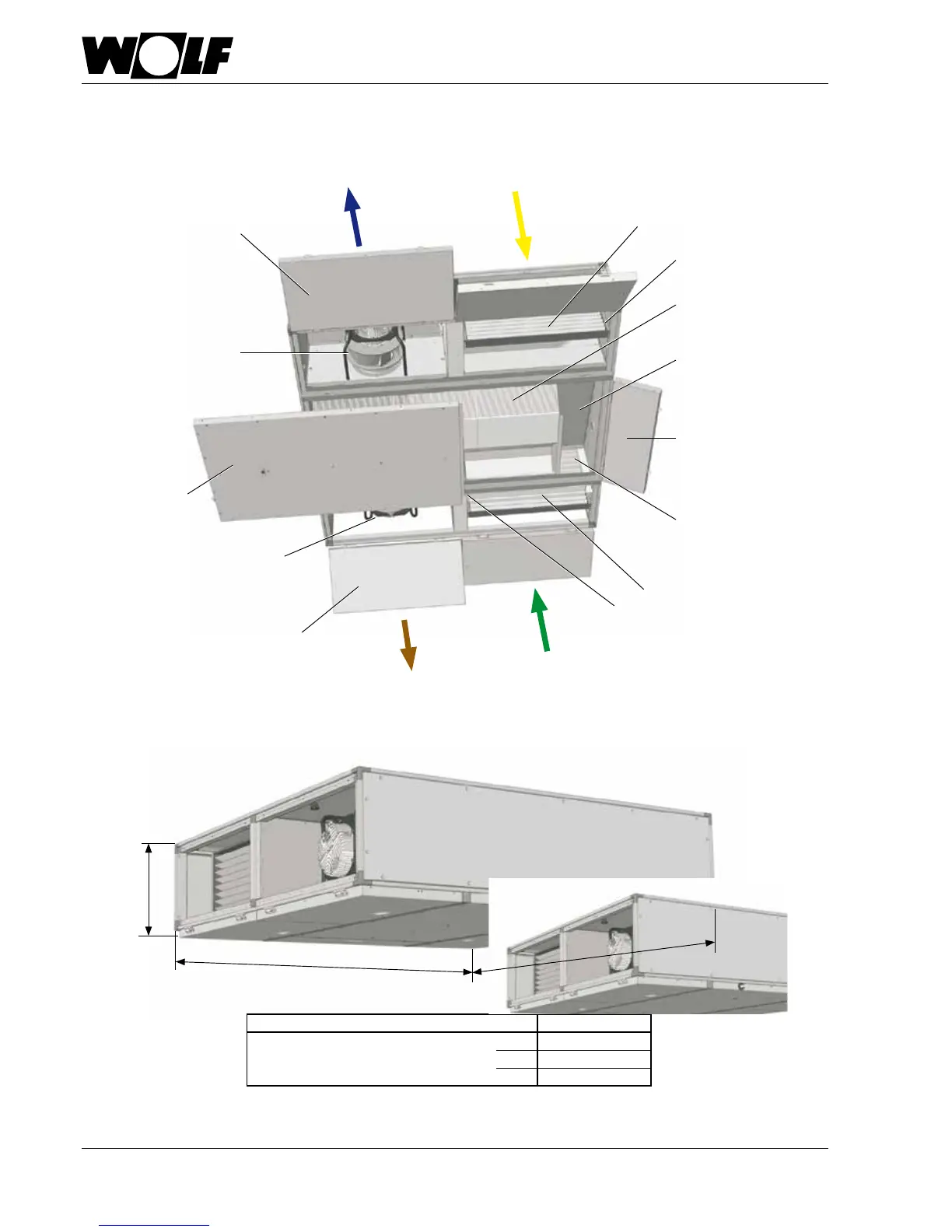

CFL-WRGComfortslimlineventilationunit(CFL32)
Operatingside,supplyairright/supplyairleft=mirrorinverted
4.Unitlayout
Type CFL32-WRG
Height A mm 495
Width B mm 1932
Length C mm 1932
Dimensions
EC fan, supply air
Control unit
EC fan, exhaust air
Bypass damper
with servomotor
(variable speed)
Countercurrent
heat exchanger
F7 compact lter, outdoor air
M5 compact lter, extract air
Inspection door
Inspection door
Bypass
Inspection door
Pan panel
A
B
C
Differential pressure
switch, extract air lter
Differential pressure
switch, outside air lter
