CFL 32
Remove pan
panel with two
persons
2 persons are required for removing the pan panel.

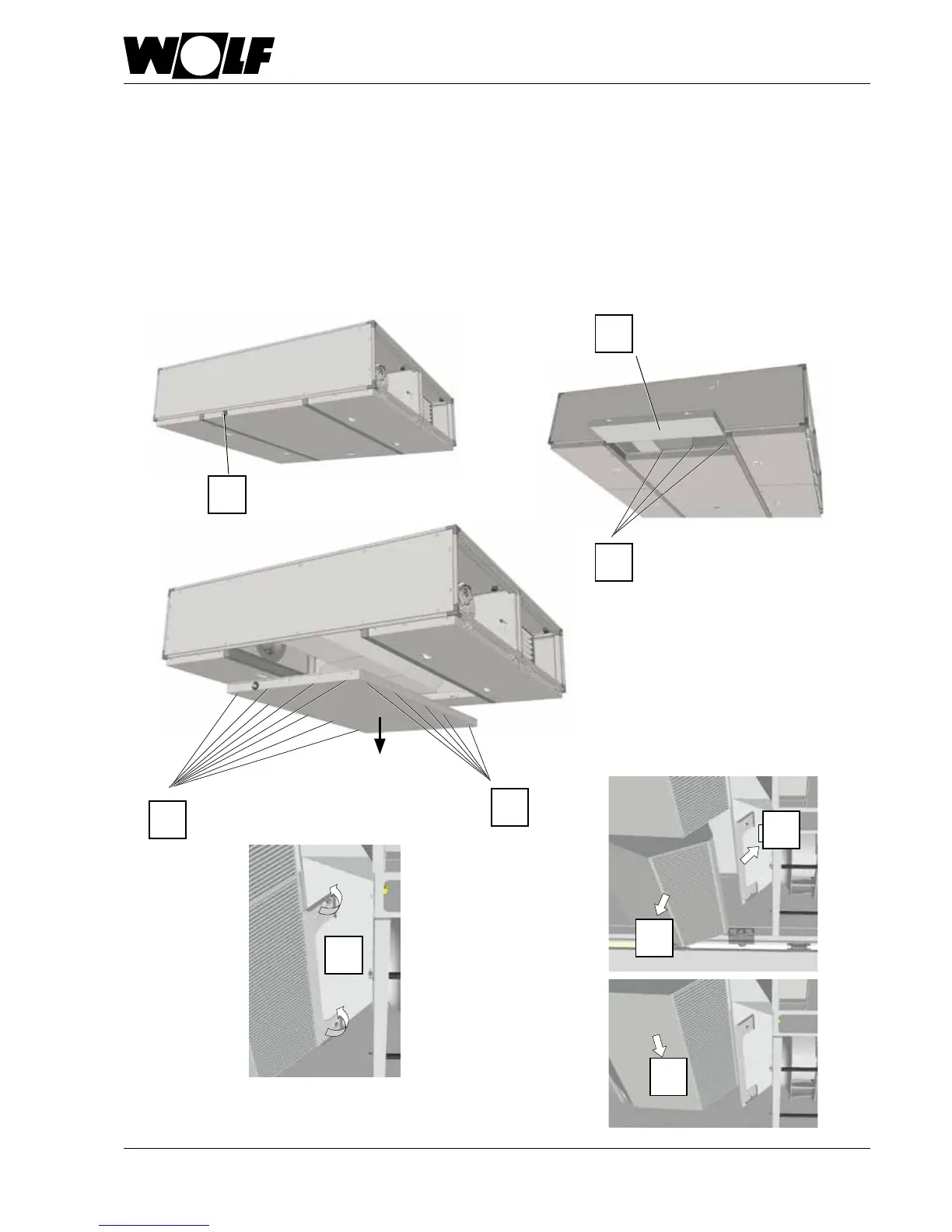

1. Disconnect trap drain connection
2. Open bypass inspection door
3. Remove pan panel connecting screws (3x)
4. Undo screws at side of pan panel and remove pan panel
5. Slightly loosen tensioning bracket screws
6. Push tensioning bracket upwards
7. Remove rst part of countercurrent plate heat exchanger
8. Push further parts along the guide and remove them as well
9. Reassemble in reverse order
