Wolf CSO24 - Installing the Oven

Page 10
CSO24 and CSO30 (SWS #13508346)
Installation Information
2-6
#9001333 - Revision A - August, 2014
INSTALLING THE OVEN
NOTE: Before moving the oven, protect any finished flooring and cabinetry to avoid damage.
1. Move the convection steam oven into position near the installation opening. Remove and discard packing mate-
rials.
2. Carefully place the oven in the opening. Resting the oven on the cabinet base support, slide the unit into the
opening until it is approximately 6" (152) from being fully installed. Guide the power cord through the opening of
the adjacent cabinet or base support as the oven is slid into position. Verify the power cord is not trapped
between the oven and cabinet wall.

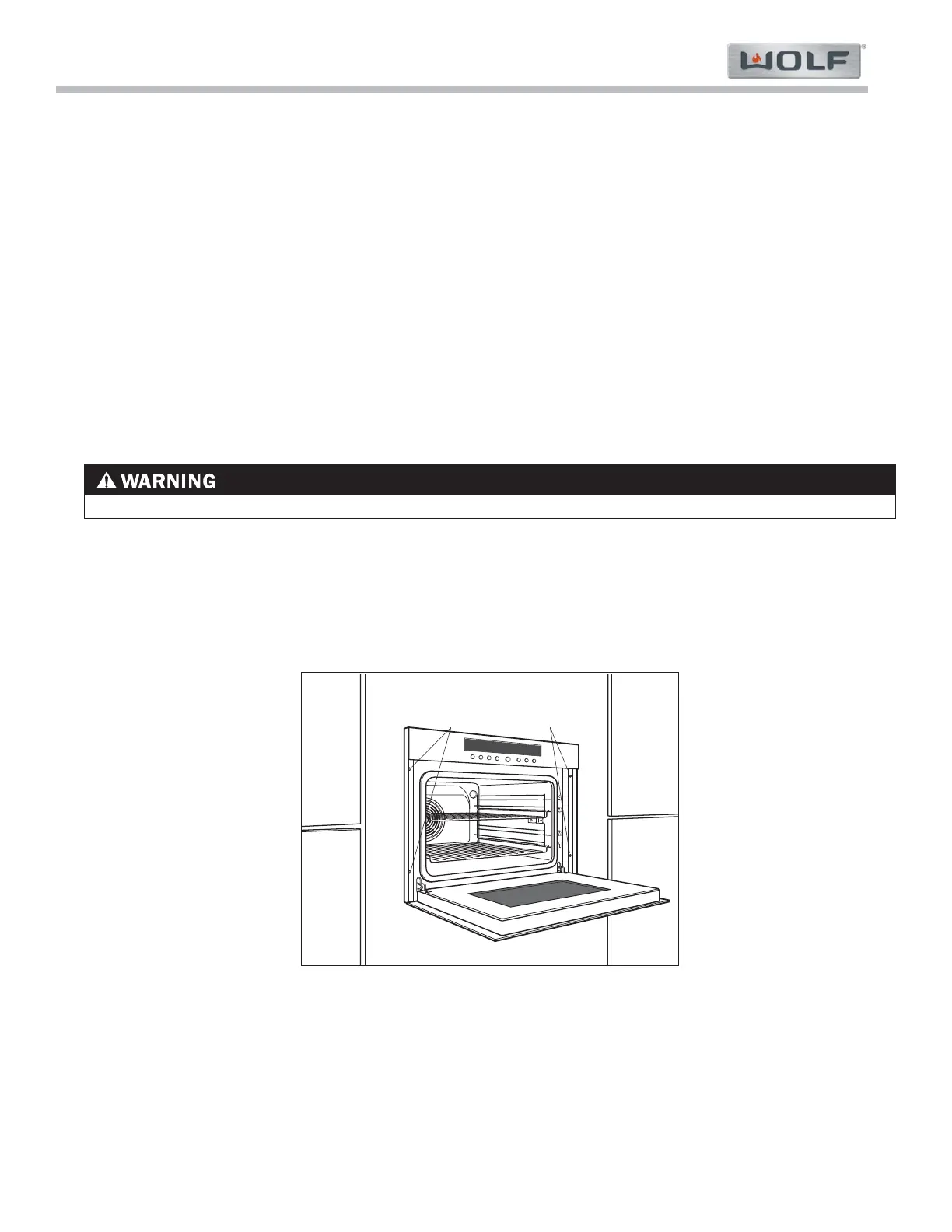

3. Once the oven is fully positioned in the opening, open the oven door and locate the four mounting holes on the
oven side trim. Refer to the illustration below. Use a 1/16" (~1.6) drill bit to drill pilot holes into the cabinet.
4. Using the mounting screws provided, secure the oven to the cabinet.
NOTE: To avoid interference, a 90 degree door stop may be required on any appliance or cabinet door installed next
to the convection steam oven.
FAILURE TO INSTALL THE MOUNTING SCREWS CAN ALLOW THE OVEN TO TIP FORWARD DURING USE!
T
EMP
MO
DE
L
IGHT
W
A
T
E
R
T
I
M
E
O
F
F
POW
E
R
O
N
OVEN MOUNTING HOLES
Oven Installation
