Installation Information
CSO24 and CSO30 (SWS #13508346)
2-5
#9001333 - Revision A - August, 2014

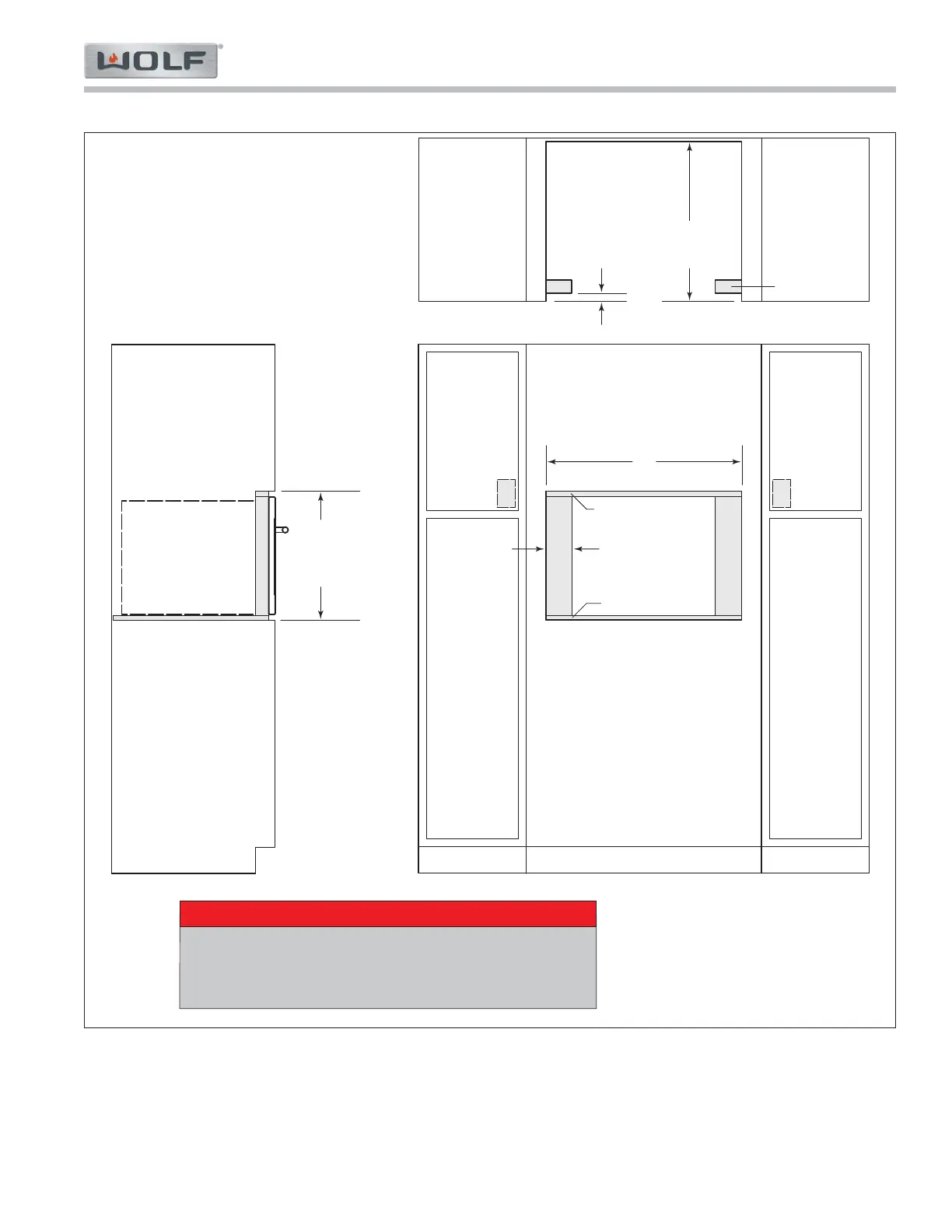

Flush Inset Installation
18
1
/8"
(460) min
FLUSH INSET
HEIGHT
SIDE CLEATS
23" (584) min
FLUSH INSET
DEPTH
1" (25)
FRONT VIEWSIDE VIEW
TOP VIEW
5
/16"(8)
1
/8" (3)
BOTTOM CLEAT
EE
W
TOP CLEAT
FLUSH INSET WIDTH
A
FLUSH INSET WIDTH
CONVECTION STEAM OVEN
24” Model 23-3/4” (603) 13/16” (21)
30” Model 30-1/8“ (765) 4” (102)
WA
Notes:
Cleats may be visible and should be finished to match cabinetry.•
Minimum base support 100 lbs (45 kg)•
Electrical supply must be located in adjacent cabinet within 3’ (914) of opening.•
Dashed line represents profile of unit.•
Numbers in parenthesis are in millimeters.•
Dimensions may vary by +/- 1/8” (3)•
