Component Access
CSO24 and CSO30 (SWS #13508346)
4-3
#9001333 - Revision A - August, 2014

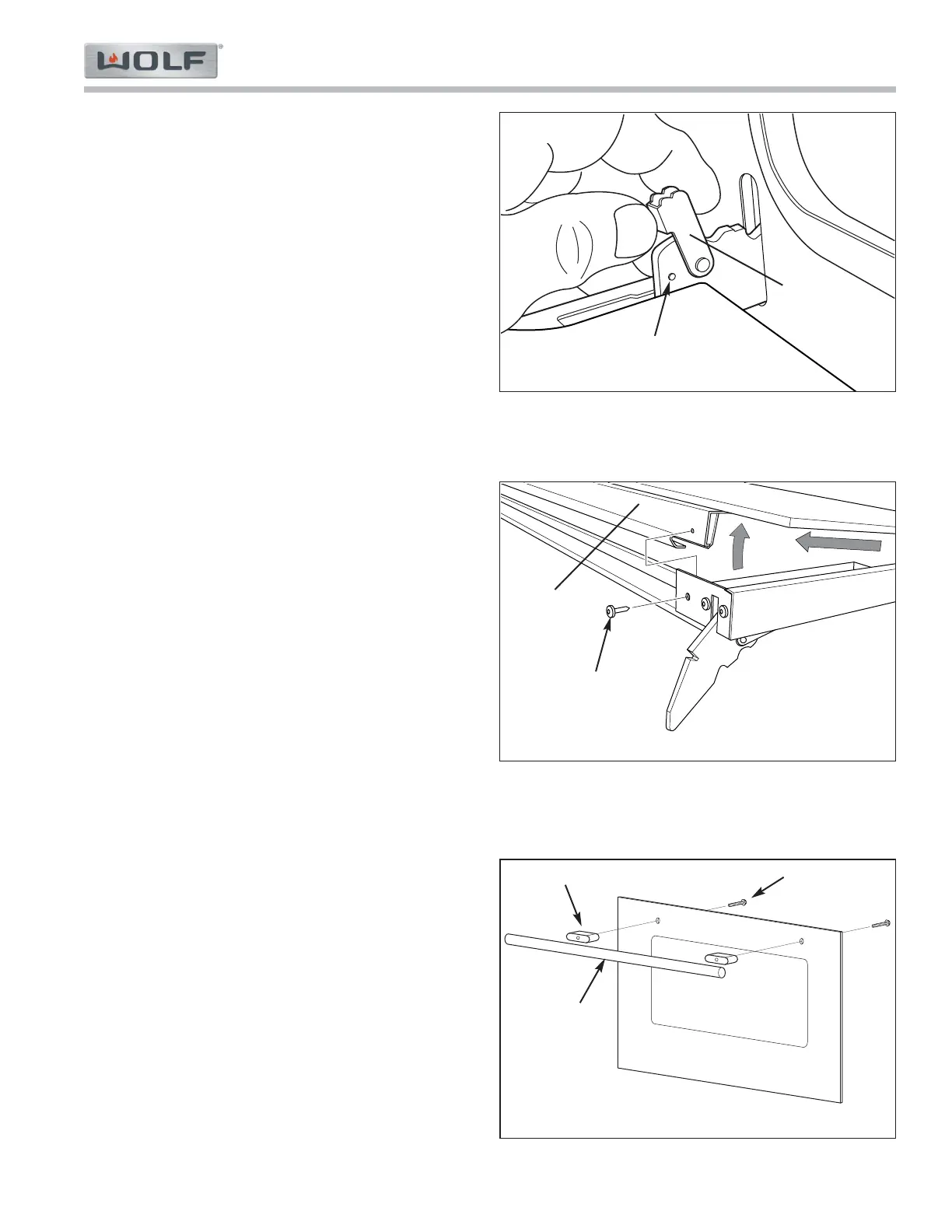

Door Removal
To remove the door (See Figure 4-1):
1. Open door fully.
2. Flip hinge retaining clips at each hinge up and back
until they hit the stop knobs.
3. Move door in the closing direction until it stops
against the tops of hinge retaining clips.
4. Grasp sides of door and continue to move door in
the closing direction while lifting up and pulling door
assembly away from unit. This will disengage
hinges from the unit.
Door Handle Removal
To remove the handle (See Figures 4-2 and 4-3):
1. With door removed, lay it on a flat surface with the
handle up.
NOTE: Lay protective material over flat surface to
avoid damage to surface.
2. At bottom of door, extract inner most screws, one
each side of door, using a T-10 bit.
3. Lift bottom of door front glass assembly up until
flange at bottom is above the lower door liner
flanges.
4. With door front glass assembly flange above door
liner flanges, pull door glass assembly away from top
of door until glass assembly upper bracket disen-
gages from upper door liner flange.
5. Extract handle mounting screws from backside of
glass assembly and pull handle and stand-offs from
glass assembly.
Stop Knob
Hinge
Retaining
Clip
4-1. Door Hinge Retaining Clip
Mounting
Screw
Door Liner Assy
4-2. Separate door Glass from Door Liner
Door
Glass
Assembly
Flange
4-3. Door Handle Removal
Door Front Glass Assy
Handle
Stand-off Screw
To Next Page
