CSO24 and CSO30 (SWS #13508346)
Component Removal
4-4
#9001333 - Revision A - August, 2014
Door Liner Glass Removal
To remove the door liner glass (See Figures 4-4 and 4-
5):
1. With door removed, lay it on a flat surface with the
handle side up.
NOTE: Lay protective material over flat surface to
avoid damage to surface.
2. At bottom of door, extract inner most screws, one
each side of door, using a T-10 bit.
3. Lift bottom of door front glass assembly up until
flange at bottom is above the lower door liner
flanges.
4. With door front glass assembly flange above door
liner flanges, pull door glass assembly away from top
of door until glass assembly upper bracket disen-
gages from upper door liner flange. Then, set the
door front glass assembly off to the side.
5. With a pliers, bend door liner glass retaining tabs
straight so they are not over the glass, then lift the
glass from the liner assembly.
NOTE: When reinstalling glass make sure indicator
dot is facing toward inside of door assembly.
Rack Guide Removal
To remove a rack guide (See Figures 4-6):
1. Extract the knurled nut from the mounting stud at the
front of the rack guide
2. pull the rack guide posts from the holes in the hot air
cover at the back of the cavity.
Mounting
Screw
Door Liner Assy

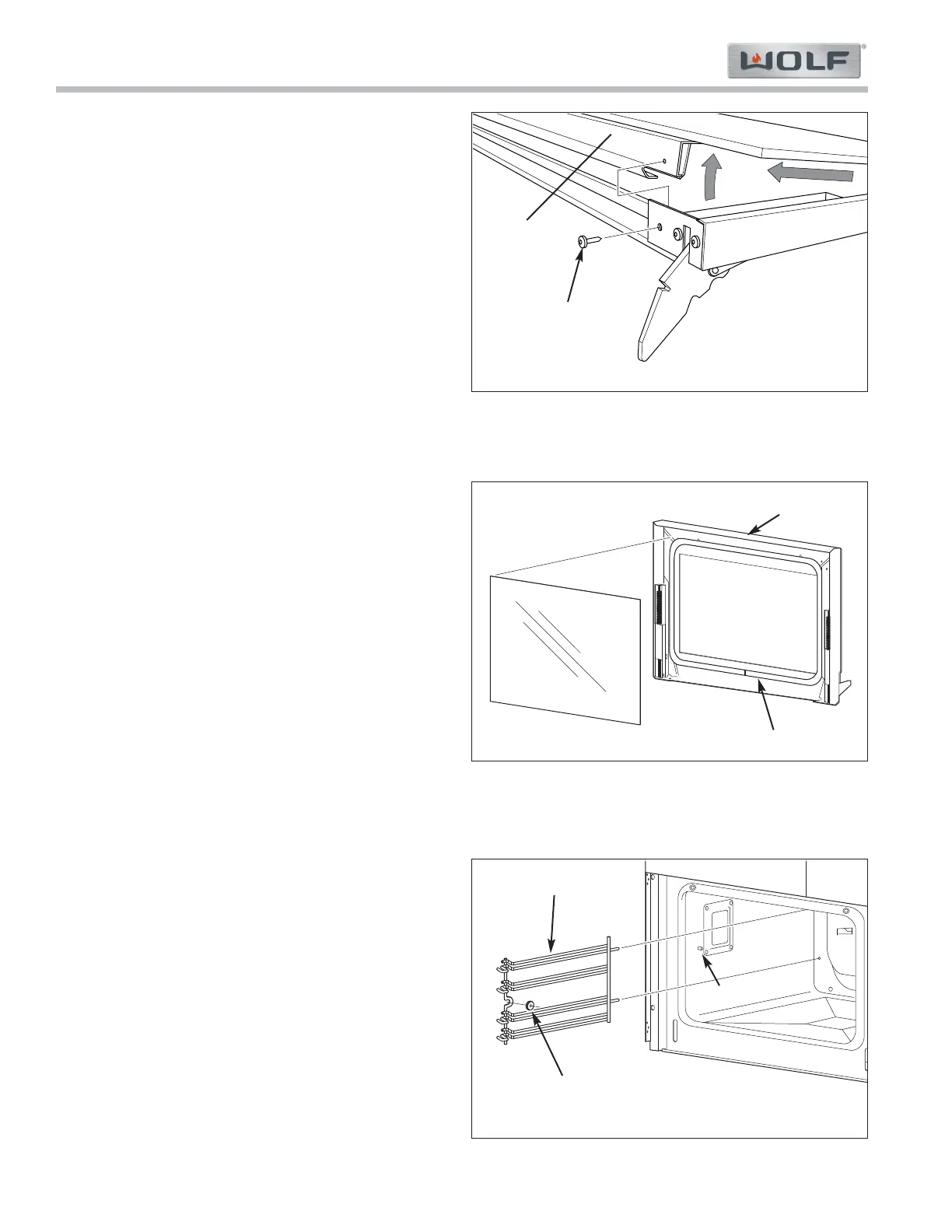

4-4. Separate door Glass from Door Liner
Door
Glass
Assembly
Flange
4-5. Door Liner Glass Removal
Door Liner Glass
Door Liner
Assembly
4-6. Rack Guide Removal
Rack Guide
Knurled Nut
Stud
Gasket
