Wolf IG15/S - Page 27

WOLF WARMING DRAWERS
27
NOTE: Refer to the built-in 30" (762) single oven specifications for electrical location.
29
1
/2" (749)
WARMING DRAWER
OPENING WIDTH
28
1
/2" (724)
30-INCH OVEN
OPENING WIDTH
33" (838)
CABINET WIDTH
E
5"
(127)
4"
(102)
OVERLAY APPLICATION
27
3
/16"
(691)
24"min
(610)
24" min (610)
OPENING DEPTH
24" min (610)
CABINET DEPTH
1
1
/2"min*
(38)
10
1
/4"
(260)
OPENING
HEIGHT
9
7
/8"(251)
2"(51) x 2"(51)
ANTI-TIP BLOCK
FLUSH INSET APPLICATION
27
3
/16"
(691)
24"min
(610)
24" (610) + THICKNESS
OF DRAWER FACE
FOR OPENING DEPTH
25" min (635)
CABINET DEPTH
1
1
/2"min*
(38)
10
1
/4"
(260)
OPENING
HEIGHT
9
7
/8"(251)
2"(51) x 2"(51)
ANTI-TIP BLOCK
*Dimension may increase depending on the size of the drawer front panel.

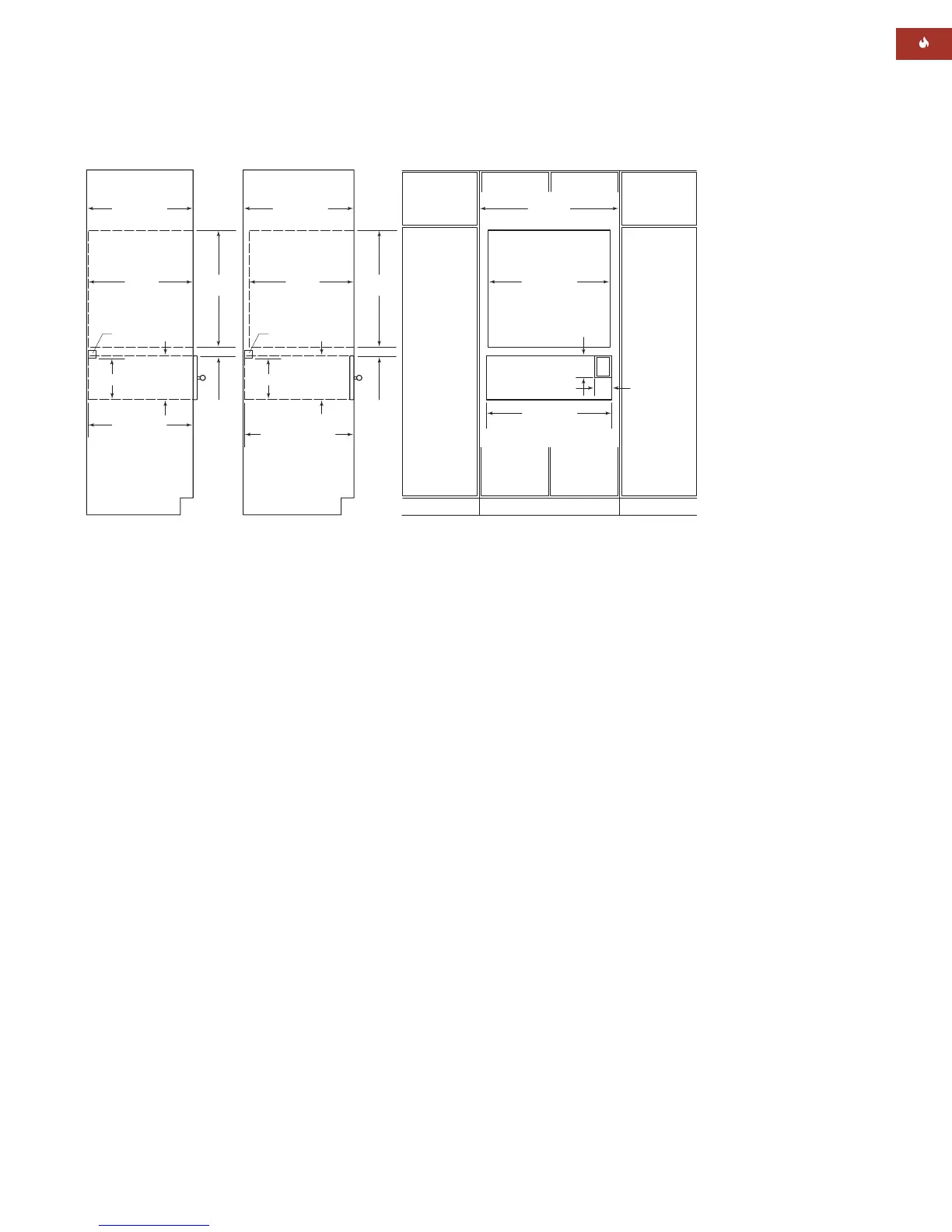

INSTALLATION SPECIFICATIONS
Model WWD30 with Integrated Drawer Front
Installation with 30" (762) L Series or E Series Single Oven
Refer to installation
instructions shipped
with each Wolf
product for detailed
specifications.
INSTALLATION
OPTIONS
Model WWD30 with inte-
grated drawer front may
be installed above or
below any L Series or
E Series single or double
oven provided the
warming drawer is fully
enclosed, top and bottom,
with a minimum base
support of 200 lbs (91 kg).
Refer to the oven sections
for installation specifica-
tions for the built-in oven.
Refer to the installation
instructions provided with
the warming drawer front
for detailed specifications.
Dimensions will vary
according to the specific
installation.
