Wolf LH - Steel Bar Fastening Variations

3040531_071110

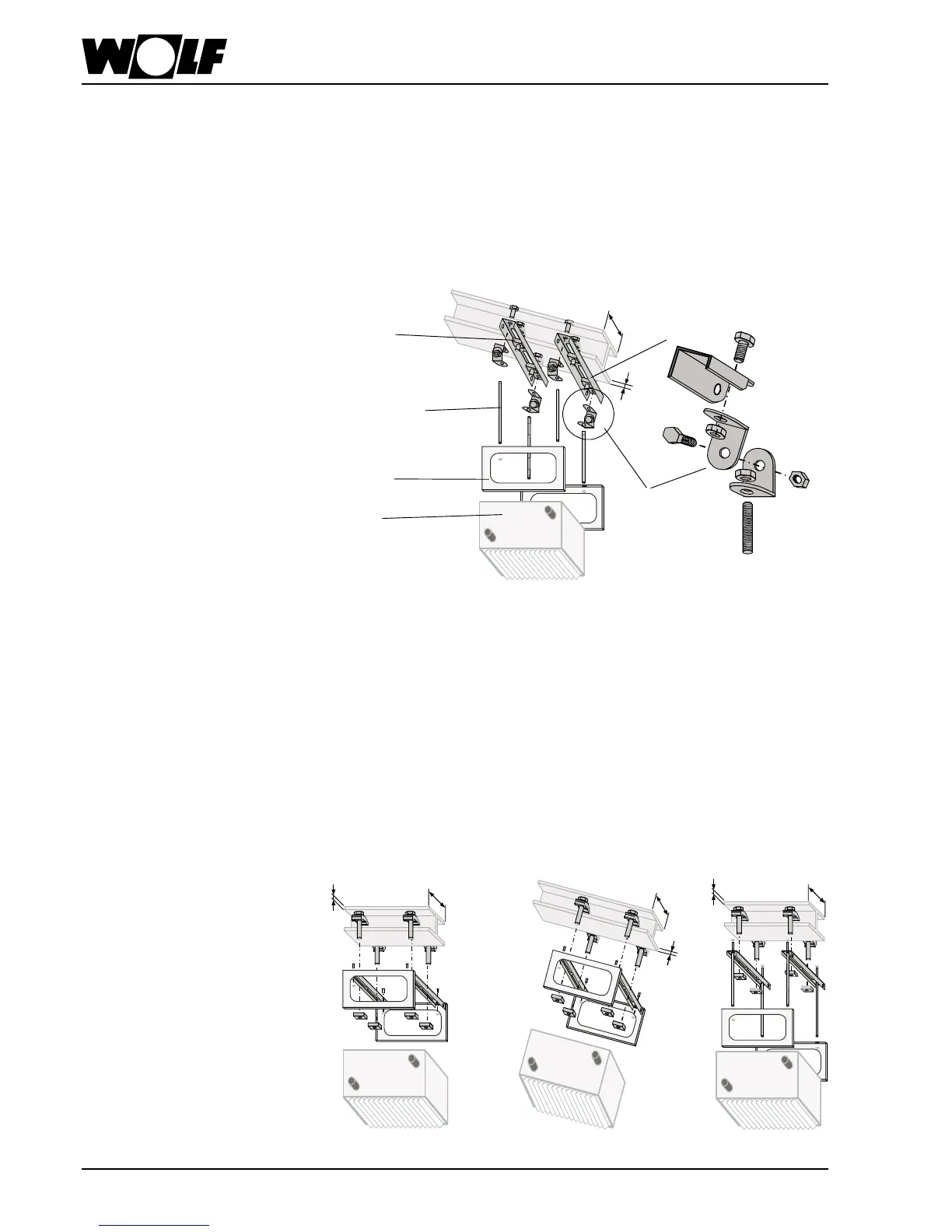

Fastening kit for steel bar
inclined with inclination
equalization
Suitable for all types of steel bars at a ange width "b" of min. 100 mm up to max. 300
mm and a ange thickness "t" of min. 6 mm up to max. 21 mm.
- Fit fastening brackets to the unit with enclosed screws.
- Fit angle steel proles of inclination equalization with their short end to the suspending
rails, by using the enclosed screws and nuts.
- Connect angle steel proles at their long ends and keep them movable.
- Fit suspending rails to the steel bar with enclosed clamping jaws.
- Fit unit to inclination equalization assembly via its fastening brackets by means of
threaded rods M8 (on site).
b
t
Suspending rail
Fastening
brackets
LH-Unit
Inclination
equalization
Clamping
jaws
Threaded rods
M8 (on site)
b
b
t
t
b
t
Fig. 1 Fig. 2 Fig. 3
*
Fastening kit for steel bar
horizontal and inclined wit-
hout inclination equalization
Suitable for all types of steel bars at a ange width "b" of min. 100 mm up to max. 300
mm and a ange thickness "t" of min. 6 mm up to max. 21 mm.
- Fit fastening brackets to the unit with enclosed screws.
- Fig. 1 and 2: - Fit suspending rails to the fastening brackets with enclosed
screws, washers and nuts.
- Fit suspending rails to the steel bar with enclosed clamping
jaws, as shown in g. 1 and 2.
- Fig. 3: - Fit suspending rails to the steel bar with enclosed clamping
jaws.
- Fit unit to suspending rails via its fastening brackets by means
of threaded rods M8 * (on site).
Installation Instructions
