Intermediate Terminal Box

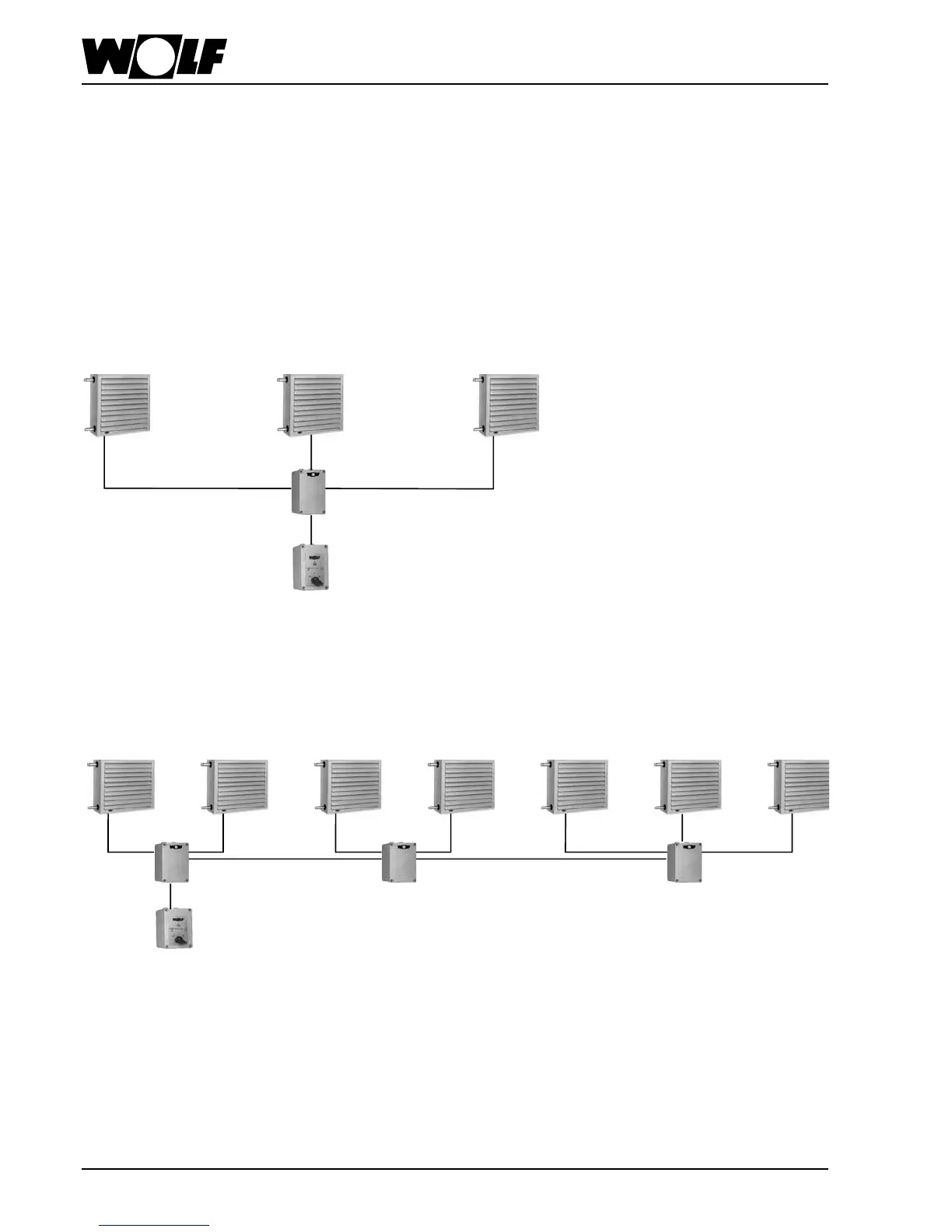

Operation of 7 LH-units with intermediate terminal box
intermediate terminal box
intermediate terminal box
switch or
control device
intermediate terminal box
Intermediate terminal box
Connection of 3 LH unit heaters with an intermediate terminal box
intermediate terminal box
switch or control
device
Intermediate terminal box for a parallel operation of several LH unit heaters.
It is possible to wire one control device and three LH unit heaters or one control device,
two LH unit heaters and an additional intermediate terminal box.
LH unit heaters of different sizes and performances of up to the max. possible perfor-
mance or rather the max. possible current of the switch or control device can be wired.
Wiring according to the attached wiring diagrams.
