Rain protection hood and roof lead-in box
Roof lead-in box and rain protection hood are supplied sepa
rately. The rain protection hood is provided with a bird screen as standard. As an option
a non-return damper may be supplied for the installation into the rain protection hood,
on site.
In order to facilitate the sealing of the roof on site, it is possible to supply a covering
collar as an optional accessory, not tted.

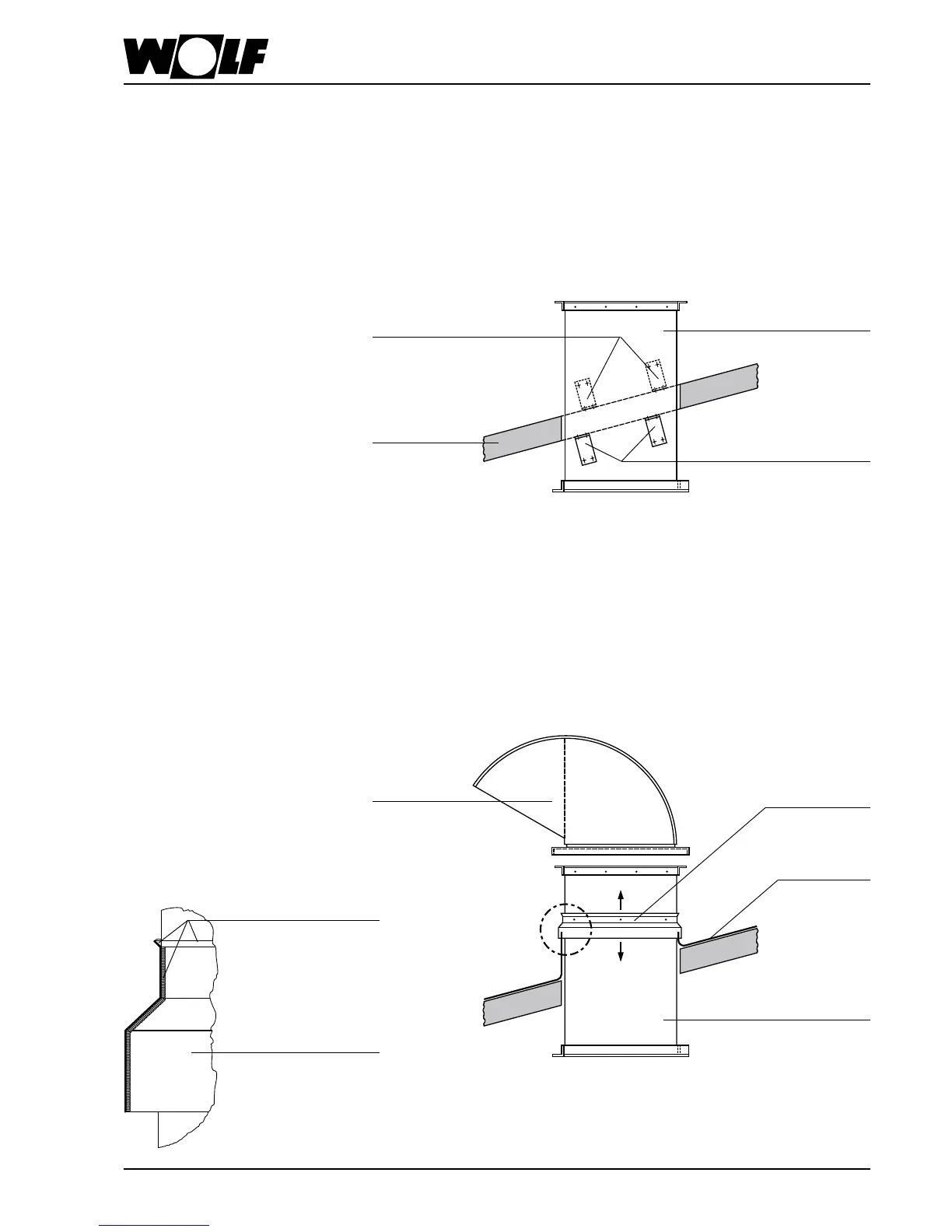

Installation and tting in accordance with the drawing:
Roof sealing
Fit sealing material
on site (included)
Covering collar
Installation and
sealing on site
X
Rain protection
hood
Roof sealing
(on site)
Covering collar
Installation and
sealing on site
Roof lead-in box
As an option and on extra price it is possible to supply 4 fastening angles for tting
the roof lead-in box. Fitting of fastening angles to be done on site because of different
types of roofs and variable pitch.
Roof fastening
Notice:
The fastening angles are exclusively suitable for tting the roof lead-in box. They are
not designed for carrying the additional weight of unit components installed underneath
the roof lead-in box.
External tting of
fastening angles
as well possible
4 x fastening angles to
be adapted to the pitch
of the roof
Roof lead-in box
Roof
