Wolf LH - Actuators and Push-buttons; Actuators; Induction Louvre Push-button

3040531_0711 21

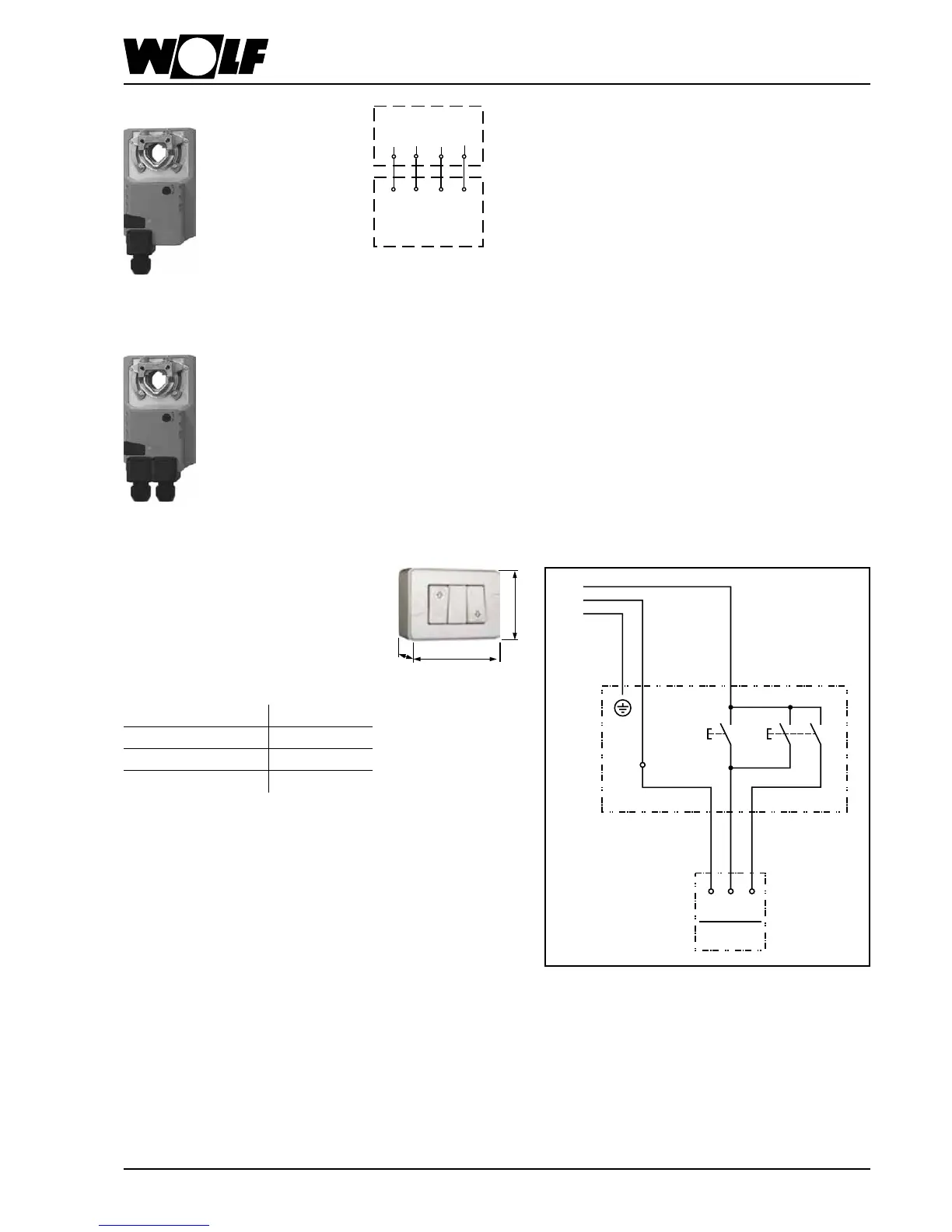

Actuators / Push-button
Push-button for 230V/50Hz
actuator of induction louvre
for surface or concealed installation;
for progressive control of the induction lou-
vre to optimize the air throw
1
2
4
5
1
1
N
L
N
PE
LM
2
Zu
230
3
Auf
W
2
Zu Auf
actuator
open-closed
230V
induction
louvre
surface/concealed-
type push-button
auxiliary
terminal on site
83
113
53
Control voltage 230 V
Max. capacity 10 A
Prot. class IP 20
Part no. 27 01 063
Actuator for automatic operation of damper,
induction louvre and mixing valve.
Controlling only by automatic relay A1 and
position transmitter.
Power consumption 5 VA
Rotation direction reversible
Torque drive 15 Nm
Running time 100 - 200 sec.
Protection class IP 42
Part no. 22 69 522
Stepless actuator 230 V / 50 Hz
Actuator for automatic opening and clo-
sing of the fresh air damper.
Controlling only by automatic relay A1.
Power consumption 11 VA
Rotation direction reversible
Torque drive 15 Nm
Running time 90 - 150 sec.
Protection class IP 42
Part no. 22 69 523
N
2
3
4
3
1
PE
ZU
N
AUF
SM 220
PE
Relay A1
Actuator OPEN-SHUT 230 V / 50 Hz
shut open
