Wolf LH - Mounting Clearances and Air Throw Data

3040531_0711 7

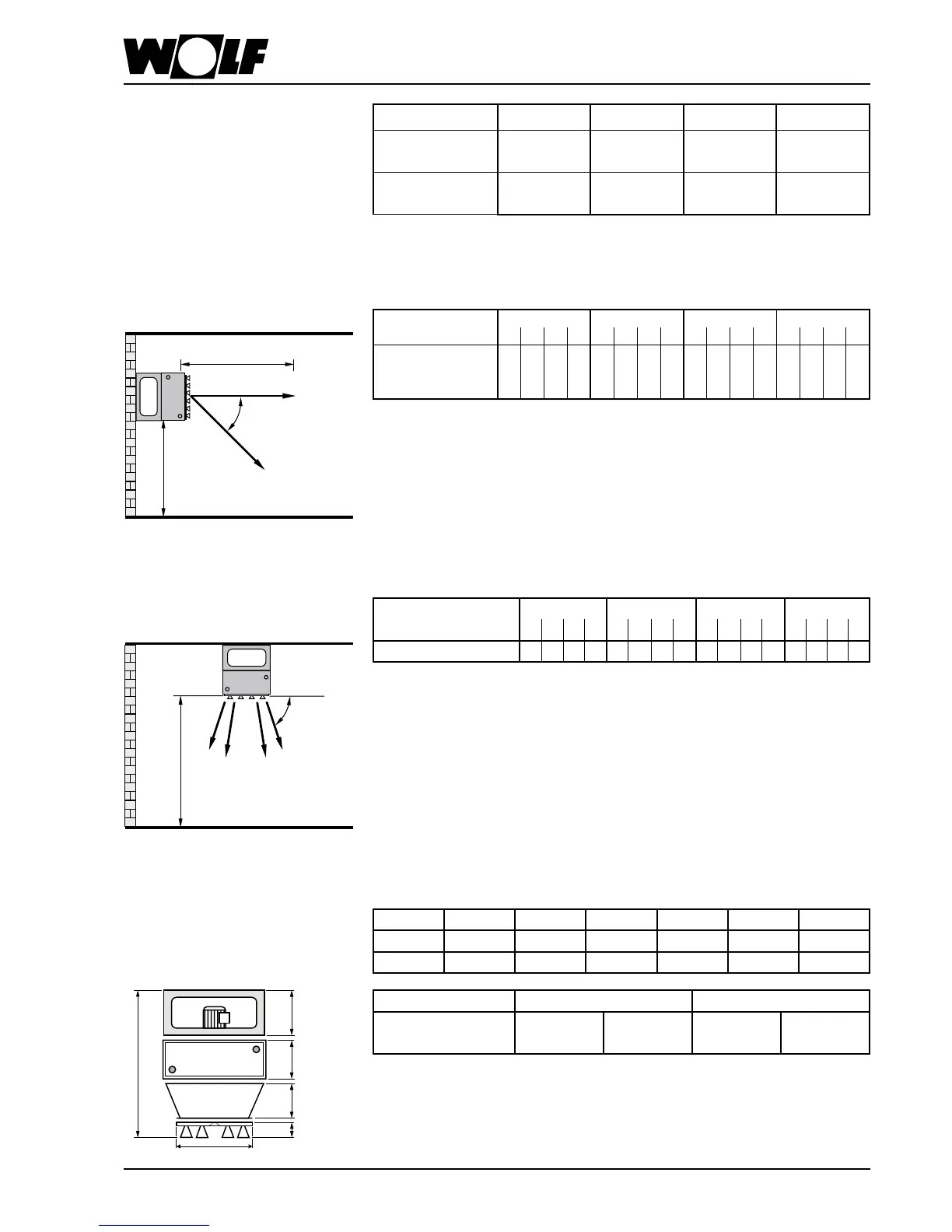

Prior to the Installation
Clearances
Clearances for wall-mounted units
and clearances for ceiling-mounted
units, vanes vertical.
Ceiling-mounted unit,
vanes deected.
LH 25 40 63 100
LH from LH
LH to wall
7 - 9m
3 - 4m
9 - 11m
3 - 5m
11 - 13m
4 - 6m
13 - 15m
5 - 7m
LH from LH
LH to wall
- 12m
4 - 6m
- 14m
5 - 7m
- 16m
6 - 8m
- 18m
7 - 9m
Height wall-mounted unit with
adaption cone and induction
louvre
A
B
F
C
D
E
A B C D E F
LH 6 3 1040 120 270 300 350 460
LH 1 0 0 1130 120 320 340 350 590
LH 63 100
Type 1 2 1 2
Max. height (m) 12 11 11 10
Higher above oor heights on request.
Air throw: wall-mounted unit
LH 25 40 63 100
Type 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Air throw [m]*
high speed 19 18 16 15 27 26 23 21 29 27 25 23 36 35 34 32
low speed 16 15 13 12 20 19 16 14 22 20 18 17 30 28 26 25
* Figures represent air throws on dened operating conditions.
(mixing temperature 10 K above room temperature)
Air throw m
Angle of adjustment
Speed of air stream in utility
area 0,2m/sec.
0,2 m/sec.
Height above oor
min. 2,5m
max. 4,0m
LH 25 40 63 100
Type 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
Height above oor [m]* 5 4,5 4 3,5 6 5,5 5 4,5 7 6,5 6 5,5 8 7,5 7 6,5
*The optimum vane angle depends on the height above oor.
Higher above oor heights on request.
Height above oor,
ceiling-mounted unit
Angle of
adjustment
Speed of air stream in utility
area 0,2m/sec.
Height above oor [m]
