Wolf Link home User Manual

Overview
WOLF
Link
home
WOLF
Linkpro
SM1, SM1-2, SM-2, SM2-2 solar modules
Comfort mechanical ventilation CWL Excellent
KG Top, CKL Pool air handling equipment*
CKL, CFL, CRL ventilation units*
Combined heat and power modules
in conjunction with a WOLF Link home compatible heating appliance,
Full functional scope only with appliances running current software
versions.
* Modbus interface required in the appliance, special programming
cannot be shown.
3.3 WolfLINKhomestandarddelivery
Check the standard delivery using the following list:
− WOLF Link home interface module
− Installation and operating instructions
− Connecting cable
− Network cable
− 3 x adhesive cable fasteners
− Additional label for attachment to housing
3.4 WolfLINKprostandarddelivery
Check the standard delivery using the following list:
− WOLF Link pro interface module
− Installation and operating instructions
− Network cable
− USB power supply unit and cable for power supply
− eBus connection cable
− 3 x strain relief
− Additional label for attachment

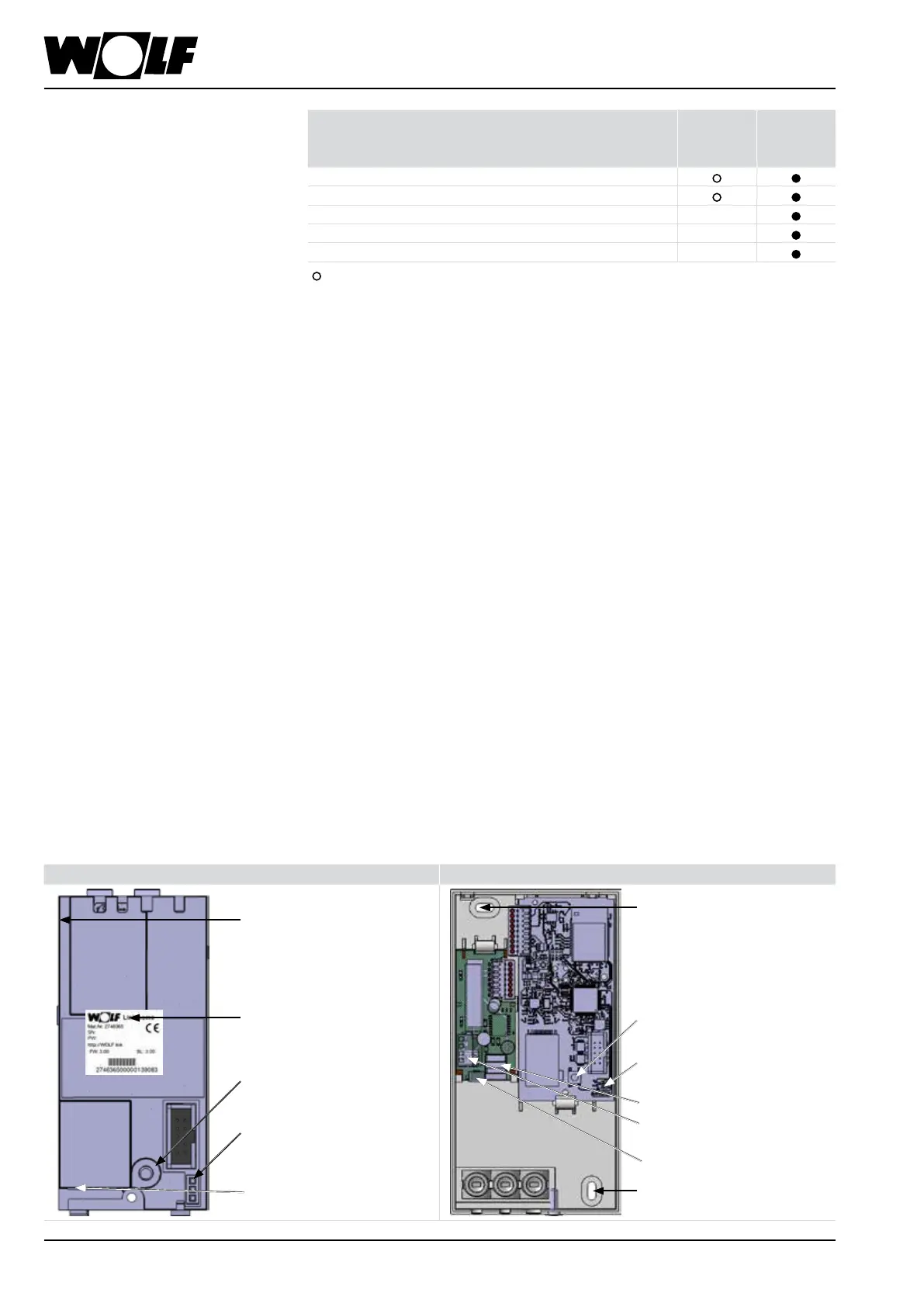

3.5 OverviewWOLFLinkhome/WOLFLinkprointerfacemodule
WOLFLinkhome WOLFLinkpro
Connector for connecting
cable to appliance PCB
Type plate with serial
number, password and
network name
RJ45 socket for connecting
a network cable
Button
LEDs
Eyelet for wall mounting
Eyelet for wall mounting
LEDs
eBus connection
Power supply via power
supply unit
Power supply via terminals
Button
6
3066086_201803
