2. Intr oduction of Rapport337
11

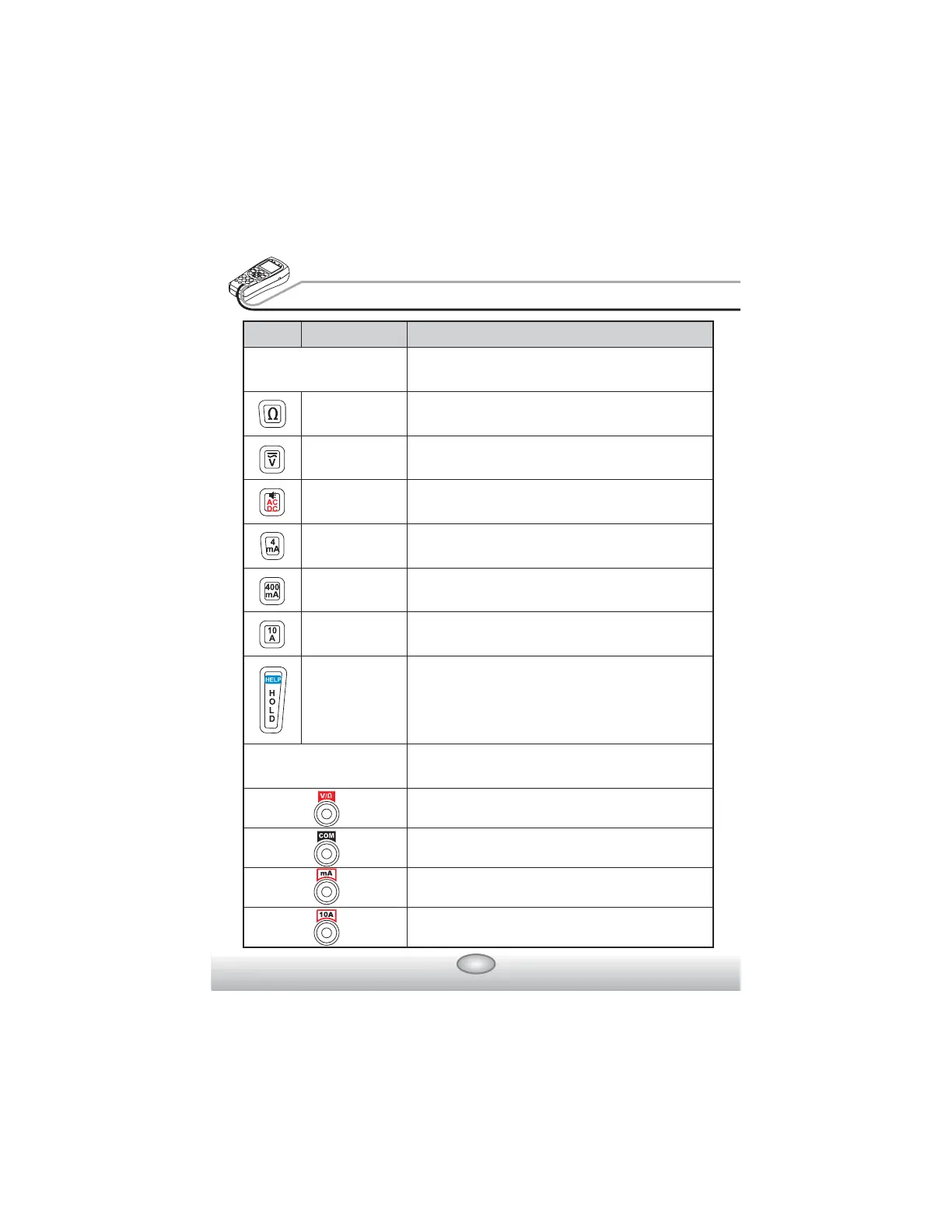

Part Name Function
ྟ Key Button METER PART
ྠ Test Lead Connection Test Lead Positioning for Lead Connection
Resistance
Button
Voltage Button
Setup Change
Button
Current
Measuring
Button 1
Current
Measuring
Button 2
Current
Measuring
Button 3
HOLD, HELP
Button
It measures resistance
It measures voltage
IT changes setup of AC/DC,
resistance/continuity test
It is used for measuring lower current below 4 mA
It is used for measuring current below 400 mA
It is used for measuring current below 10A
Measuring range can be changed and holded
HELP function
It indicates position of Red Test Lead for measuring
Voltage & Registance
It indicates position of Black Test Lead
It indicates position of Red Test Lead for measuring
Current below 400mA
It indicates position of Red Test Lead for measuring
Current below 10A
