MF130 SPECIFICATIONS
Overall dimensions
6
6-1 doc101521 MF130 SPECIFICATIONS
SECTION 6 MF130 SPECIFICATIONS
6.1 Overall dimensions

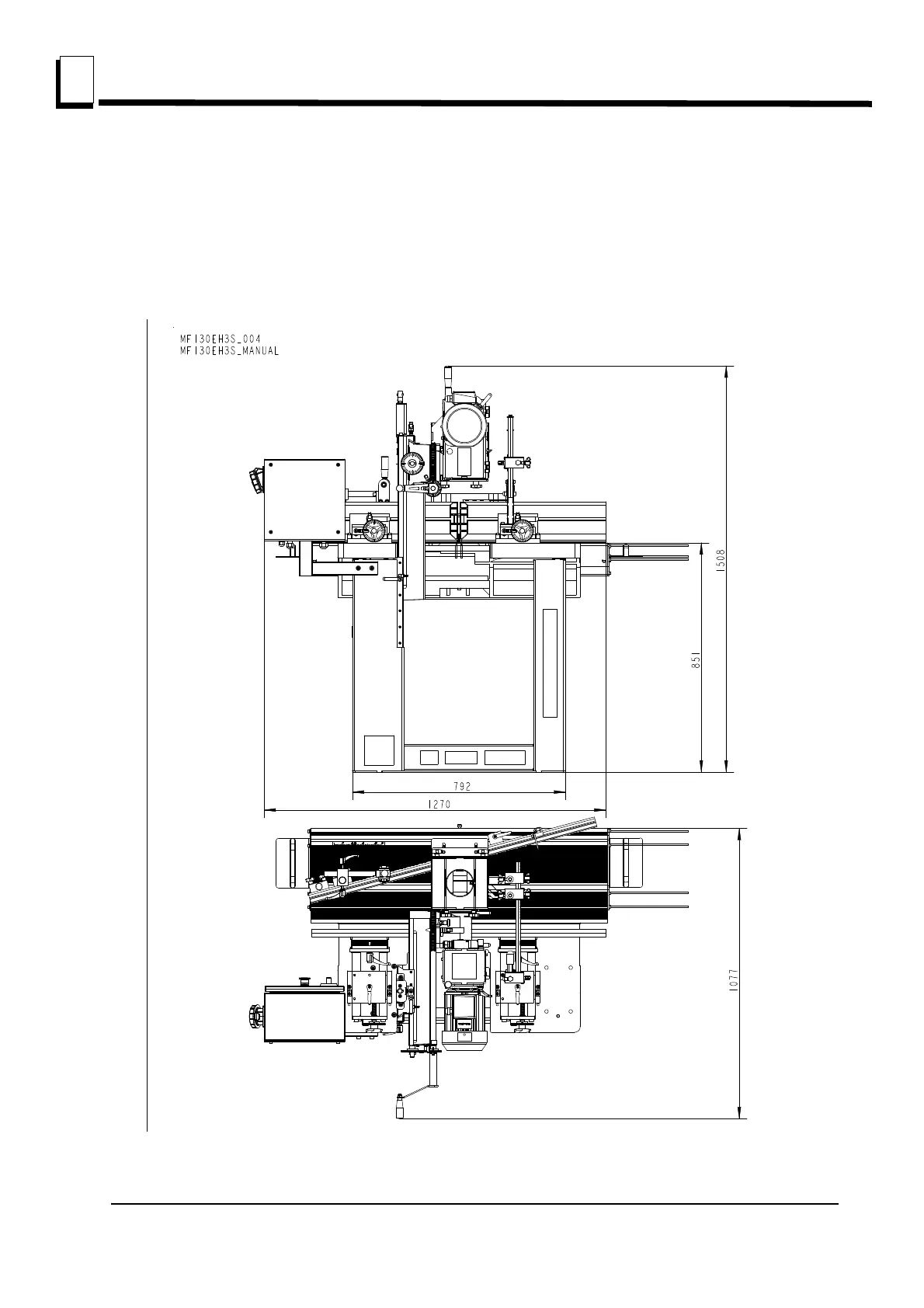

See figure 6-1. The overall dimensions of the MF130 moulder are shown below (all dimensions in
millimeters).
FIG. 6-1 MF130
