INTRODUCTION
Machine Description
1
1-3 doc101521 INTRODUCTION

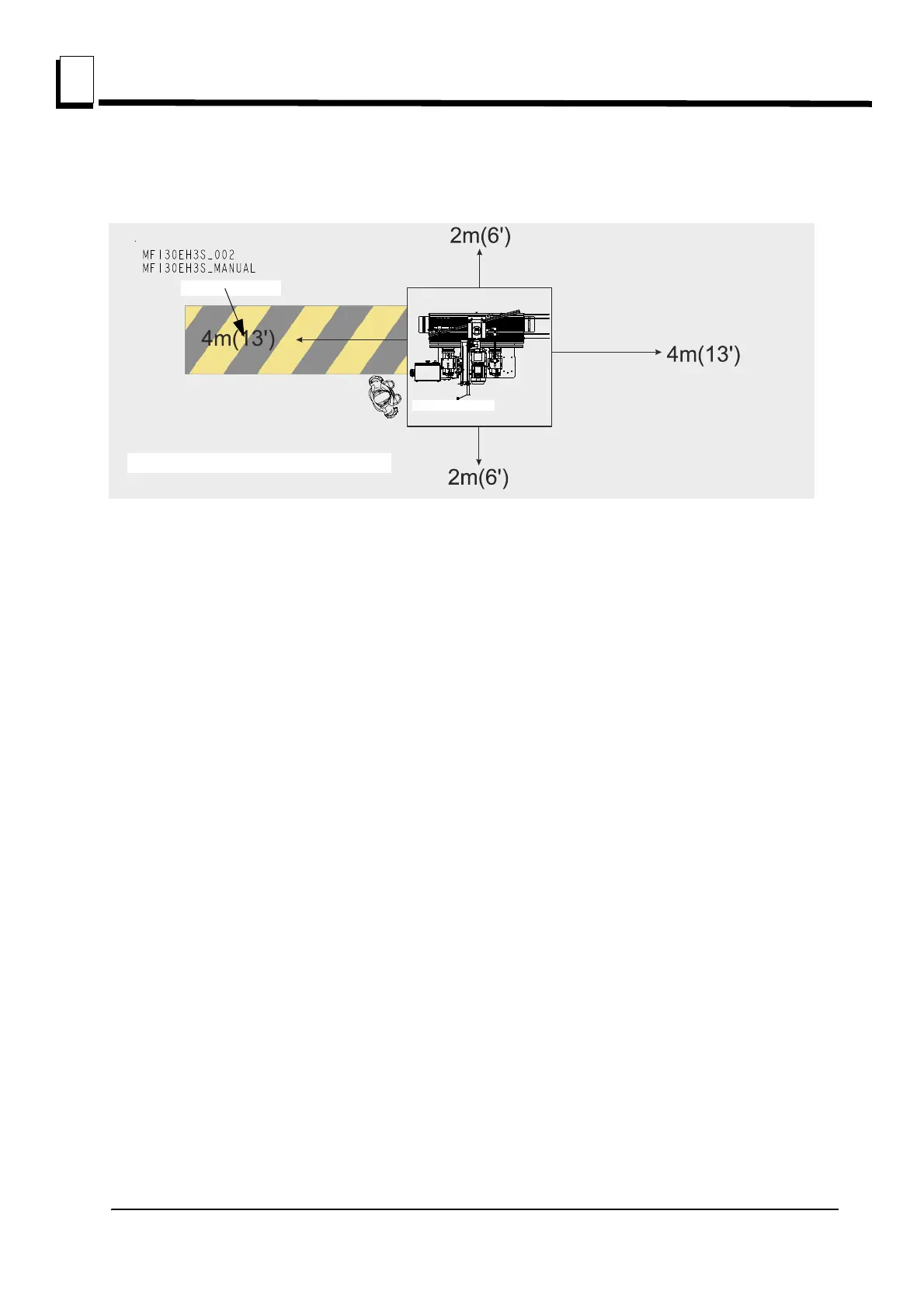

The Moulder needs a space of at least 4 m (13’) wide.
The required length depends on the length of workpieces you want to saw. The minimum length is 4 m
(13’) from the front and from the end of the machine.
FIG. 1-1
ANCHORING
For the highest safety, the Moulder must be anchored to the floor with 8-10 mm diameter anchor bolts.
TOOLS REQUIRED TO USE THE MOULDER:
 Wrench 30 mm (supplied)
 Allen wrench 3 mm
 Allen wrench 4 mm
 Allen wrench 5 mm
 Allen wrench 6 mm
 Allen wrench 8 mm
 Allen wrench 10 mm
 Sliding calliper
 Meausuring tape
 Oil Can (paraffin oil for tables)
 Whetstone
 Pusher (enclosed)
Control panel
Higher risk area
Safety distance for all other persons
