REF PART QTY DESCRIPTION

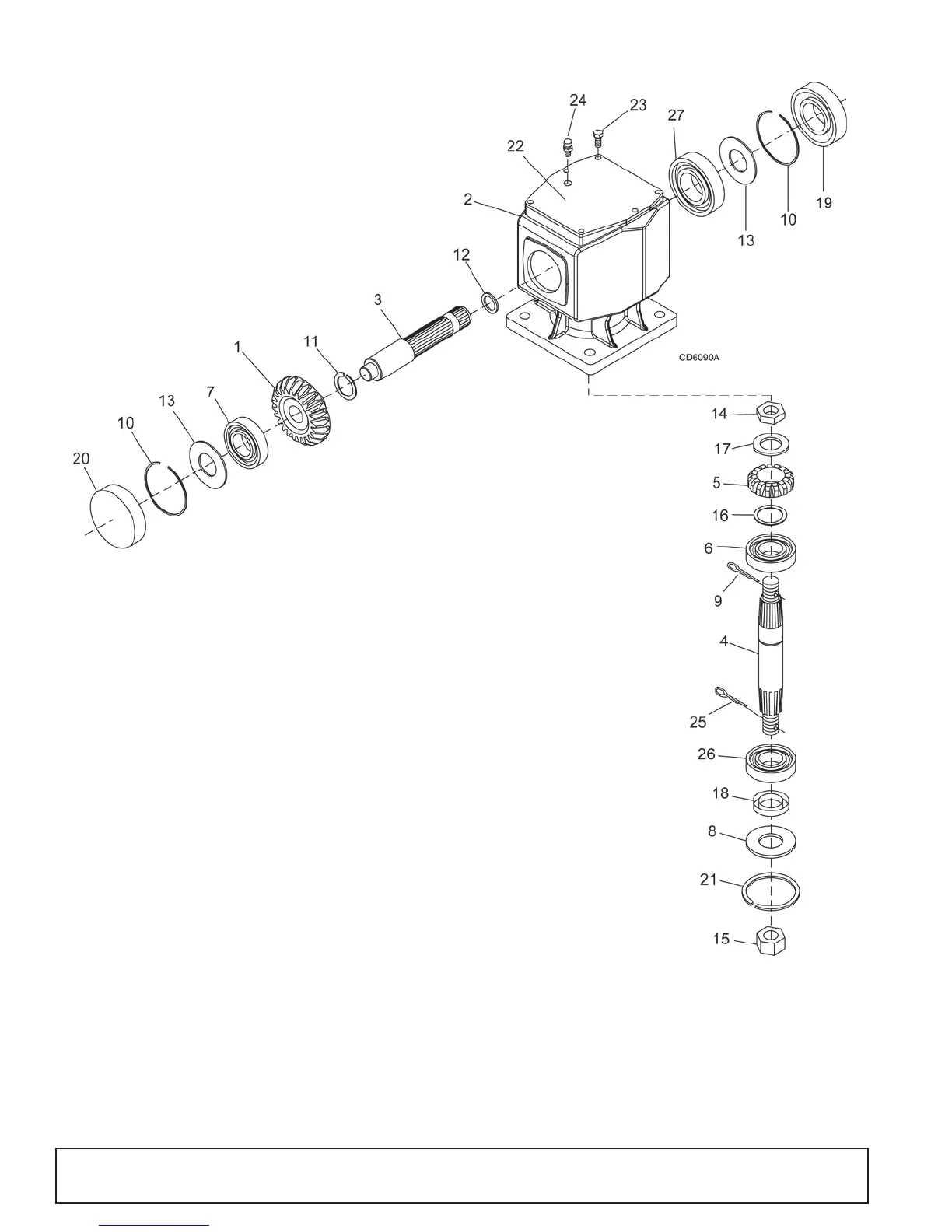

A 1002499 1 Gearbox Assembly, Complete
1 57458 1 Gear, Crown 25T M5.3
2 NSS 1 Gearbox Housing
3 1005320 1 Shaft, Input 1-3/8 -6
4 1005321 1 Shaft, Output 1-1/4
5 57491 1 Pinion Gear 13T M5.3
6 57476 1 Bearing Cup & Cone
7 57462 1 Bearing Cup & Cone
8 20888 1 Washer, 40.1 x 79.5 x 1.0 mm
(1.58 x 3.13 x .04)
Protective Flat
9 * 1 Pin, Cotter B4 x 50
10 57466 2 Snap Ring
11 20895 1 Snap Ring, 45 mm
12 57373 1 Spacer, 35.3 x 48 x 2.5
13 57328 2 Kit, Shim 60.3 x 71.6
14 57468 1 Nut, Castle
15 51946 1 Nut, Castle M24 x 2
16 57328 1 Kit, Shim 30.3 x 44
17 57473 1 Washer, 21 x 37 x 3 mm Flat
18 20900 1 Seal, Oil 40 x 80 x 12 mm
19 57463 1 Seal, Oil 35 x 72 x 10 mm
20 57374 1 Oil Cap
REF PART QTY DESCRIPTION
21 20897 1 Snap Ring SB 81 Int
22 57375 1 Cover, Top
23 * 6 Bolt, 8 mm x 14 mm
24 57076 1 Plug, 1/2 Breather Level
25 * 1 Pin, Cotter 5 x 50
26 57478 1 Bearing Cup & Cone
27 20890 1 Ball Bearing
NSS Not Sold Separately
* Obtain Locally
