Woods PRD6000E - Page 29

Parts 29
MAN1260 (4/09/2018)

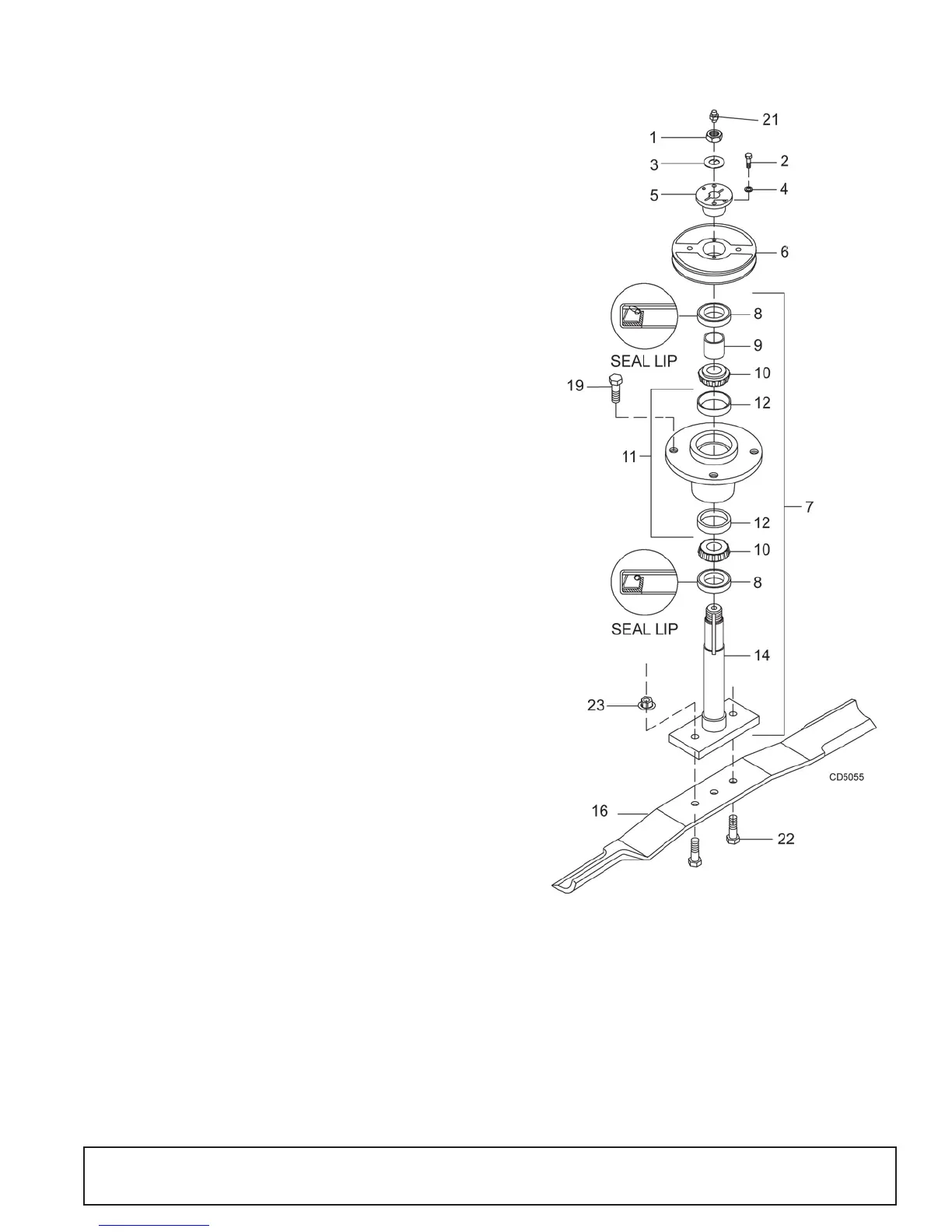

PRD6000E, PRD7200E & PRD8400E BLADE & SPINDLE ASSEMBLY
REF PART DESCRIPTION
1 37009RP Nut, Jam 7/8 NF
2 10378RP * Screw, HHCS 1/4 NC x 1 GR5
3 52898 Washer, Lock 23.6 x 42.2 mm
(.929 x 1.66")
4 1985RP * Washer, Lock 1/4
5 34440 Bushing, H 1 Straight bore w/key
6 66694 Sheave, H 1 BK 4.17 PD (PRD6000E)
-or-
6 12622RP Sheave, H 1 BK 5.0 PD (PRD7200E)
-or-
6 53419RP Sheave, H 1 BK 5.9 PD (PRD8400E)
7 52881 Spindle Assembly, Complete
8 52949 Seal, 38.1 x 53.8 x 7.9 mm
(1.50 x 2.12 x .31")
9 52872 Sleeve, 29.0 x 38.1 x 14.0 mm
(1.14 x 1.50 x .55")
10 29899 Bearing Cone
11 52882 Blade Spindle Housing with Cups
12 29898 Bearing Cup
14 52852RP Shaft, Blade Spindle
16 1001513KT Blade Kit, High Suction 533.4 mm (21")
(set of 3) (PRD6000E)
16 1008199KT Blade Kit, High Suction 635 mm (25")
(set of 3) (PRD7200E)
16 53417KT Blade Kit, High Suction 745 mm (29.33")
(set of 3) (PRD8400E)
16 1001510KT Blade Kit, Low Suction 533.4 mm 9 (21")
(set of 3) (PRD6000E)
16 1001511KT Blade Kit, Low Suction 635 mm (25")
(set of 3) (PRD7200E)
16 1001512KT Blade Kit, Low Suction 745 mm (29.33")
(set of 3) (PRD8400E)
19 4358 Screw, HHCS 1/2 NF x 1-1/4 GR5
21 1972 * Grease Fitting, 1/4-28 Tapered Thread
22 3379RP * Screw, HHCS 1/2 NC x 1-1/2 GR5
23 11900RP * Nut, Flanged Lock 1/2 NC
* Standard Hardware - Obtain Locally
