REF PART QTY DESCRIPTION
A 1019430 1 PRD6000E Mulching kit
A 1019431 1 PRD7200E Mulching kit
A 1019432 1 PRD8400E Mulching kit
1 6100RP * - 1/2 NC x 1-1/4 Cap screw GR5
2 11900RP * - 1/2 NC Flanged lock nut
* Standard Hardware, Obtain Locally
INSTALLATION INSTRUCTIONS

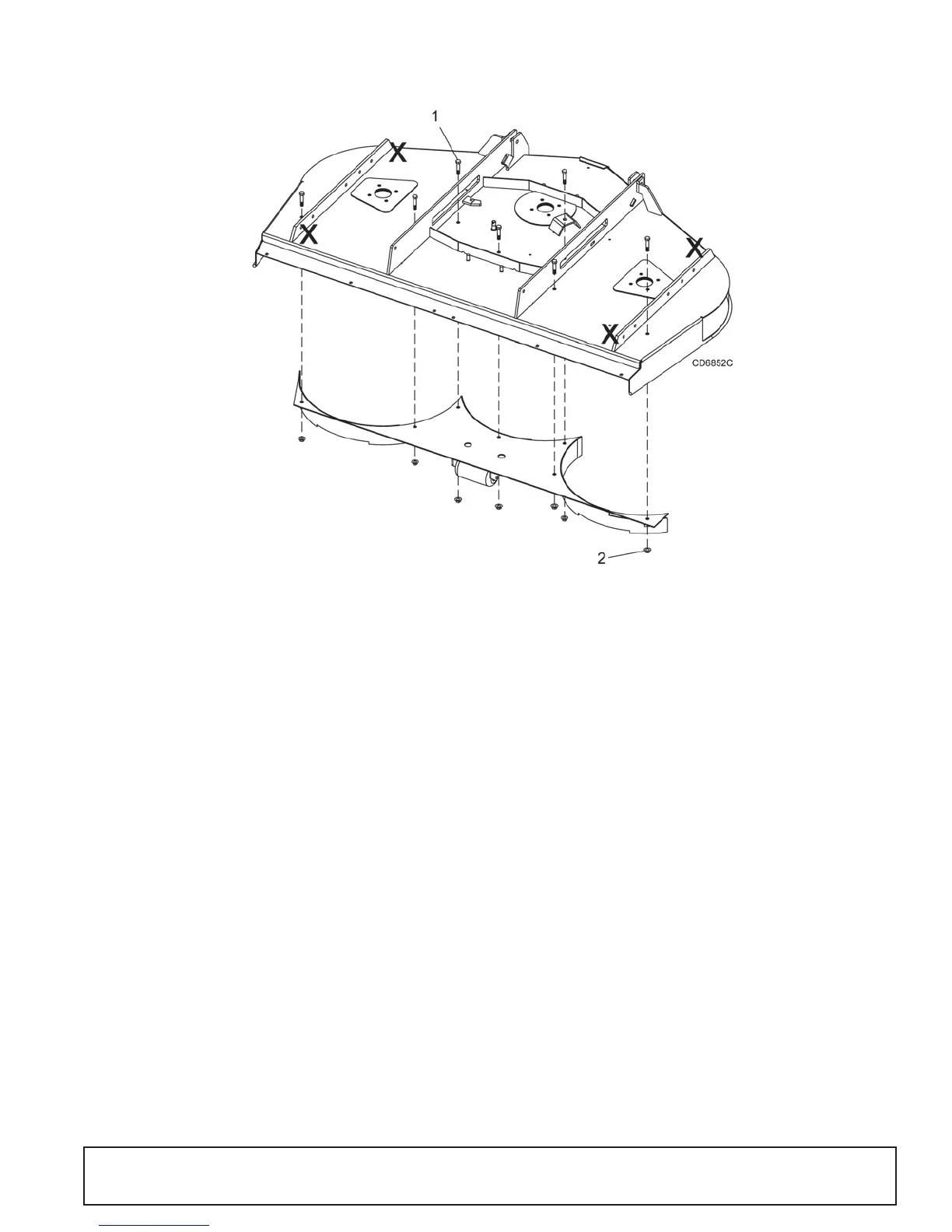

1. Using the tractor 3-point, or suitable lifting device, carefully lower deck onto 101.6 - 152.4 mm
(4" - 6") high blocks at each corner of the deck (X).
2. Make sure deck is stable before proceeding.
3. Wear safety glasses or goggles to prevent eye injury while drilling holes.
4. Clamp mulching kit in place. Make sure baffles are completely closed-off by the kit.
5. Inspect fit-up to confirm that there will be no contact between blades and kit at any time. Failure
to do so will result in product damage and possible injury.
6. Mark the holes to be drilled.
7. Once marked, remove the kit and carefully drill the holes out using a 14.3 mm (9/16") drill bit.
8. After holes are drilled, bolt the kit into place torquing bolts to 115 N-m (85 lbs-ft).
NOTE: Use high lift blades for best performance if tractor does not have
enough horsepower for the high lift blades, then use low lift blades.
