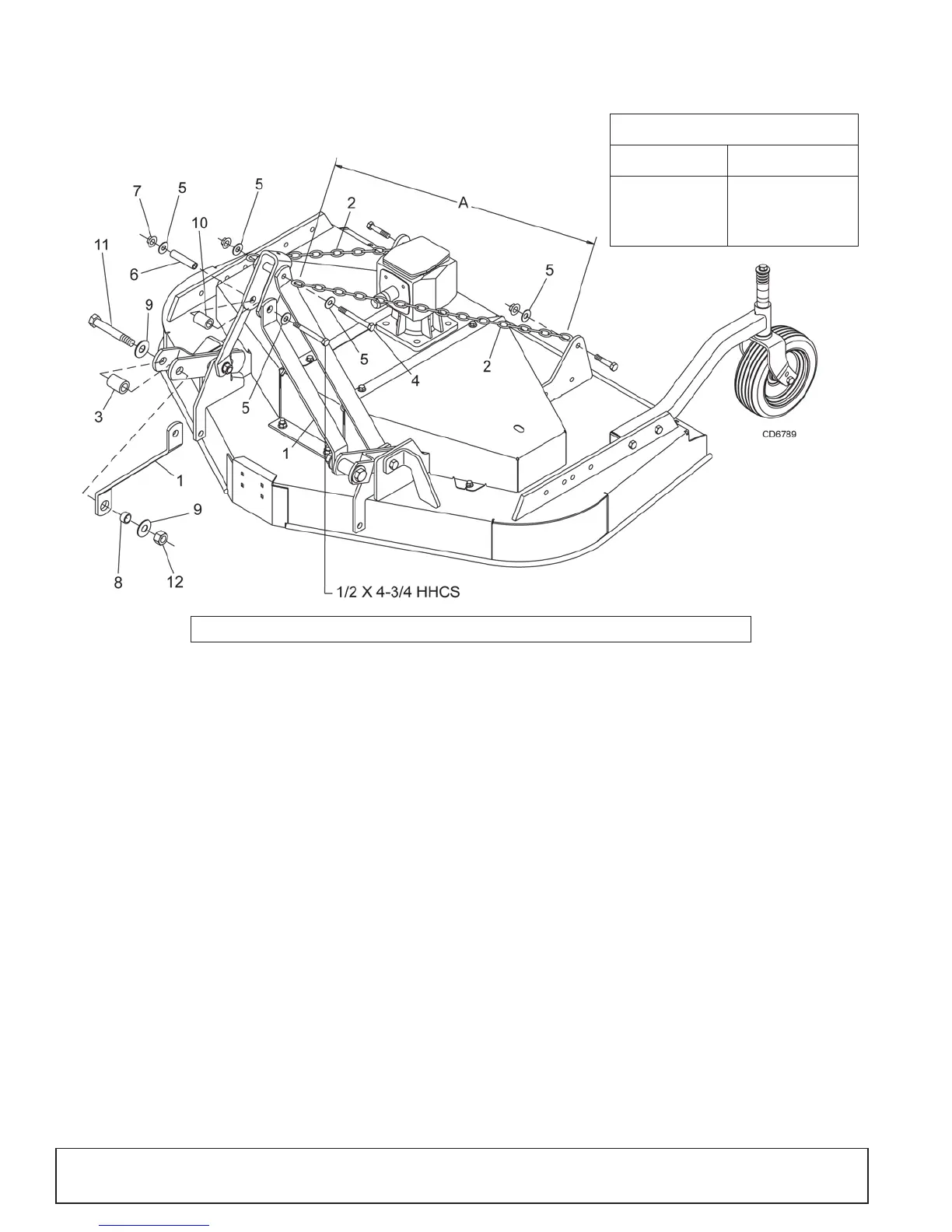

CHAIN CUT-TO-LENGTH CHART
Model Dimension “A”
PRD6000E 1016 mm (40")
PRD7200E 1143 mm (45")
PRD8400E 1270 mm (50")
NOTE:This kit is used on other models. Use only the hardware listed below.
REF PART QTY DESCRIPTION
1 1003692RP 2 Link, Offset 9.5 x 50.8 x 381 mm (.38 x 2.0 x 15")
2 1005401 2 Chain, 9.5 mm (3/8") Proof Coil 38-Link
3 1016517 2 Sleeve, 23.8 x 36.5 x 49.2 mm (.94 x 1.44 x 1.94")
4 13563 1 Screw, 1/2 NC x 6 HHCS GR5
5 854RP* 6 Washer, 1/2" Flat
6 29368 1 Sleeve, 12.7 x 19.1 x 85.7 mm (.50 x .75 x 3.38")
7 11900RP* 1 Nut, 1/2 NC Flange Lock
8 29281 2 Sleeve, 22.2 x 28.6 x 15.1 mm (7/8 x 1-1/8 x 19/32")
9 1257* 4 Washer, 3/4 Flat
10 1003614 1 Sleeve, 20.6 x 31.8 x 46.0 mm (.81 x 1.25 x 1.81:)
11 12558* 2 Screw, 3/4 NC x 4-1/2 HHCS
12 1450* 2 Nut, 3/4 NC Plated Hex
* Standard Hardware, Obtain Locally
