REF PART QTY DESCRIPTION
A 1004111 1 Skid Shoe Kit (contains 1 left and 1
right skid shoe)
1 1004105RP 1 Skid Shoe, Left
2 1004106RP 1 Skid Shoe, Right
3 6100RP * - Screw, 1/2 NC x 1-1/4 HHCS GR5
4 11900RP * - Nut, 1/2 NC Flange Lock
* Obtain Locally

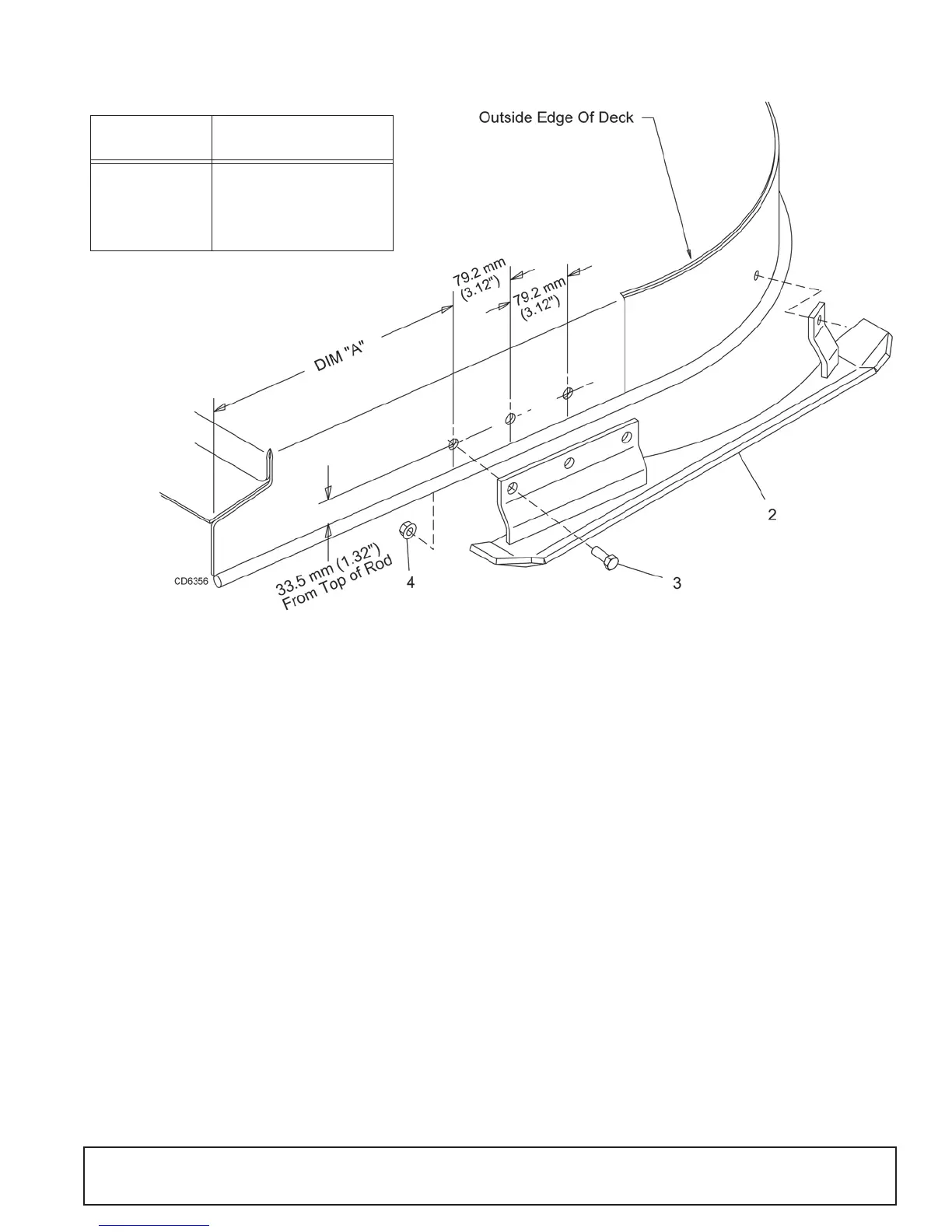

INSTALLATION INSTRUCTIONS
1. Locate and drill three .72 mm (17/32") holes using the dimensions from the drawing and table
above.
2. Secure skid shoe with three cap screws (3) and flange lock nuts (4).
3. Use the skid shoe as a guide and drill the remaining hole. Make sure skid shoe is parallel to the
top of the deck.
MOWER
DECK DIMENSION “A”
PRD6000E 9.8 mm (7.25")
PRD7200E 12.9 mm (9.50")
PRD8400E 16.6 mm (12.25")
