Protection:
• Current limitation – limit can be adjusted via a potentiometer (IEXC.)
• Over-temperature protection – as the heat sink temperature crosses a
threshold ”EX-10“ output shuts-o
• Short-circuit protection – when transient current output exceeds a threshold,
the ”EX-10 decreases“ the excitation output to below 0.2A until shutdown
Scope of delivery
The following parts are included in the scope of delivery. Please check prior to the
installation that all parts are present.
Fig. 2: Dimension ”easYgen 3500XT“ with ”easYgen | exciter-10“

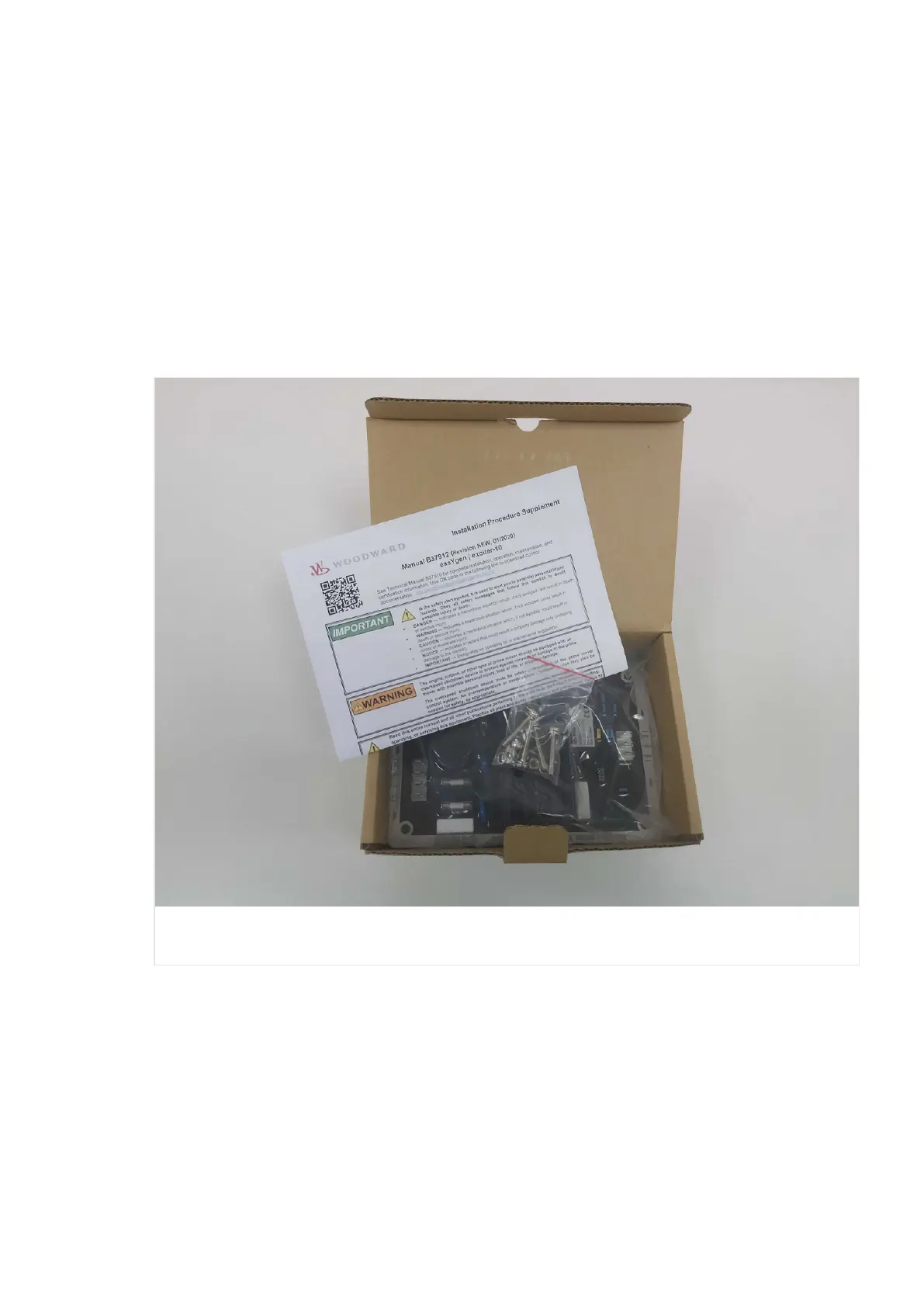

The following parts are included in the covering box. Please check prior to the installation
that all parts are present:
• exciter-10 module
• »Installation Procedure Supplement« paper with links to the latest edition of
Technical Documentation and software for download:══▷ B37912_ISP_exciter-10_A
•
Screw kit installation material
4 easYgen | exciter-10 B37910
