Overview of the BC10 basic controller
6720813172 (2015/04)4
4 Overview of the BC10 basic controller

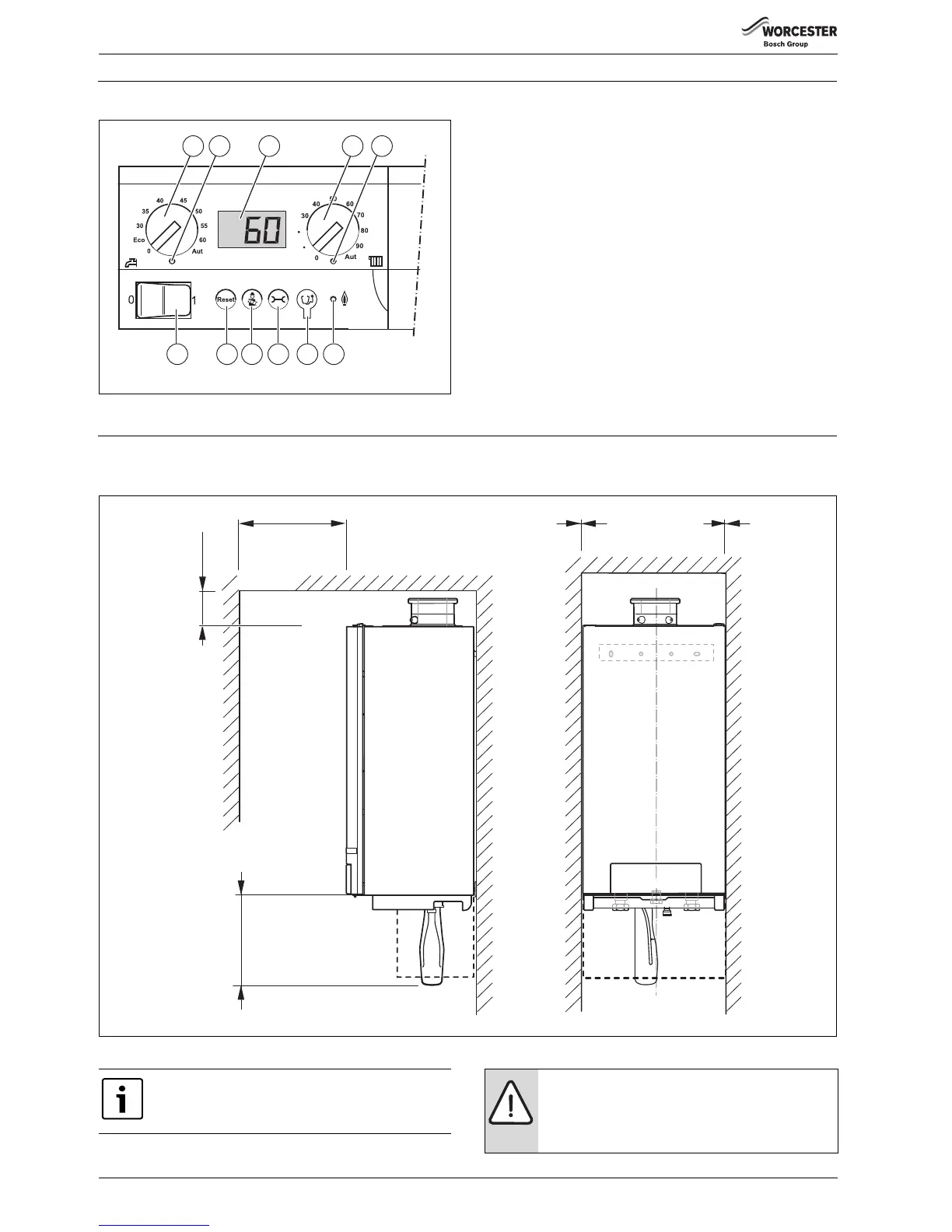

Fig. 1 BC10 basic controller
[1] Mains switch (boiler On/Off)
[2] c “Reset” button (fault reset button)
[3] d Chimney sweep button (for manual operation)
[4]
e Service button
[5] Service Connector
[6] G “Burner LED” (On/Off)
[7]
R “Heat demand” LED
[8] Maximum CH (boiler) flow temperature dial
[9] Display (for status indication)
[10]
S “DHW mode” LED
[11] DHW temperature dial
5 Service Clearances
The boiler must be located in an area with the following service clearances.
Fig. 2 Clearances
6 720 648 727-001.1TD
11 10 9 8 7
65432
1
550 mm
40 mm
250 mm
(100 mm below
pump group)
0 mm 0 mm
6 720 648 727-002.1TD
Your installer will have provided adequate space around
the boiler for safety and servicing access.
CAUTION: Restricted space.
The boiler may overheat.
▶ Do not restrict this space with the addition of
cupboards, shelves etc. next to the boiler.
