▶ Lay the pump connection cable from the boiler through the hole
under the electrical connection box downwards ( fig. 20, [1] and
fig. 21, [1]).

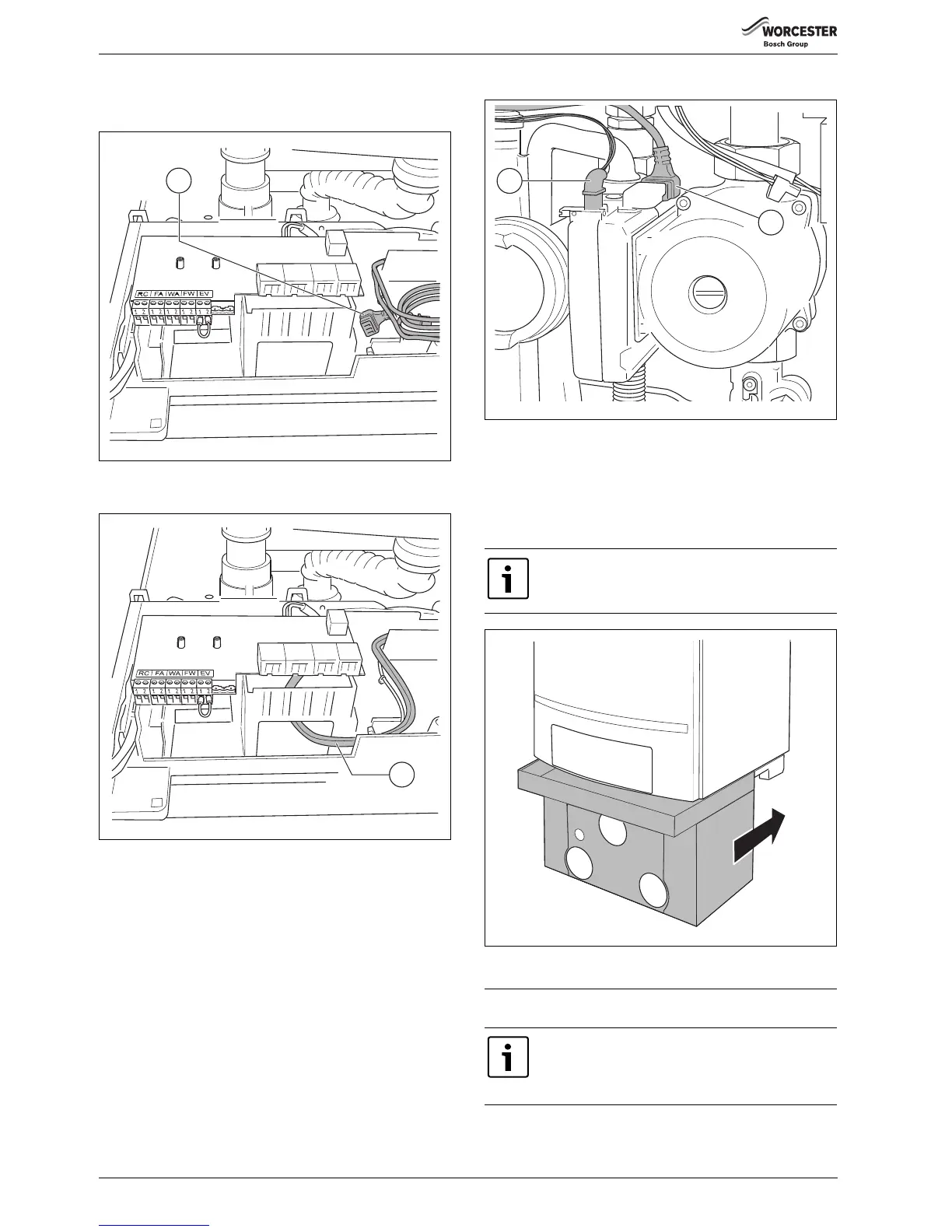

Fig. 20 Laying the pump connection cable
[1] Pump connection cable
Fig. 21 Laying the pump connection leads
[1] Pump connection cable
▶ Connect the tacho cable connector [1] to the pump.
▶ Connect the mains cable connector [2] to the pump.
Fig. 22 Connecting the pump
[1] Tacho cable connector
[2] Mains cable connector
5.10 Installing the insulation cover
▶ Feed the insulation cover with its upper edge into the groove in the
lower support.
Fig. 23 Installing the insulation cover
6 Commissioning
The door over the boiler control panel must be closed.
See the Installation and servicing instructions of the
boiler assembly for commissioning instructions.
Observe the safety instructions and take the relevant
measures.
