Controls
GREENSTAR HIGHFLOW CDi
ErP
– 6 720 815 063 (2015/05)
3 CONTROLS
▶ To gain access to the boiler controls pull the flap down.

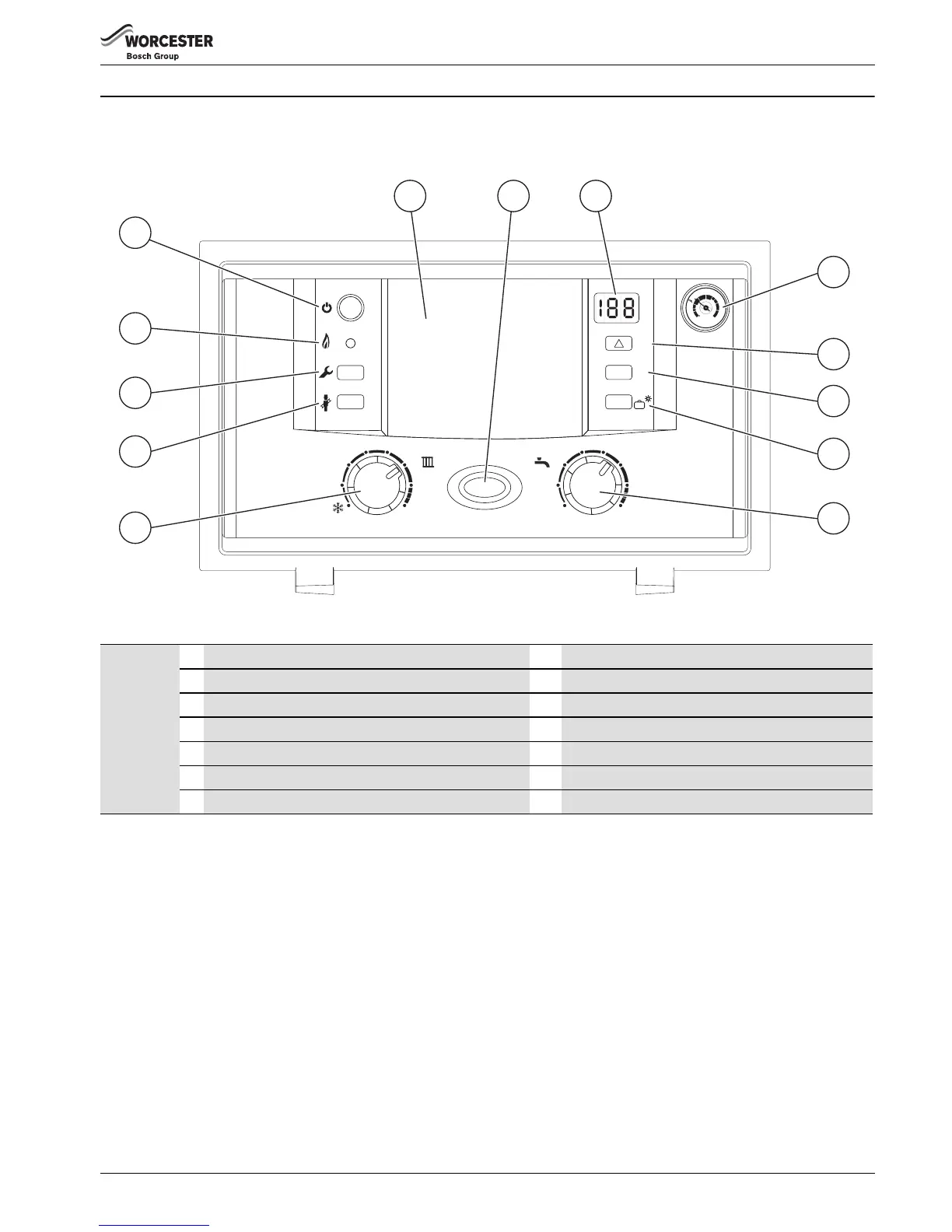

Fig. 1 Basic boiler controls
Boiler
Controls
1
Master switch for ON/OFF 8 Not used
2
Position for optional programmer 9 Hot water temperature control
3
Power ON and fault indicator (blue) 10 Central heating temperature control
4
Boiler display 11 Service Engineer button only
5
System pressure gauge 12 Service Engineer button only
6
Reset button 13 Burner ON indicator light (green)
7
ECO button (Domestic Hot Water pre-heat control)
