INSTALLATION
INSTALLATION & SERVICING INSTRUCTIONS
21

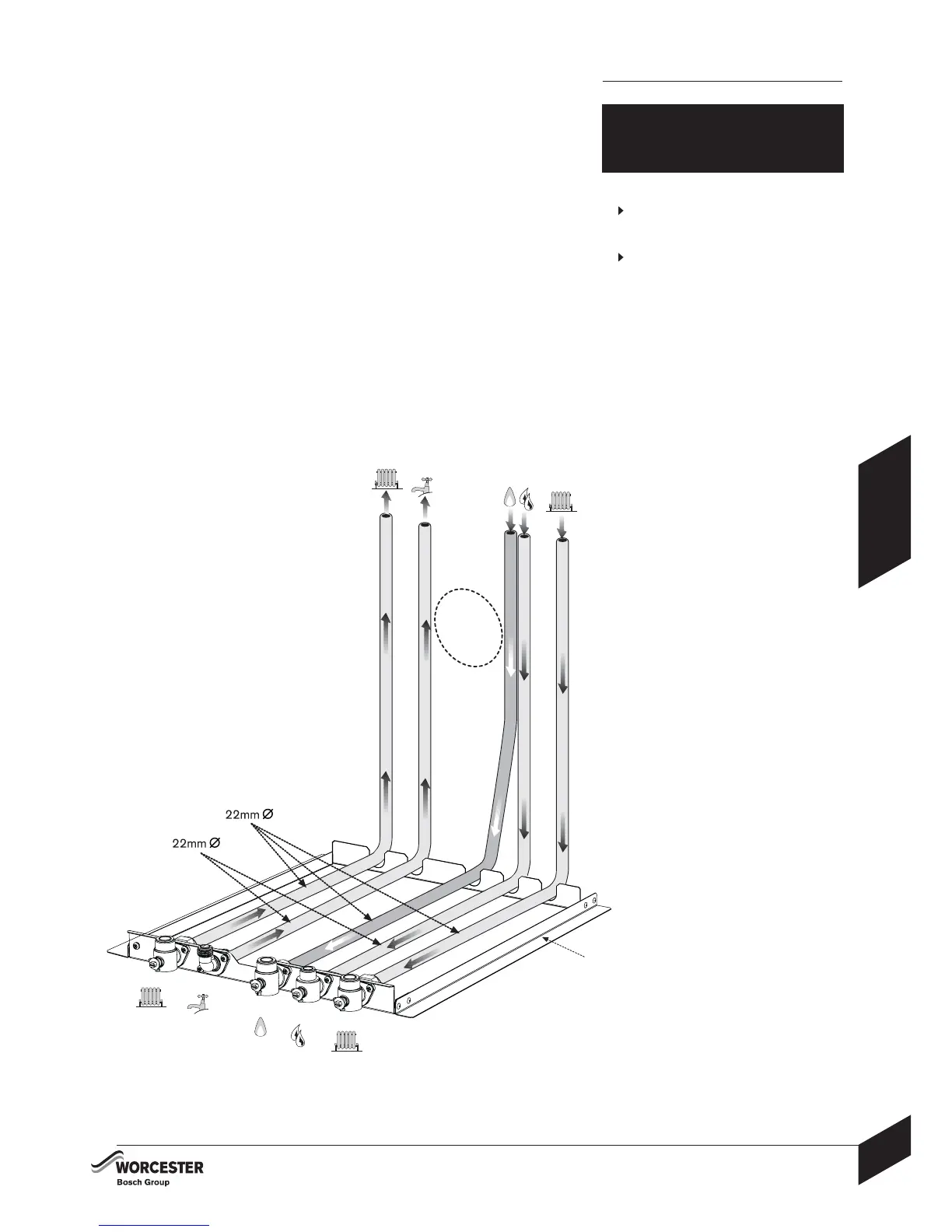

MOUNTING FRAME CONNECTIONS
8 716 115 219c (03.2010)
CAUTION: ISOLATE THE MAINS GAS
SUPPLY BEFORE STARTING ANY WORK
AND OBSERVE ALL RELEVANT SAFETY
PRECAUTIONS.
GAS AND WATER CONNECTIONS:
Ensure all pipework is clean and each
pipe is in the correct position as shown
opposite.
Push in each pipe in turn and tighten the
fitting to secure.
A - CH flow (22mm)
B - DHW flow (22mm)
C - Gas inlet (22mm)
D - Mains water inlet (22mm)
E - CH return (22mm)
F - Mounting frame.
MOUNTING FRAME
CONNECTIONS
A
B
C
D
E
F
