SERVICING

& SPARES

INSTALLATION & SERVICING INSTRUCTIONS

SHORT PARTS LIST

8 716 115 219c (03.2010)

SHORT PARTS LIST

1a Burner skin seal:

Part No. 8 711 004 168 0 (GC No. E27 201)

1b Burner:

Part No. 8 718 006 658 0 (GC No. E27 200)

2 Fan assembly:

440CDi:

Part No. 8 717 204 410 0 (GC No. H66 918)

550CDi:

Part No. 8 717 204 453 0 (GC No. H26 536)

3 Circulating Pump assembly:

Part No. 8 718 681 477 0 (GC No. H66 929)

4 Diverter valve assembly:

Part No. 8 716 106 845 0 (GC No. H02 533)

5 Diverter valve motor:

Part No. 8 716 106 847 0 (GC No. H02 534)

6 Flow sensor:

Part No. 8 717 002 132 0 (GC No. H21 232)

7 Flow regulator:

440CDi Type E 20 litre Beige:

Part No. 8 717 002 135 0 (GC No. H21 235)

550CDi Type E 25 litre light grey:

Part No. 8 718 681 198 0 (GC No. H66 928)

8 Temperature sensor primary:

Part No. 8 714 500 087 0 (GC No. E74 536)

9 Temperature limit (Flue or heat exchanger):

Part No. 8 722 963 858 0 (GC No. H08 291)

10 Thermistor sensor (DHW):

Part No. 8 716 142 302 0 (GC No. 375 696)

11 Thermister sensor (tank):

Part No. 8 716 142 319 0 (GC No. 379 785)

12 Overheat thermostat (Tank):

Part No. 8 716 103 217 0 (GC No. E82 394)

13 Heat exchanger:

440CDi:

Part No. 8 716 108 212 0 (GC No. H22 465)

550CDi:

Part No. 8 718 680 648 0 (GC No. H66 931)

14 Gas valve:

Part No. 8 718 221 347 0 (GC No. H56 469)

15 Condensing Pump:

Part No. 8 716 114 077 (GC No. H66 921)

16 Pressure relief valve:

Part No. 8 716 142 416 0 (GC No. 386 789)

17 Pressure gauge:

Part No. 8 718 680 742 0 (GC No. H66 930)

18 Auto air vent:

Part No. 8 716 140 500 0 (GC No. E00 717)

19 Electrodes:

Part No. 8 718 107 087 0 (GC No. E74 535)

20 Expansion vessel:

Part No. 8 715 407 288 0 (GC No. H21 242)

21 Control board:

Part No. 8 748 300 606 0 (GC No. H66 923)

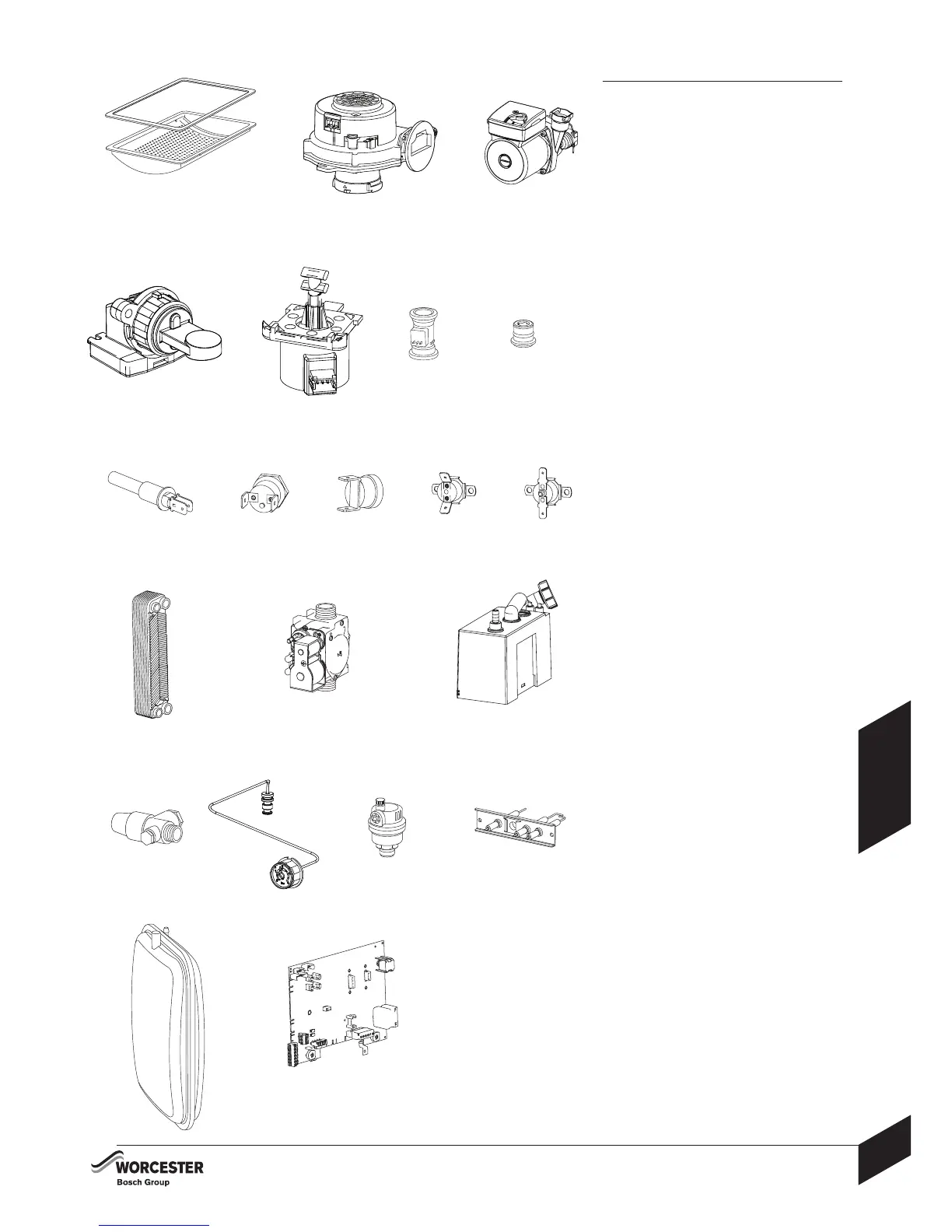

89101112

4567

13 14 15

16 18 19

20 21
