Workshop WS1600SS - ACCESSORY STORAGE & ASSEMBLY; Storing Accessories and Hose; Using the Locking Sleeve; Power Cord Management

10

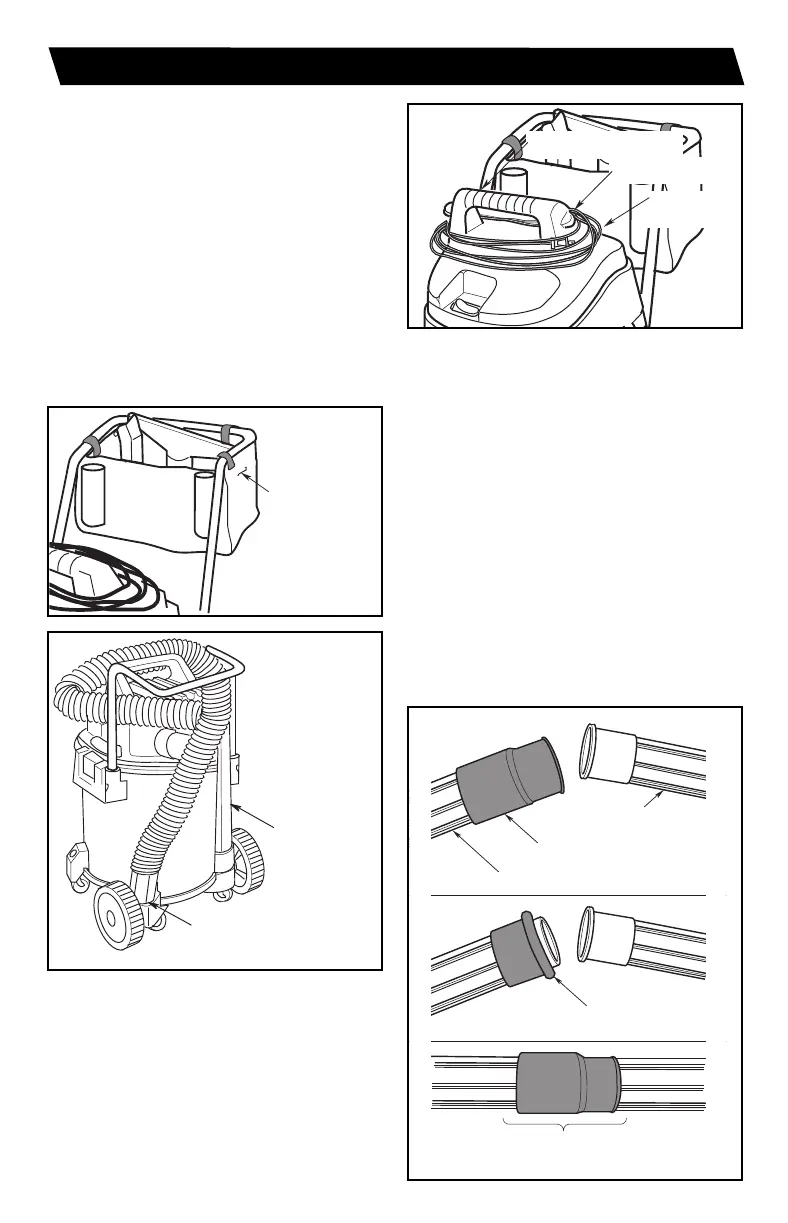

ACCESSORY STORAGE & ASSEMBLY
Accessory
Bag
Your accessories may be stored in the
accessory bag, or in the two locations on
the caddy right/left. Either the hose or the
wands may be stored in the two areas
marked Hose Storage.
The hose may be stored by wrapping it
around the unit and plugging the open end
into one of the storage locations on the
caddy assembly. Alternatively, the wands
may also be stored in this location by
plugging either of the ends of the wands
onto the storage receivers located on the
caddy.
Hose Storage
Area
Extension
Wand
Storage
H
o
s
e
S
to
r
a
g
e
H
o
s
e
S
to
r
a
g
e
Push/Pull Handle
Cord Wrap
Power
Cord
Cord Wrap
When vacuuming is complete, unplug the
cord and wrap it around the handle as
shown.
Extension Wand
Locking Sleeve
Extension
Wand
Locking Sleeve and Extension
Wands Engaged
Locking Sleeve
Rolled Back
Locking Sleeve
The Locking Sleeve is designed to
provide added strength in accessory
connections.
The Locking Sleeve can be used when
connecting:
• Extension wand to extension wand
(shown)
• Hose to extension wand
• Extension wand to nozzle
To install the Locking Sleeve: slip Locking
Sleeve over accessory end, roll sleeve
back to expose accessory end, attach
accessory and unroll sleeve over
attached accessory.
