Grass Trimmer/Edger
WG169E WG169E.5
WG169E.9
ASSEMbLY

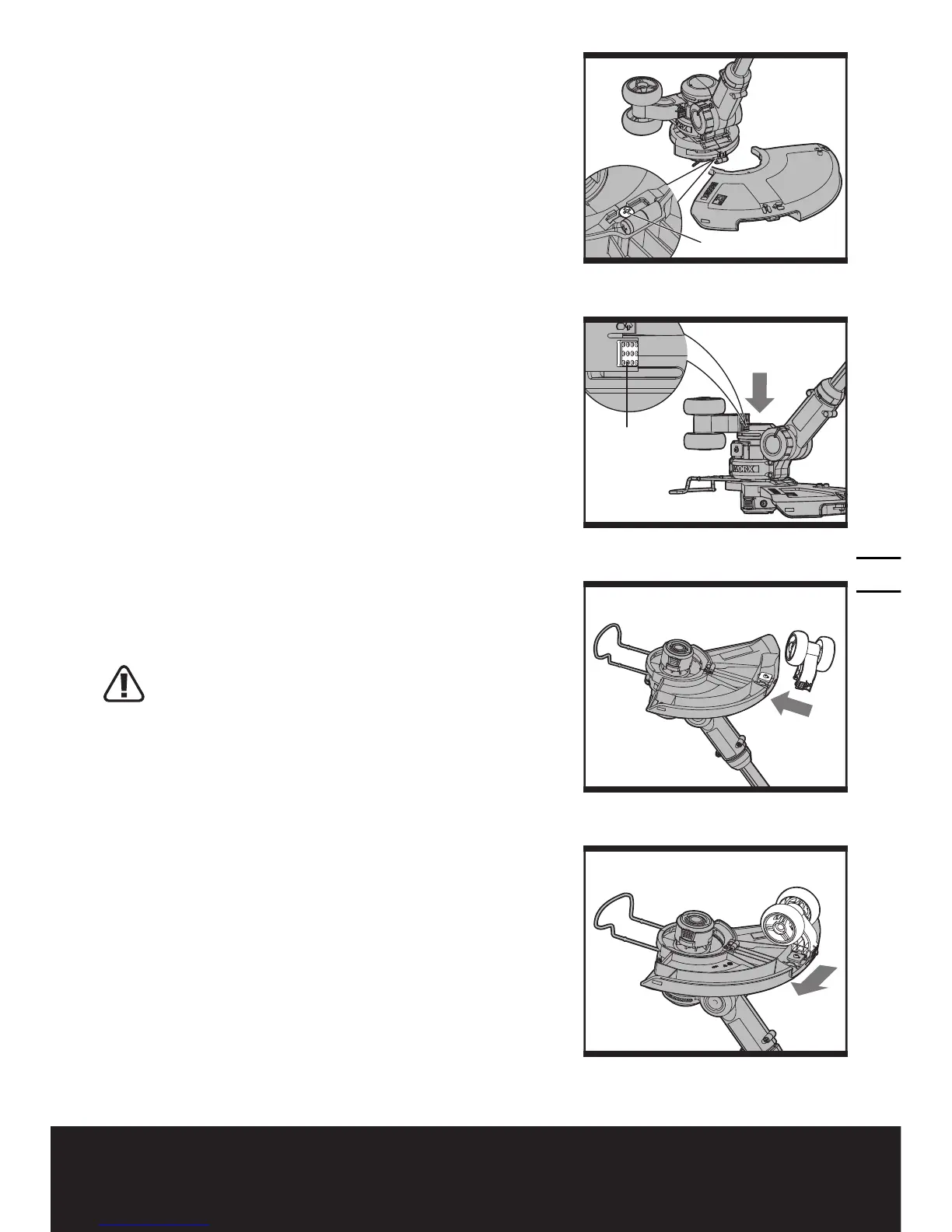

1. ASSEMBLY OF THE SAFETY GUARD
(See Fig. A)
Remove a screw from the Guard; attach the Safety
Guard to the trimmer head. Align the Guard so it slides
into the slots located on the trimmer head. Turn the tool
over and secure the Safety Guard onto the trimmer
head with the screw (a) provided.
2. ASSEMBLY OF THE EDGE /TRIMMING
SUPPORT WHEELS (See Fig. B1, B2, B3)
With the tool right side up, slide the Edge /Trimming
Support Wheels (12) assembly onto the metal plate
located on the side of the Cutting Head (See B1) or
underneath the Safety Guard(5) (See B2, B3). Make
sure the grooves of the Edge /Trimming Support
Wheels assembly locks onto the metal plate, you will
hear it click into place.
To remove the wheel assembly, press the release
button (b) on the wheels and pull the wheels outside.
OPERATION INSTRUcTIONS
INTENDED USE
The machine is intended for the cutting of grass and
weeds under bushes, as well as on slopes and edges
that can not be reached with the lawn mower.
WARNING! The charger and Battery Pack are
specially designed to work together so do not
attempt to use any other devices. Never insert or allow
foreign metallic objects into your charger or Battery
Pack connections because of electrical failure and other
hazards that will occur.
1. BEFORE USING YOUR CORDLESS GRASS
TRIMMER
Your Battery Pack is UNCHARGED and it must be fully
charged once before it is used.
The battery charger supplied is matched to the Li-Ion
battery for use with this tool. Do not use another
battery charger.
2. CHARGING YOUR BATTERY PACK
The Li-Ion battery is protected against deep
discharging. When the battery is empty, the trimmer
will switch off by means of a protective circuit: The
trimmer head will stop rotating.
NOTE: In a warm environment or after heavy use, the
a
b
