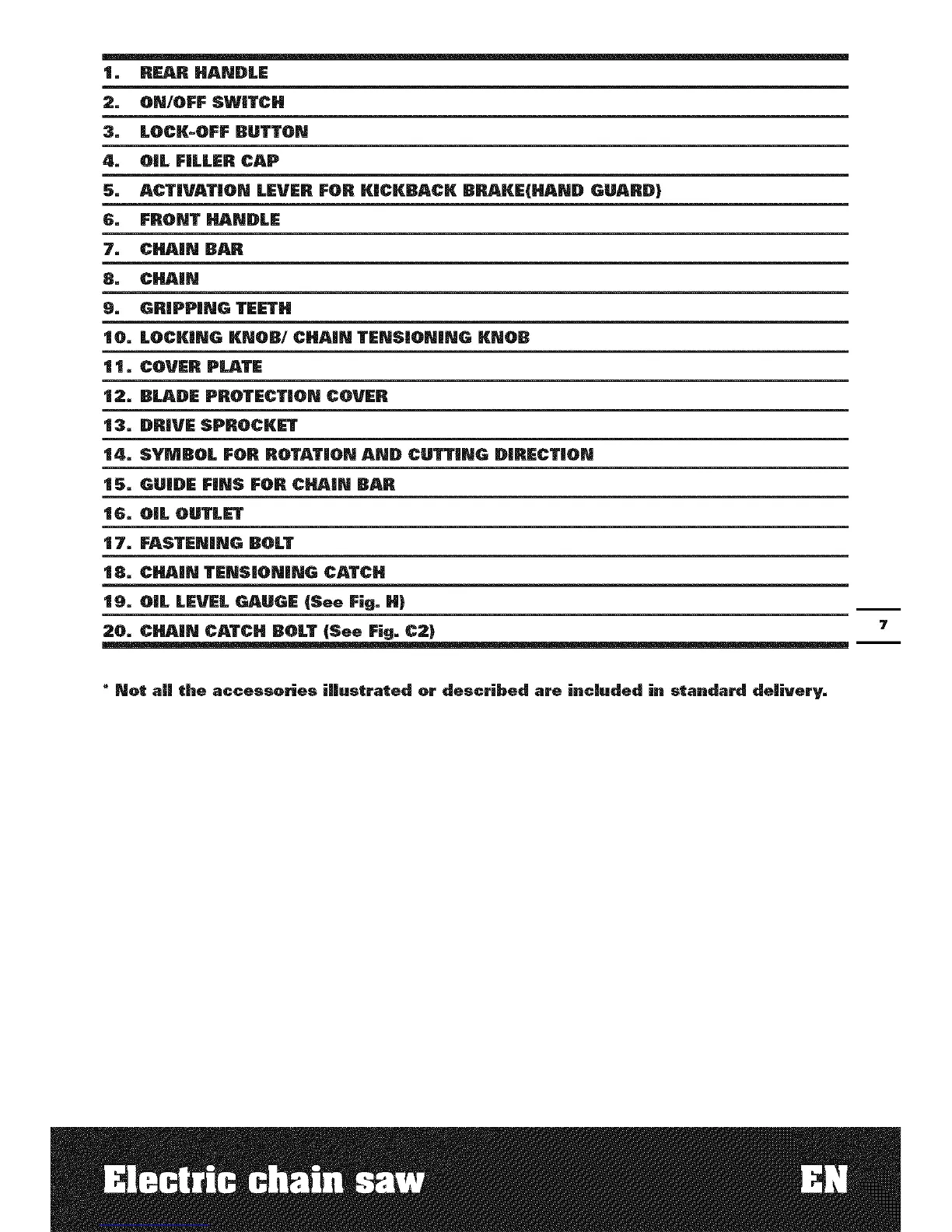

1. R_R HANDLE
2. ON/OFF SWITCH
3. LOCK-OFF BUTTON
4. OiL FILLER CAP
5. ACTiVATiON LEVER FOR KICKBACK BRAKE{HAND GUARD)
G. FRONT HANDLE
7. CHAIN BAR
8. CHAIN
9. GRiPPiNG TEETH
10. LOCKING KNOB/CHAIN TENSIONING KNOB
11. COVER P_TE
12. B_DE PROTECTION COVER
13. DRIVE SPROCKET
14. SYMBOL FOR ROTATION AND CUTTING DiRECTiON
15. GUIDE FiNS FOR CHAIN BAR
IG. OIL OUTLET
17. FASTENING BOLT
18. CHAIN TENSIONING CATCH
19. OIL LEVEL GAUGE (See Fig. H)
20. CHAIN CATCH BOLT (See Fig. C2)
* Not aJ| the accessories illustrated or described are JncJuded in standard de|Jvery.
