44

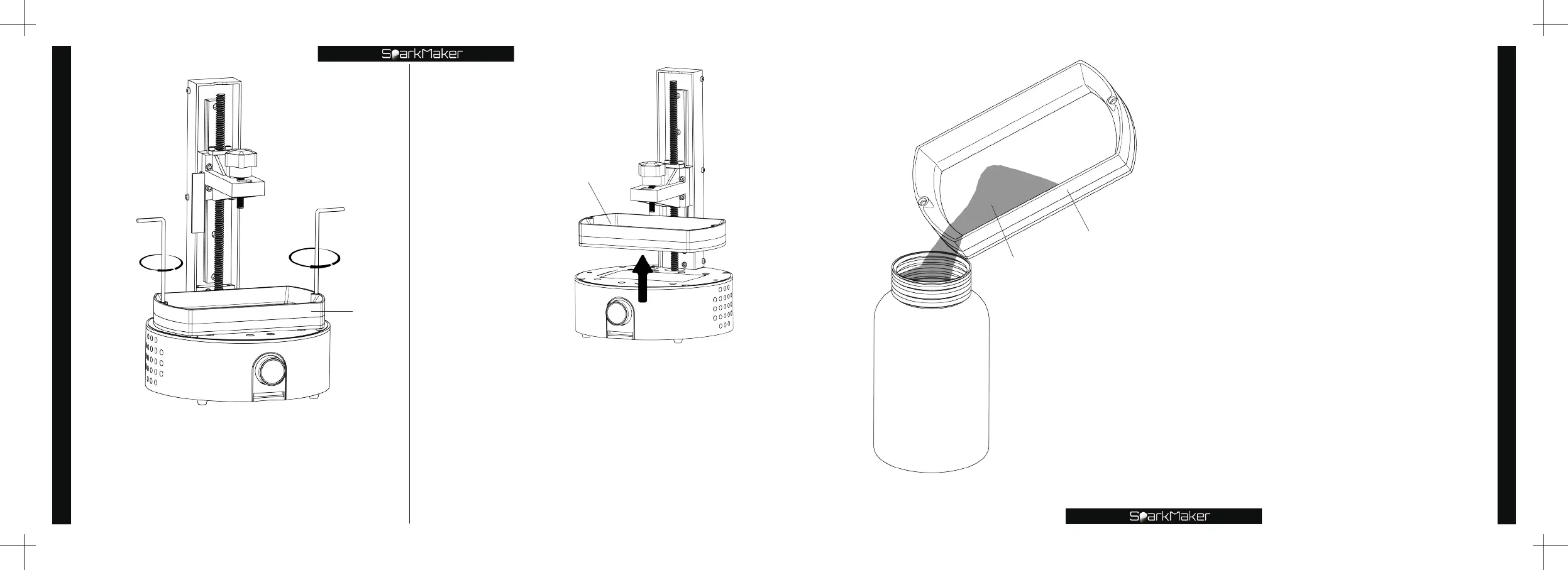

Use the big hex wrench to unscrew
the screws on both sides of the
tank counterclockwise.
＊
Notice:
Please remove the printing platform first.
Remove the tank.
Tank
Tank
Big hex wrench
Big
hex wrench
＊
Notice:
❶
Please remove the printing platform first.
❷
When removing the tank
,
do not drop the resin
on the outer wall of the tank
,
the mounting screw
holes
,
the working panel
,
the outer casing and the
cover,and the installation interspace.
❸
Do not scratch the FEP film at the bottom of the
tank when removing the tank.
❹
Please place the removed tank properly on a
clean and soft surface to avoid damage.
Recycled resin and tank cleaning
Pour the remaining resin in the
tank into the prepared resin
storage container along a corner
of the tank.
＊
Notice:
❶
Please seal the poured resin in a dark
place.
❷
Please clean the resin on the outer wall of
the tank in time to avoid damage to the LCD
screen.
45
Tank
Resin
Resin bottle
Recycled resin and tank cleaning
