Wow SparkMaker User Manual

74

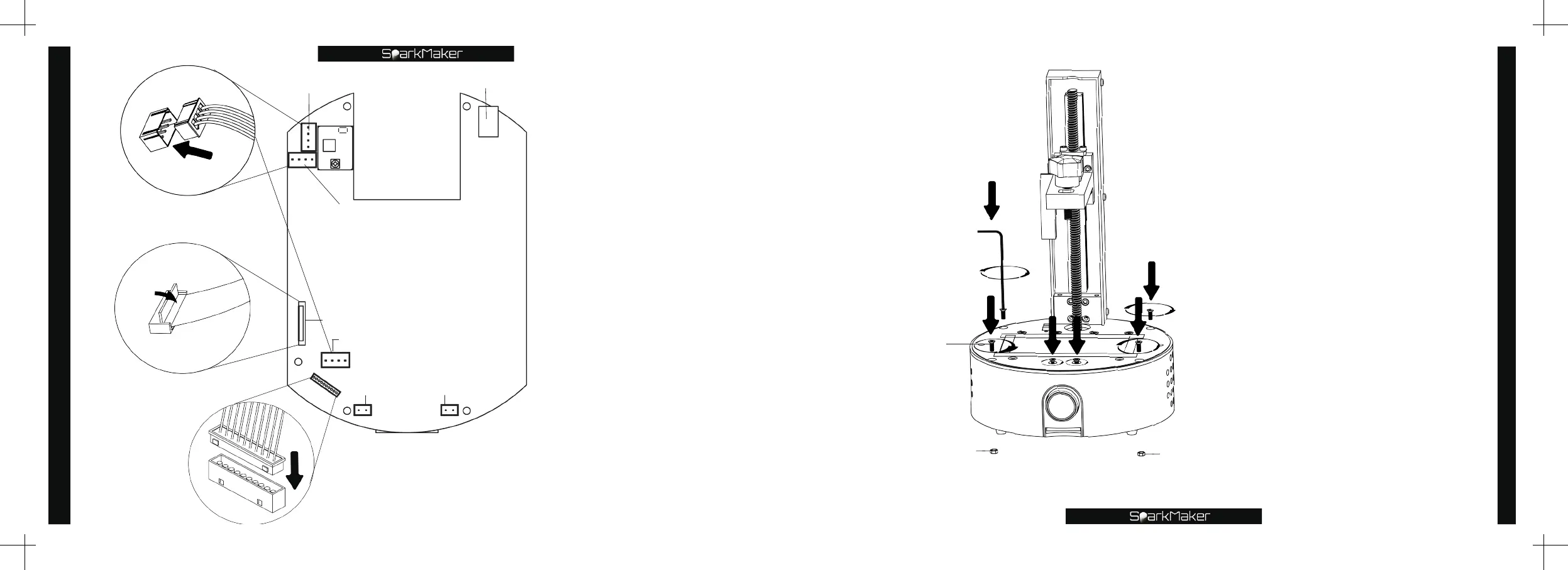

Replace the light board
(
As shown
) Press
down on the FPC
connector
,
connect the
LCD cable
,
and insert
the four-wire plug
of the photoelectric
switch
,
stepper motor
and light board
downwards
,
and insert
the ten-wire plug of
the knob downward.
＊
Notice:
Please carefully open the
FPC interface and carefully
pull out the plug
,
do not tear
the cable.
Four-wire plug
FPC cable
Ten wire plug
Fan interface
Light board interface
LCD interface
Photoelectric
switch interface
Motor interface
DC input
75
Slowly lower the Z-axis
and working panel and
close the housing. Plug
the four M3 nuts on the
bottom of the housing
back into the bottom
mounting holes
,
and then
tighten the six flat head
screws shown.
Small hex wrench
Flat head screw
M3 nut
M3 nut
Replace the light board
SparkMarker FHD
Mainboard
