wto 4201 - Changing the QuickFlex Adapter

www.wto-tools.com 13
ER-20QF ER-25QF ER-32QF ER-40QF ER-50QF
70 Nm 90 Nm 110 Nm 150 Nm 180 Nm
52 ft-lb 66 ft-lb 81 ft-lb 111 ft-lb 133 ft-lb
Recommended tightening torque of the clamping nut for adapters

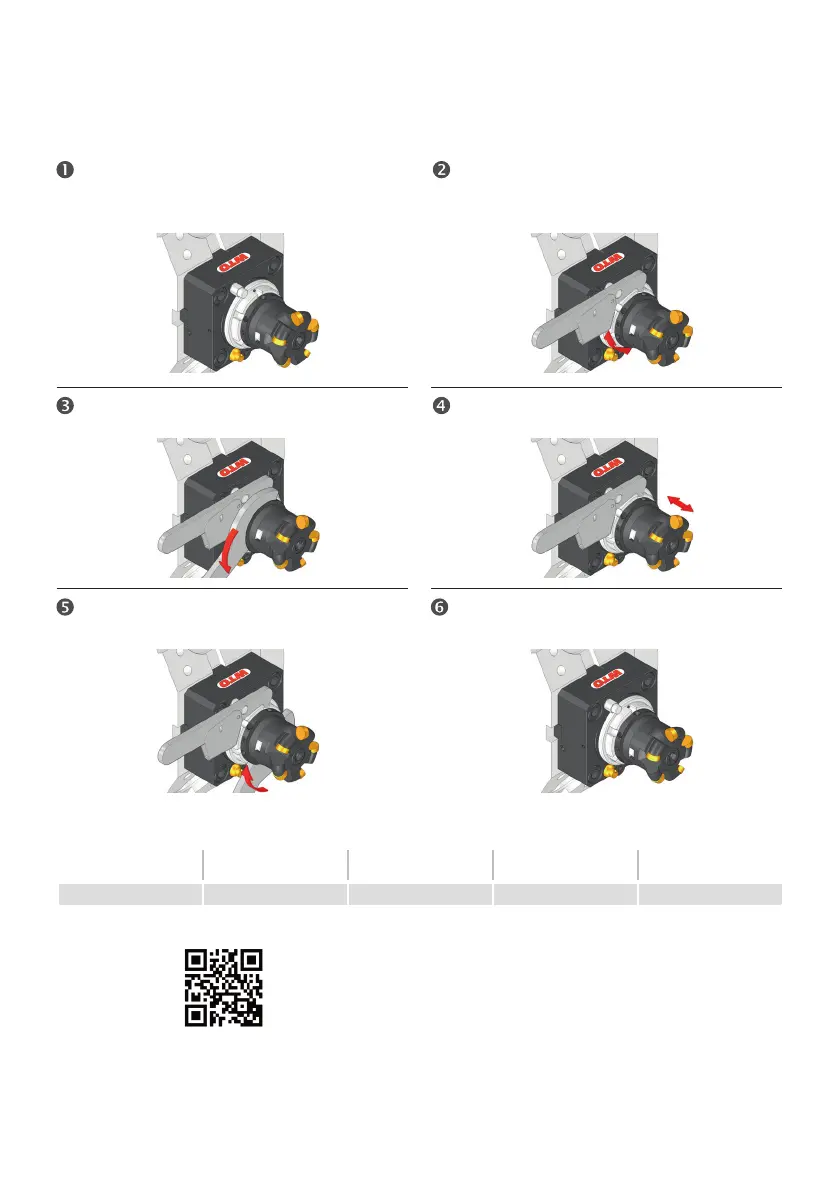

3.4 Changing the QuickFlex
®
adapter
Rotate turret into machining position
(released machine drive)
Put on one-hand wrench and rotate DTH
spindle by hand until it locks into the
spindle nose
Release clamping nut with spanner
wrench
Change QuickFlex
®
adapter
Tighten clamping nut with spanner
wrench. Follow torque recommendation!
Remove spanner wrench and one-hand
wrench
Watch video:
