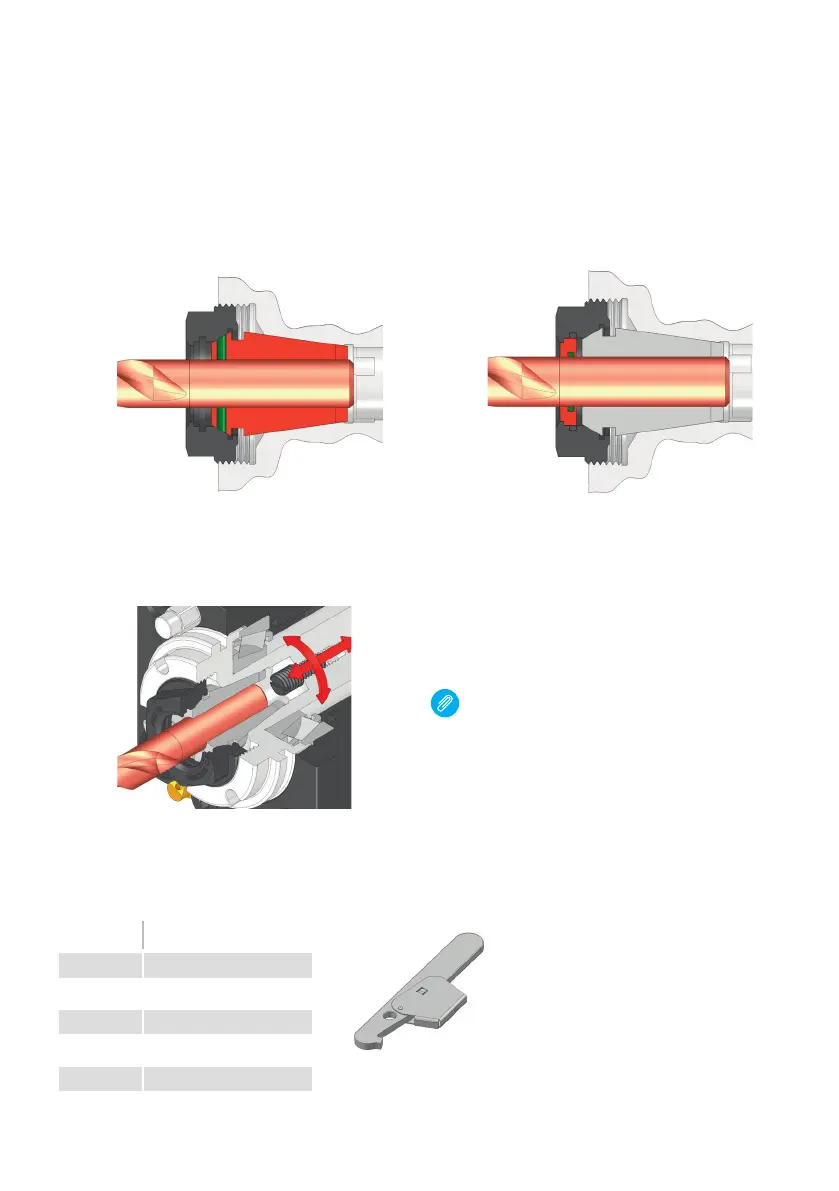

3.9 Collet solutions for DTH’s with internal
coolant supply
For DTH’s with internal coolant supply use:
Sealed ER collets (WTO type 1910…)
or Standard ER collets (WTO type 1900…)
in combination with seal washer
(WTO type 2101…)
3.10 Adjusting the projection length of the cutting tool
Turn screw inside the DTH spindle to adjust
the projection length of the cutting tool.
NOTICE
Remove stop screw from spindle when using
QuickFlex
®
adapter.
3.11 One-hand wrench
Size Item No.
20 107720000
25 107725000
32 107732000
40 107740000
50 107750000
For driven toolholders: to
hold the QuickFlex
®
spindle
when tightening.
