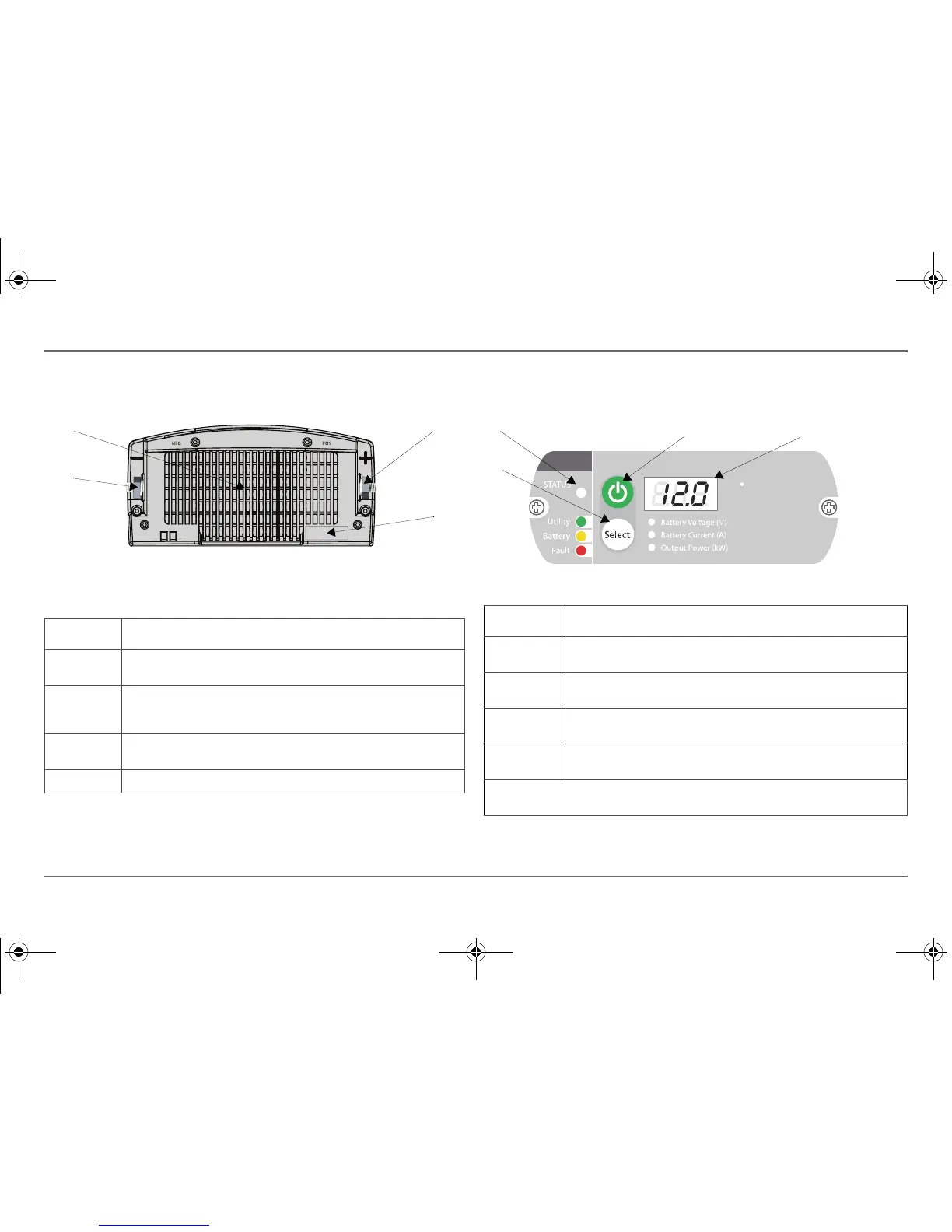

Feature Description
1 Negative DC cabling terminal connects to the negative terminal of the
battery using a battery cable.
2 Ventilation grille (openings) mus
t not be obstructed for the proper operation
of the cooling fan and inverter. When the inverter is mounted, the ventilation
grille must not point up or down.
3 Positive DC cabling terminal connects to the positive terminal of the battery
usin
g a battery cable.
4 Serial number of you
r unit.
Display Panel (All Models)
Feature Description
1 Inverter Power button is the main unit switch that turns the Freedom Xi’s
inverter mode ON or OFF. See page 11 for additional information.
2 Three-digit LED display screen show
s status information and fault codes.
See page 11 for additional information.
3 Status LED ind
icates the mode of operation with a three-color LED. See
page 11 for additional information.
4 Select button changes s
tatus information displayed on the display screen. See
page 11 for additional information.
IMPORTANT:
See “Display Panel Operation” on page 11 for detailed information on operating
the panel’s buttons.
