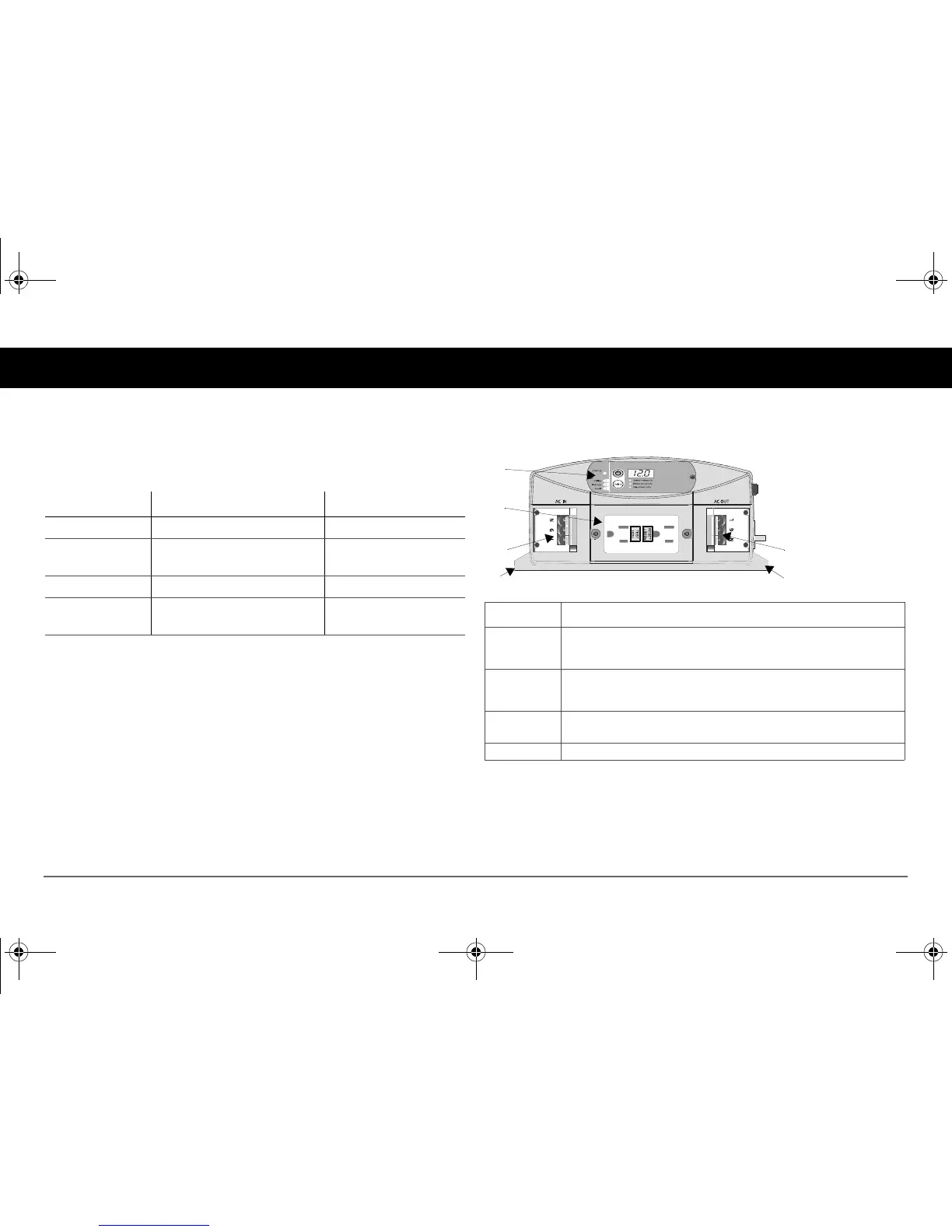

4 Freedom Xi Owner’s Guide
Features
Table 1 lists the default settings for the Freedom Xi system.
You may record your settings in th
e right-hand column after you
have configured the Freedom Xi.
Table 1 Freedom Xi Default Values
Item Default Setting Your Setting
Alarm*
ON ()
Low Voltage
Shutdown*
Invert Mode*
Inverter Ignition
Control
OFF
* adjustable from the display panel
Front Panel (All Models)
Feature Description
1 Display panel displays inverter status and battery status information on the
screen. The panel can be detached to extend and mount the panel on a wall or
other location.
2 GFCI receptacles duri
ng inverter mode provide 1000 watts (Freedom Xi
1000 models) or 2000 watts (Freedom Xi 2000 models) of power to operate
AC devices.
3
WA GO
a
a. WAGO manufactures connection devices such as terminal blocks and related accessories.
Freedom Xi models indicated above use WAGO terminal blocks as AC input and output con-
nections.
AC terminals (with terminal inspection covers) for c
onnecting
AC input (3a
) and AC output (3b) wiring.
4 Mounting flange allo
ws you to mount the inverter permanently.
