Xantrex Trace C Series User Manual

©2000 Xantrex Technology Inc.

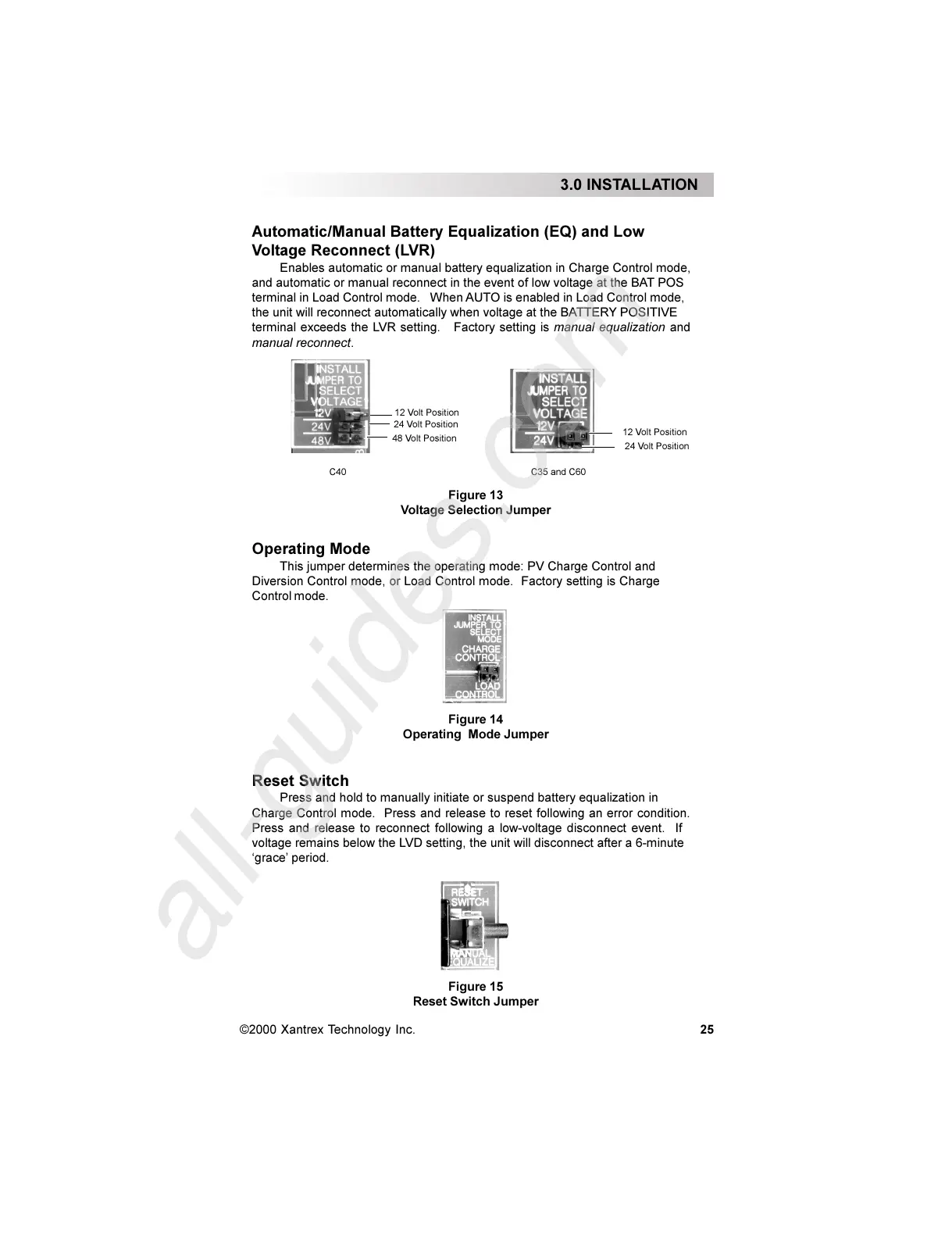

Automatic/Manual Battery Equalization (EQ) and Low
Voltage Reconnect (LVR)
Enables automatic or manual battery equalization in Charge Control mode,
and automatic or manual reconnect in the event of low voltage at the BAT POS
terminal in Load Control mode. When AUTO is enabled in Load Control mode,
the unit will reconnect automatically when voltage at the BATTERY POSITIVE
terminal exceeds the LVR setting. Factory setting is manual equalization and
manual reconnect.
Operating Mode
This jumper determines the operating mode: PV Charge Control and
Diversion Control mode, or Load Control mode. Factory setting is Charge
Control mode.
Reset Switch
Press and hold to manually initiate or suspend battery equalization in
Charge Control mode. Press and release to reset following an error condition.
Press and release to reconnect following a low-voltage disconnect event. If
voltage remains below the LVD setting, the unit will disconnect after a 6-minute
grace period.
Figure 13
Voltage Selection Jumper
Figure 14
Operating Mode Jumper
Figure 15
Reset Switch Jumper
12 Volt Position
24 Volt Position
12 Volt Position
24 Volt Position
48 Volt Position
C40 C35 and C60
25
3.0 INSTALLATION
