2.0 INSTALLATION
©2000 Xantrex Technology Inc.

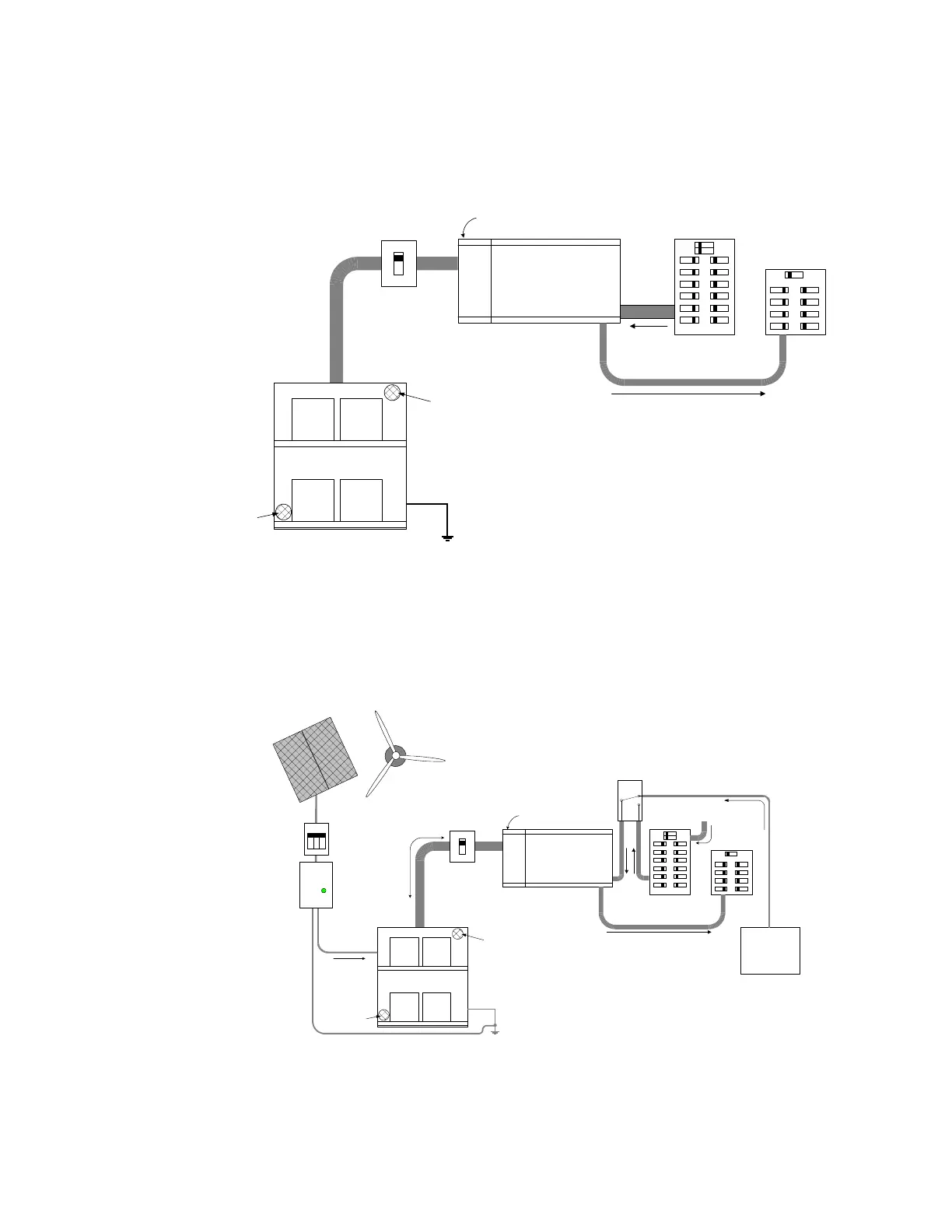

Figure 5
Planning Example Layout
Basic Setup
Figure 6
Planning Example Layout
RE Setup
Pre-Installation (continued)
MAIN PANEL
SUB-PANEL
INVERTER/CHARGER
AC CONDUIT
FROM MAIN
PANEL
AC CONDUIT TO SUB-PANEL
DC CONDUIT
(if used)
CONDUIT
BOX
(if used)
BATTERIES
BATTERY
ENCLOSURE
(if used)
975-0012-001
DC
DISCONNECT
VENT
(outlet)
VENT
(inlet)
MAIN PANEL
SUB-PANEL
INVERTER/CHARGER
AC CONDUIT
AC CONDU IT TO SUB-PANEL
DC CONDUIT
(if used)
CONDUIT
BOX
(if used)
BATTERIES
BATTERY
ENCLOSURE
(if used)
975-0012-002
DC
DISCONNECT
VENT
(outlet)
VENT
(inlet)
DC
GROUND
MANUAL AC
TRANSFER
SWITCH
AC GENERATOR
(externally located)
DC
DISCONNECT
AND PVGFP
DC CHARGE
CONTROLLER
ALTERNATE DC ENERGY SOURCES
SOLAR
WIND
AC CONDUIT
FROM GENERATOR
DC CONDUIT
(if used)
DC GROUND
WIRE
N.C.
N.O.
COM.
UTILITY
