1
1.0 INTRODUCTION
©2000 Xantrex Technology Inc.
Thank you for purchasing the DR Series inverter/charger from Xantrex Technology Inc. The
DR Series is one of the finest inverter/chargers on the market today, incorporating state-of-the-art
technology and high reliability. The inverter features an AC pass-through circuit, powering your
home appliances from utility or generator power while charging the batteries. When utility power
fails, the battery backup system keeps your appliances powered until utility power is restored.
Internal protection circuits prevent over-discharge of the batteries by shutting down the inverter
when a low battery condition occurs. When utility or generator power is restored, the inverter
transfers to the AC source and recharges the batteries.
The front panel features LEDs for reading system status, and controls to customize the inverter
settings for your battery bank.

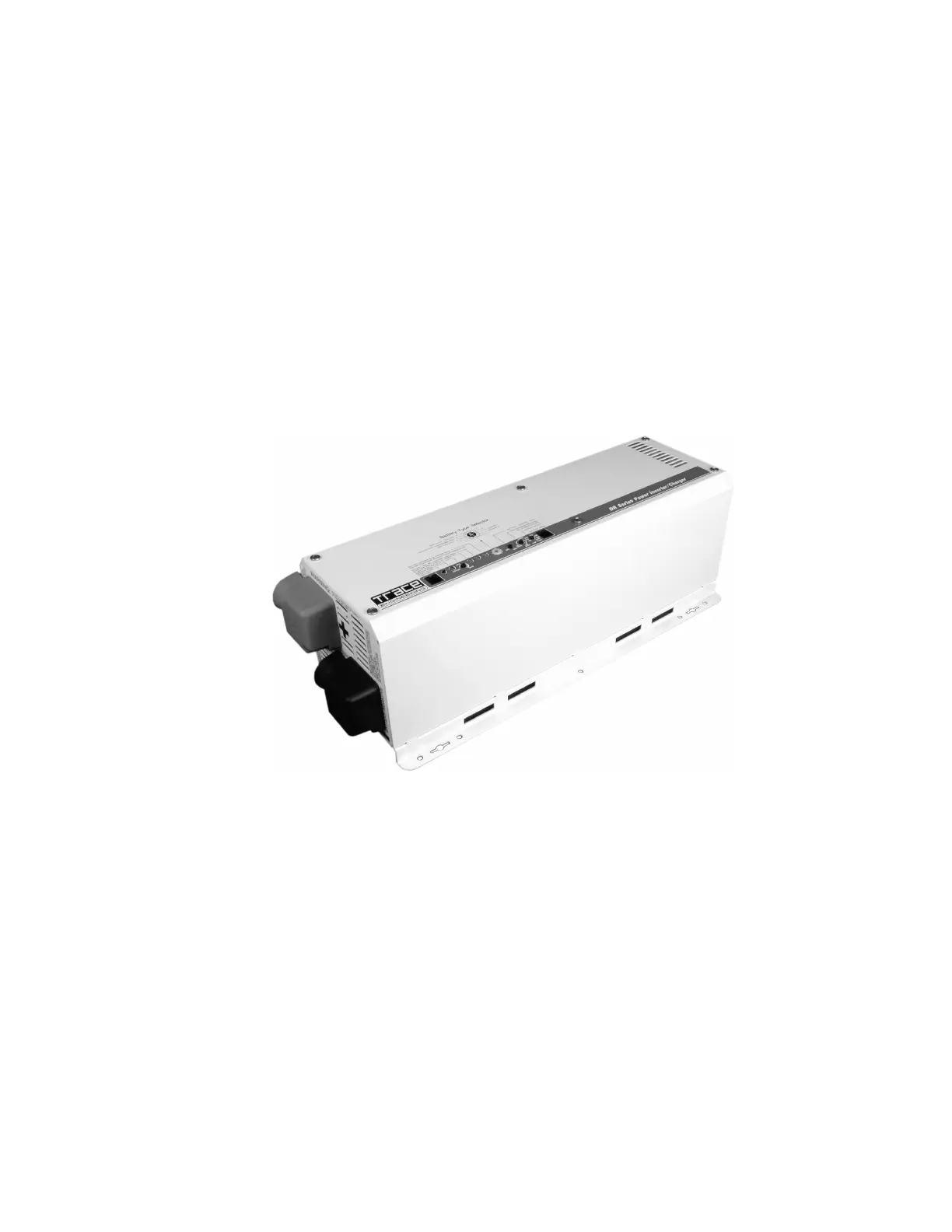

Figure 1
The DR Series Inverter/Charger
