3.0 OPERATION
49
©2000 Xantrex Technology Inc.
Start-up
Once the inverter is properly connected to the batteries, utility (or generator) and loads (via a
sub-panel) the inverter is ready for operation. Recheck the controls (previously discussed) and
ensure they are in the proper position. Recheck all wiring and ensure it is correct.
Starting the inverter:
Apply DC power to the inverter by switching on the DC disconnect circuit breaker. The
inverter will go through a self-test and then shut OFF.
Apply AC power to the inverter by switching ON the utility circuit breaker located in the utility
service entrance.
Press the ON/OFF button once. The inverter will sound an audible chirp.
The inverter starts charging the batteries in the Bulk mode, indicated by the CHARGER LED
illuminating a solid orange.
Using a true rms AC voltmeter, check the output voltage of the inverter. This voltage can be
checked at either the AC terminal block or in the sub-panel (between the HOT and NEUTRAL
lines). The voltage should be 120 VAC (230 VAC for E models, 220 VAC for W models, or
105 VAC for J and K models).
Switch the AC disconnect circuit breaker to OFF. The inverter will go into the inverter mode (if
a sufficient load is applied to the AC output while in the search mode). The green INVERTER
MODE LED will light solid indicating the inverter is active. The voltage on the AC output of the
inverter will remain the same as above (± 5% maximum).
NOTE: If the inverter is in the SEARCH MODE (INVERTER MODE LED flashing) and a sufficient
load is not available to bring the inverter up to full voltage, turn the SEARCH MODE WATTS
potentiometer fully CCW to defeat the search function.
Reapply the AC power by switching the AC disconnect to ON. Allow the batteries to fully
recharge.

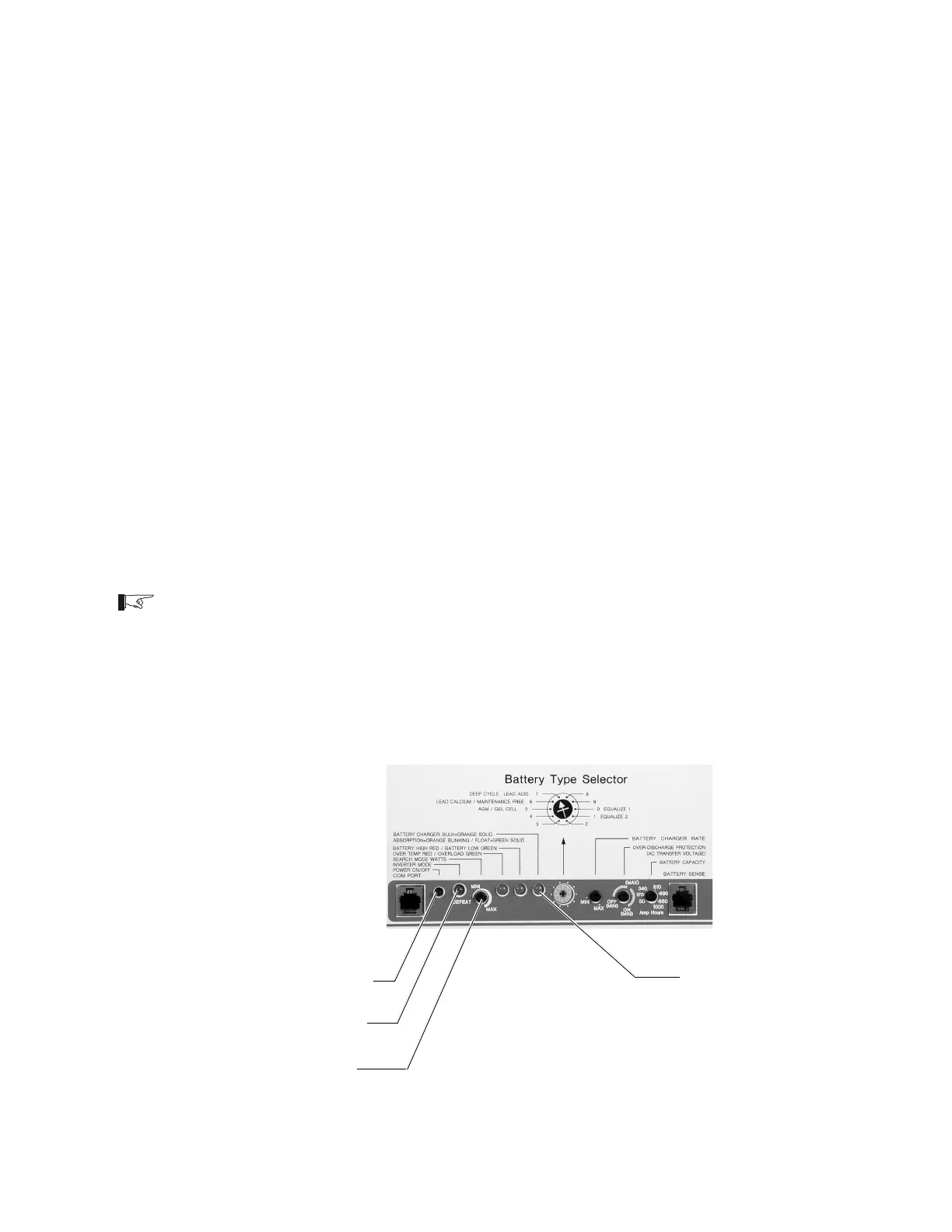

POWER ON/OFF Switch
INVERTER MODE LED
CHARGER LED
SEARCH MODE
WATTS Potentiometer
Figure 44
Start-up Items
