1.0 INTRODUCTION
©2000 Xantrex Technology Inc.

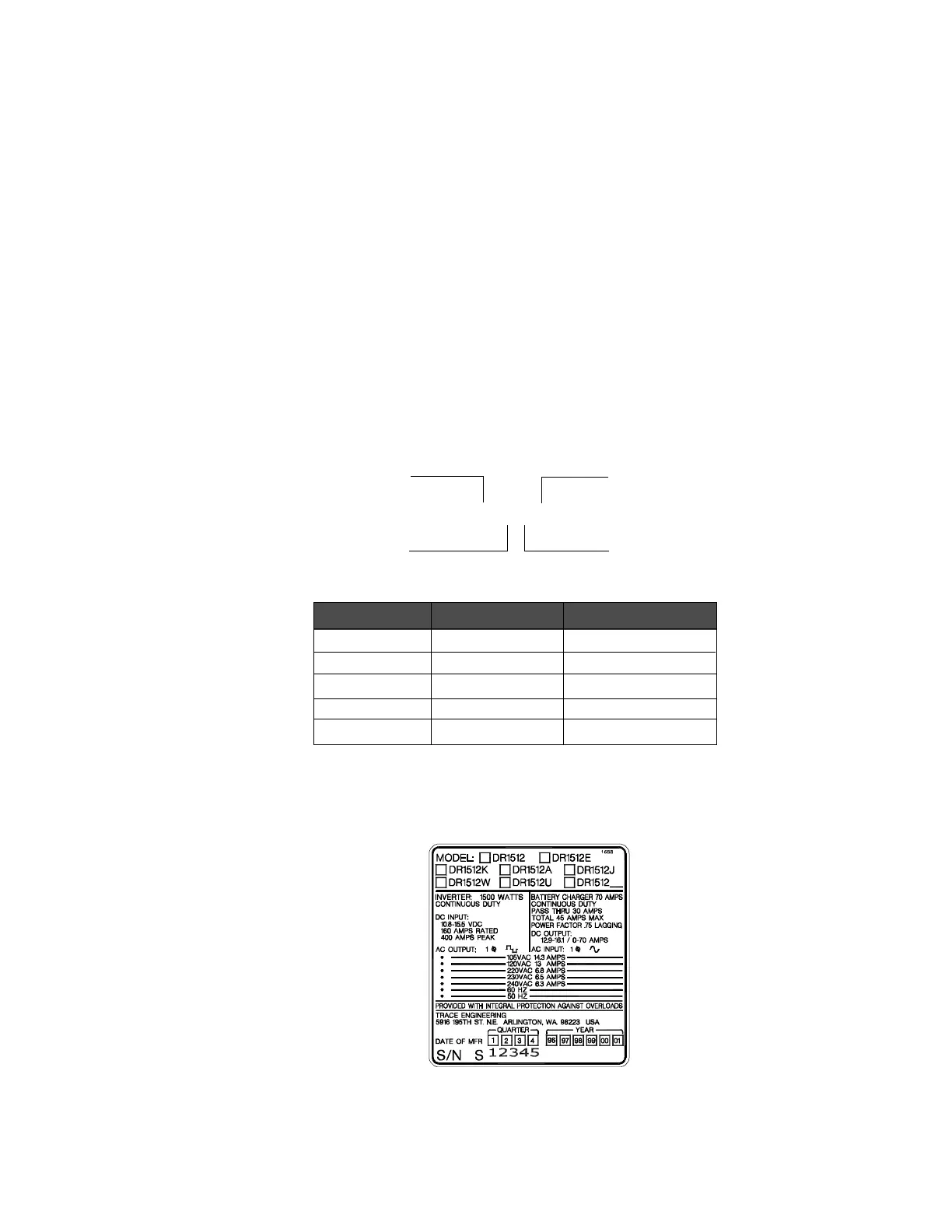

Figure 2
Product Identification
Figure 3
Model/Serial Number Sticker
Model Identification and Numbering Conventions
The DR Series inverter/charger is identified by the model/serial number label located next to the
AC access cover. All the necessary information is provided on the label such as AC output voltage,
power and frequency (punch holes).
The inverter also has a letter designator followed by 4 or 5 digits (depending on revision). The
model number describes the type of inverter, the output specifications, the required battery voltage
and the output voltage and frequency.
DR indicates the type of inverter/charger - DR Series.
15 the first two digits of the numerical designator indicate the inverters output power - 1500
Watts.
12 the second two digits indicate the required nominal battery bank voltage - 12 VDC.
E the letter suffix code indicates the output voltage and frequency of the inverter - 230
VAC/50 Hz.
Example: DR 1512 E
Product Family
Output Power
Country Code
Battery Voltage
Letter Suffix Output Voltage Output Frequency
(no letter) 120 VAC 60 Hz
E 230 VAC 50 Hz
J 105 VAC 50 Hz
K 105 VAC 60 Hz
W 220 VAC 60 Hz
