Installing the Truecharge 2 Battery Charger
Step 4: Installing AC Wiring
Before connecting AC wiring, make sure the AC source circuit is protected
by a breaker switch of the correct size and type, to comply with the
electrical code for your location and application. The current rating of the
input breaker should not be larger than 20 A for 120 Vac applications and
16 A for 230 Vac applications, but may be required to be lower depending
on the wire size used.
1. Plan the route that the AC supply wiring will follow from the source
(usually an AC distribution panel) to the Truecharge2 Battery Charger.
2. Measure and cut the required length of three-conductor (L, N,
GND)
cable allowing some extra length for connections and providing some
slack.
3. Route the AC supply wiring from the charger (in its mounted position)
to the source.
4. Unscrew the wiring compartment cover from the left rear of the
Truecharge2 Battery Charger to expose the AC wiring access hole and
charger’s AC pigtail leads.
5. Carefully remove 50 – 75 mm (2 – 3 in.) of the outer jacket from the
AC supply wiring, being careful not to cut or nick the insulation on the
individual conductors.
6. Extend the charger’s AC (L, N,
GND) pigtail leads (wires) from the AC
wiring compartment of the charger.
ELECTRICAL SHOCK HAZARD
Disconnect the AC source by turning off the breaker feeding the circuit,
unplugging from shore power and disconnecting any other power sources
(such as a generator).
Failure to follow these instructions will result in death or serious
injury.

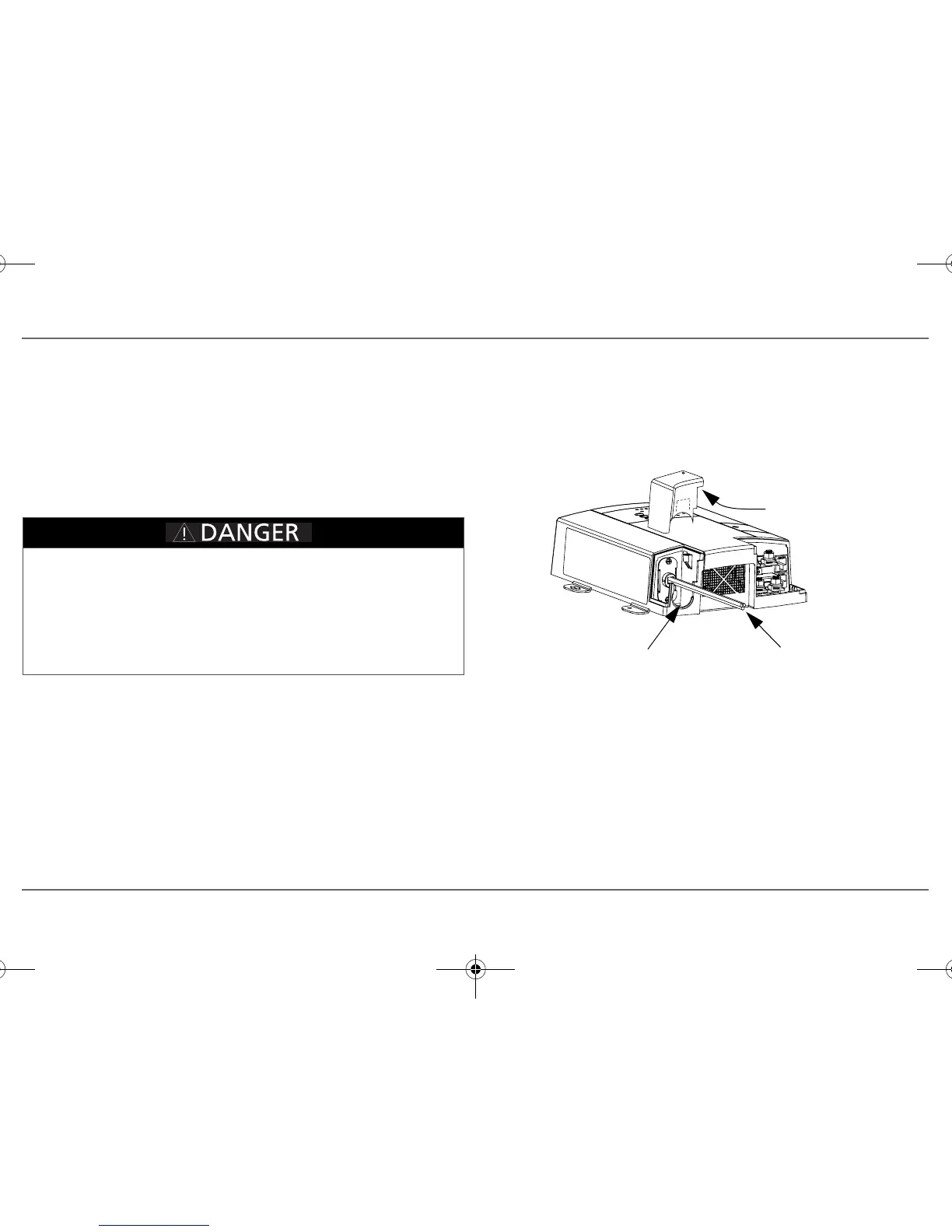

wiring compartment
cover
AC wiring access hole
AC pigtail leads
