20 Truecharge2 Series Battery Charger Owner’s Guide
Installing the Truecharge 2 Battery Charger
NOTE: If you are using more than one battery, you will need to connect
the negative cable from each of the batteries to the negative ground bar
or bus. The negative ground bar or bus will then have a single negative
cable connecting to the negative charger terminal.
14. Secure cables in place using tie-wraps or cable straps according to
electrical codes.

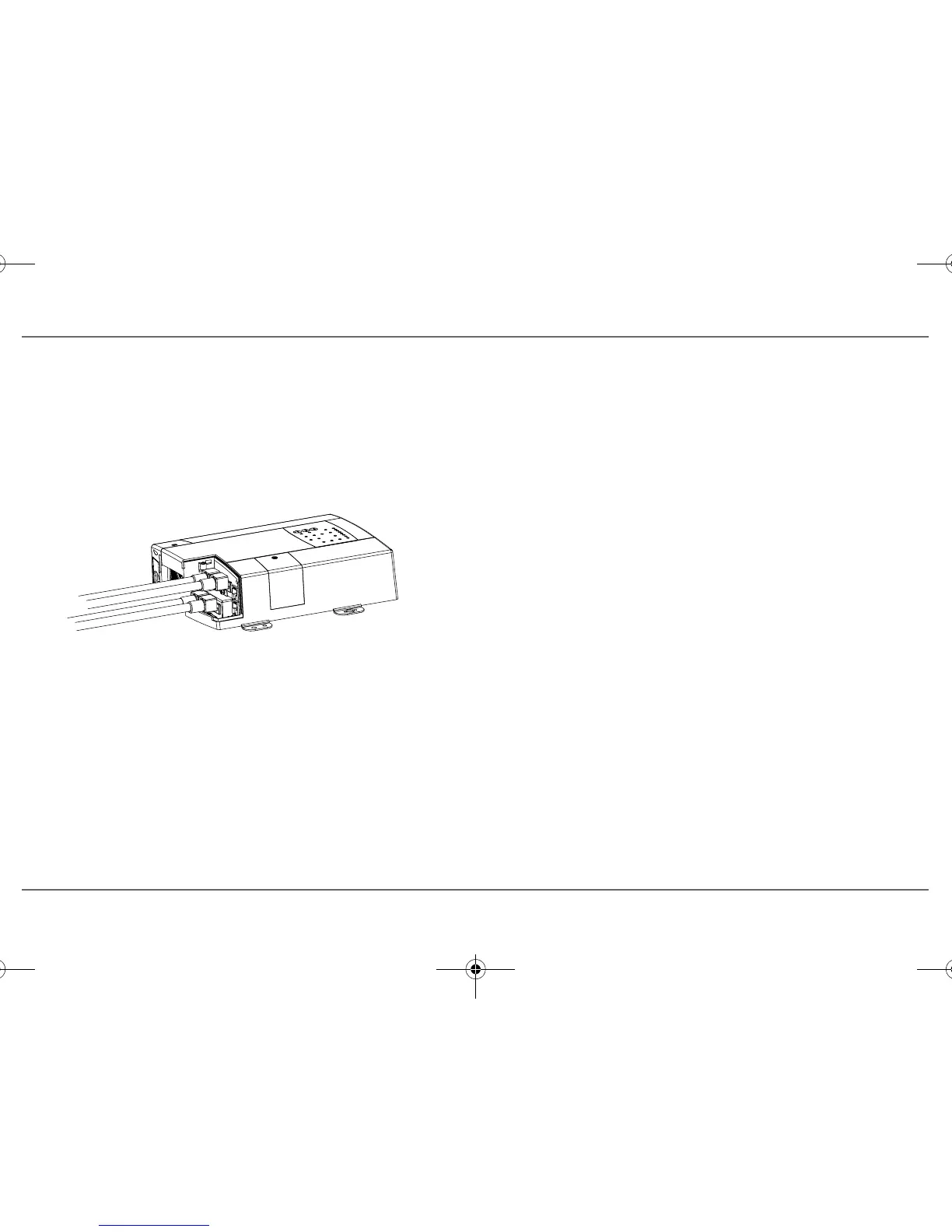

15. Slide the rubber boots to cover the DC terminals.
16. If available, route the optional battery temperature sensor (BTS) from
the battery (one which is located in the warmest ambient temperature)
to the charger location.
17. Proceed to “Step 4: Installing AC Wiring”.
TC2 204060 Series BattChg Owners Guide.book Page 20 Friday, July 8, 2011 11:44 AM

Xantrex truecharge 2 series Specifications

General

Input Voltage	90-265 VAC
Input Frequency	47-63 Hz
Number of Banks	3
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	12 VDC or 24 VDC
Output Current	20A, 40A, or 60A
Battery Types	Flooded, Gel, AGM
Charging Stages	3-stage (Bulk, Absorption, Float)
Protection Features	Overvoltage, Overcurrent, Short Circuit, Reverse Polarity, Over Temperature
Operating Temperature	-20°C to +50°C
