22 Truecharge2 Series Battery Charger Owner’s Guide
Installing the Truecharge 2 Battery Charger

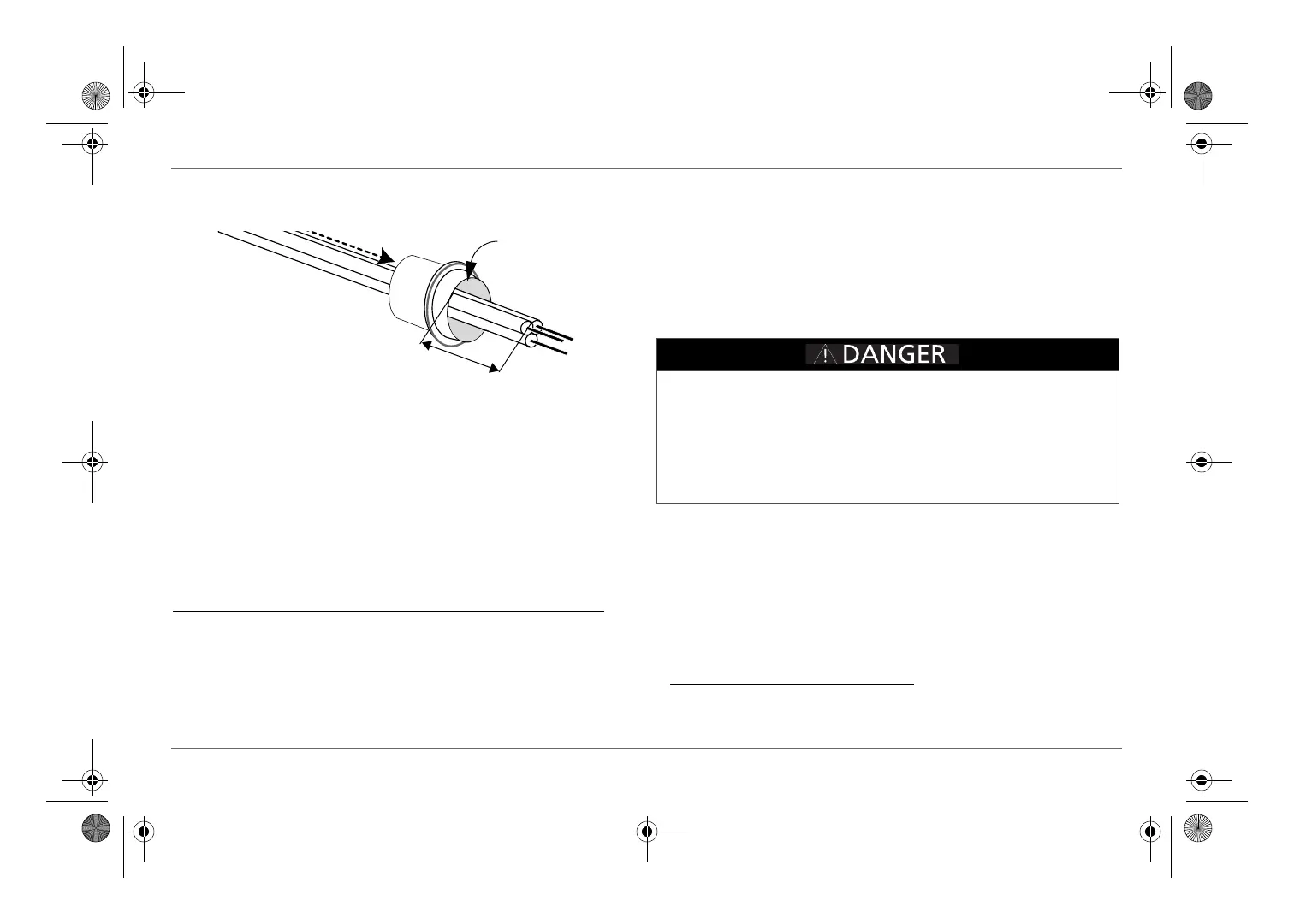

7. Feed the AC supply wiring through the wider end of strain relief and
out the tapered end.
8. Slide the strain relief on the jacket of the wiring (not on the individual
conductors) approximately 25 mm (1 in.) from the end of the jacket.
9. Connect the AC supply wires to the Truecharge2 Battery Charger
pigtail wires.
NOTE: Connect the line conductor to the AC line, the neutral to the AC
neutral, and the ground to the AC ground. The wires are color coded as
follows:
To connect AC wires with the provided crimp-on butt-splice connector:
a) Make the connections using the provided crimp-on connectors
1
or with other approved connectors required by your code, and
suitable for your installation.
For example, the ABYC Standards and Recommended Practices for Small
Craft prohibit twist-on connectors for AC connections on a boat. For other
types of installation, refer to your applicable code.
b) Using a wire stripper, carefully strip 8 mm (5/16 in.) from the
ends of the two wires being connected.
Conductor Charger Pigtail
Color Code
AC Supply Wire
Color Code
Line Black Black (or brown)
Neutral White White (or blue)
Ground Green with yellow stripe Green with yellow stripe
tapered end
of strain relief
AC supply wiring
2
5
m
m
(
1
i
n
.
)
1.Provided butt-splice connector (catalog number BNYF2) is available
from www.ksterminals.com.
FIRE HAZARD
Improperly connected wires may overheat. Exercise care when using any
crimp connector, use the tool specified by the crimp connector
manufacturer, and follow all crimping instructions.
Failure to follow these instructions will result in death or serious
injury.
TC2 204060 Series BattChg Owners Guide.book Page 22 Friday, July 8, 2011 11:44 AM
