Truecharge 2 Battery Charger Features
This section describes the different parts of the Truecharge2 Battery
Charger.
Front Panel

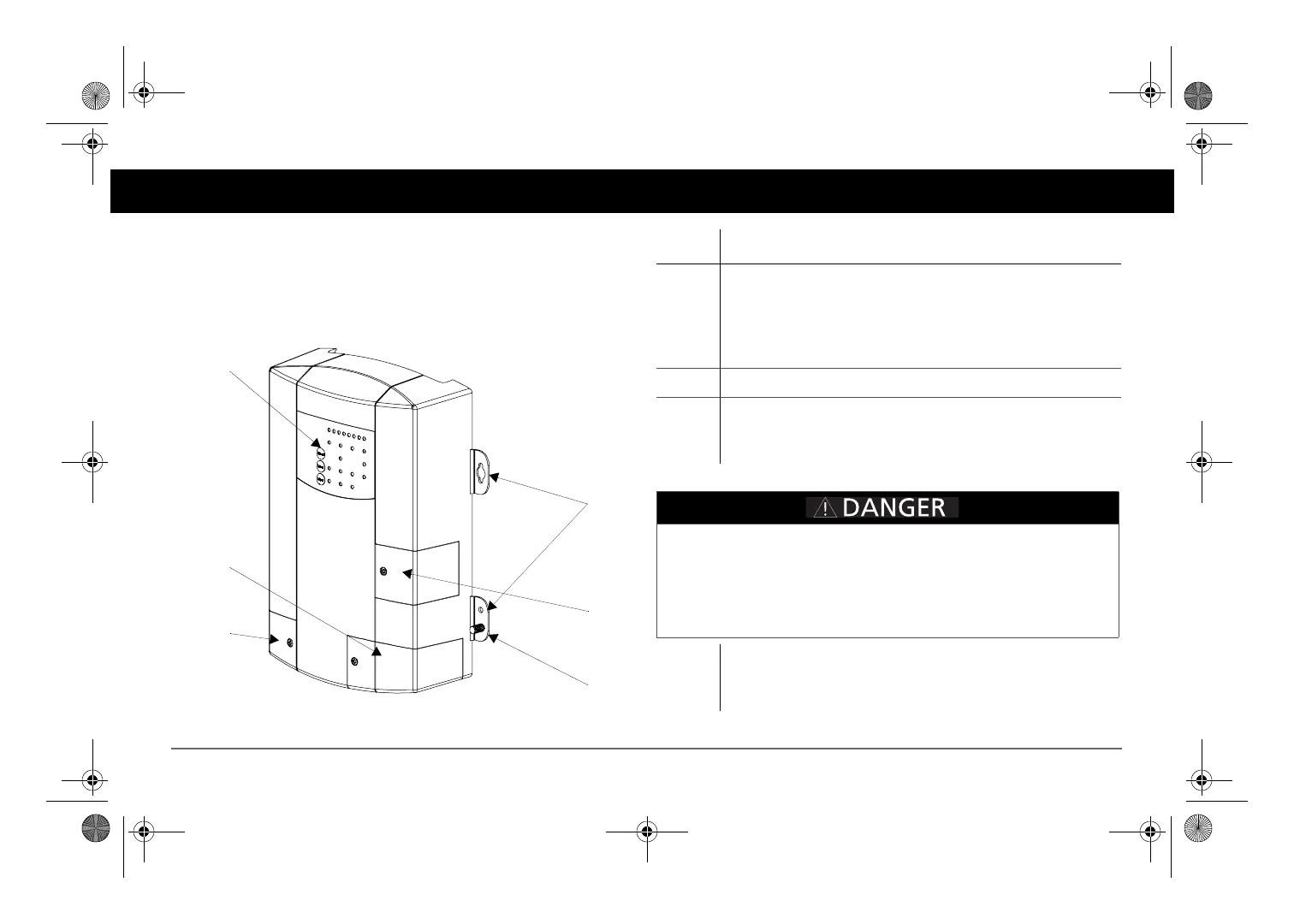

Figure 1
Truecharge2 Battery Charger Front Panel
1
2
6
4
3
5
Item Description
1 Onboard control and status display panel or simply
onboard display (see “Onboard Control and Status Display
Panel” on page 5 for more information) for controlling the
Truecharge2 Battery Charger settings and for monitoring
charger status and charging current.
2 Mounting flanges are used to permanently install the product.
3 DC wiring compartment cover protects the DC terminals, as
well as the communication and BTS ports. Remove and
replace when installing cables.
ELECTRICAL SHOCK HAZARD
Disconnect the batteries and AC power before opening the fuse access
panel.
Failure to follow these instructions will result in death or serious
injury.
4 Fuse access panel cover provides access to the DC fuse in the
event of an accidental reverse battery polarity installation.
Remove and replace the cover when replacing a fuse or fuses.
