Features and Specifications
Rear Panel Connectors and Outputs
14 Operating Manual for XT Series Power Supply
Figure 1.2 Remote Programming Interface Indicators (For units with a digital
programming interface installed.)
Rear Panel Connectors and Outputs

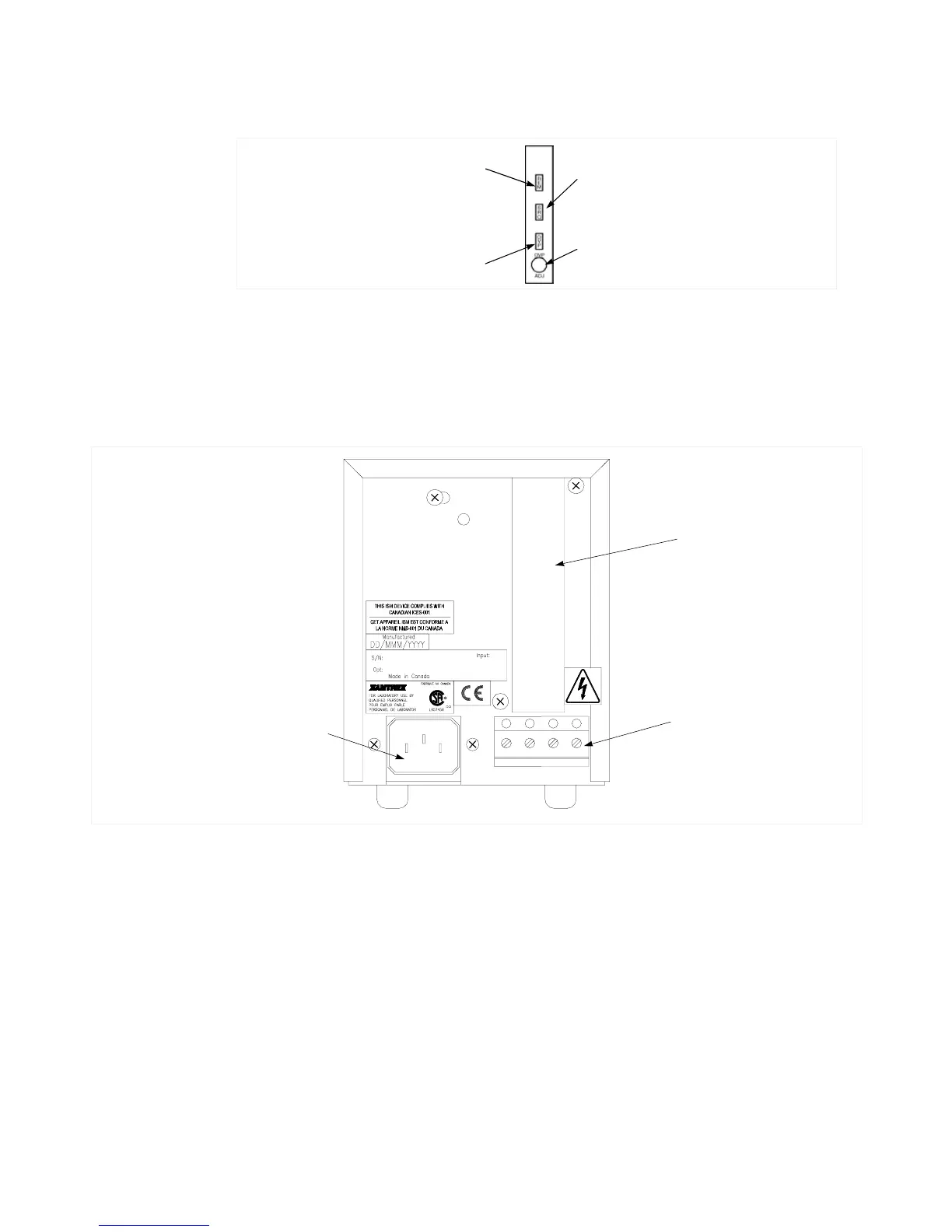

See Figure 1.3 for the connectors and outputs available at the rear panel.
Figure 1.3 Rear Panel.
Remote Programming LED (REM)
Shutdown LED (SRQ)
OVP Shutdown (OVP)
OVP Adjust Potentiometer (OVP ADJ
AC Input Connector
Blank Subplate
(Replaced if a
programming option
is installed.)
Output Terminal Block
